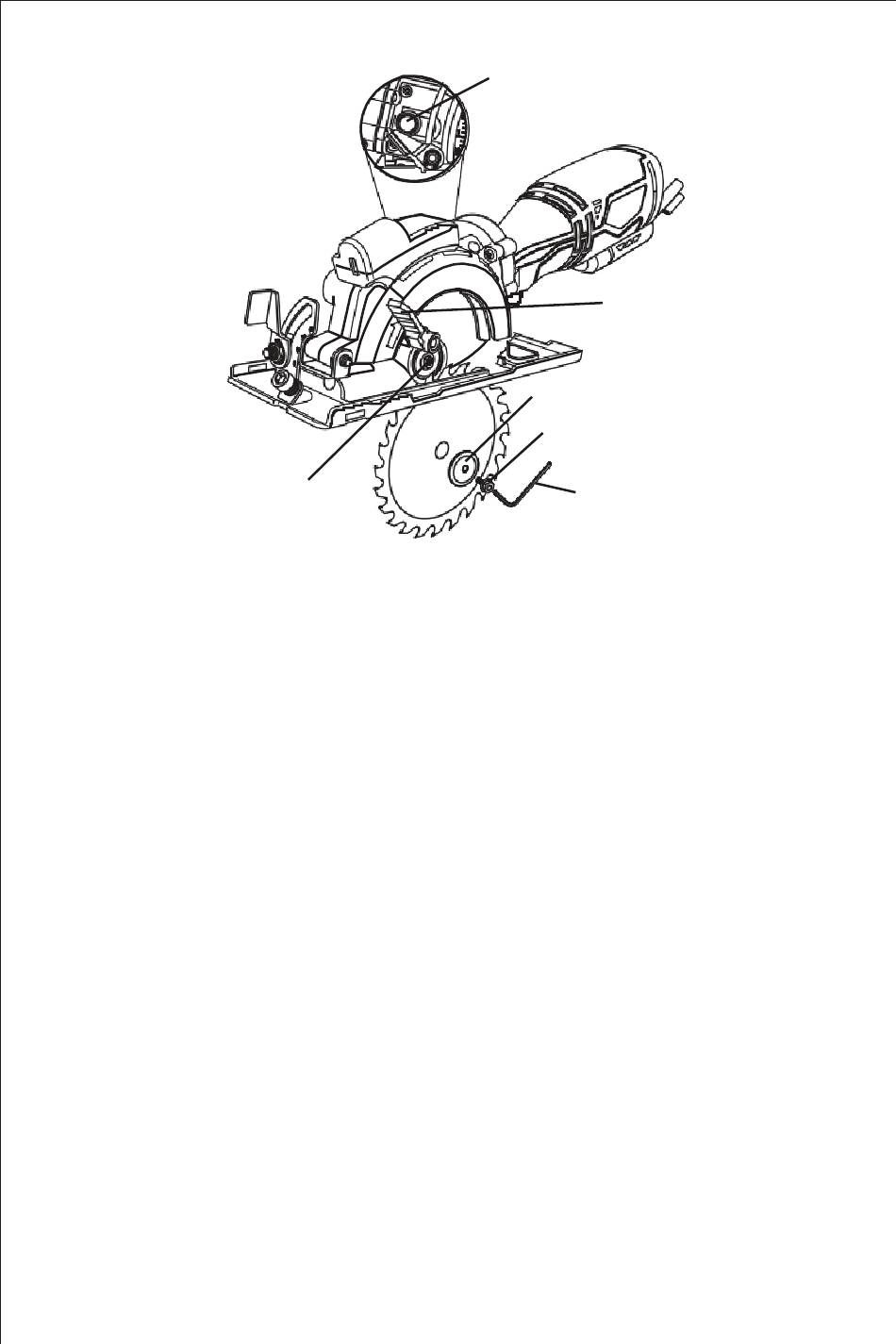

Fig. 1
5. To reinstall a blade, reverse the above procedure.
NOTES:
a)Make sure the blade teeth are pointing forward at the bottom of the blade.
b)When re-installing the outer flange nut make sure the flats of the flange nut fit
over the flats on the spindle.
c)Turn the blade screw counter clockwise to thread it into the spindle. Make sure
the screw is not cross threaded.
6. When the new blade, outer flange and blade screw are in place, press the
spindle locking button and fully tighten the blade screw.
7. When the blade screw is fully tightened, carefully rotate the blade to ensure it
does not wobble. If it wobbles, remove and reinstall the blade making sure it is
installed correctly.

SETTING THE CUTTING DEPTH

The cutting depth of the blade should be set to suit the thickness of the material
being cut. The cutting depth should be approximately 1/8"
(3 mm) greater than the thickness of the material being cut.
1.Rotate the cutting depth locking lever (1) counter clockwise (Fig. 2).
2.Lower the sole plate to the desired depth. NOTE: Align the desired depth on
the depth control scale (2) with the alignment mark (3) on the saw housing.
