1. Loosen the bevel locking lever (1) and rotate the sole plate toward the 0°
mark as far as it will go and tighten the bevel angle locking lever (Fig 4).
2. Make a test cut on a scrap workpiece and check the cut with a carpenters'
square to verify that the saw is cutting at 90°.
3. If the test cut is not at 90°, turn the zero adjustment lock nut (2) counter
clockwise approximately ¼ turn using a 7mm wrench.
4. Use a #2 screwdriver to turn the zero bevel adjusting screw (3) in or out
until the saw is cutting at 90° when the sole plate is contacting the adjusting
screw.
5. Tighten the lock nut while using the screwdriver to prevent the adjusting
screw from turning.
NOTE: When the final adjustment is made and the locknut tightened, recheck
the cutting angle on a scrap workpiece.
1
3
2

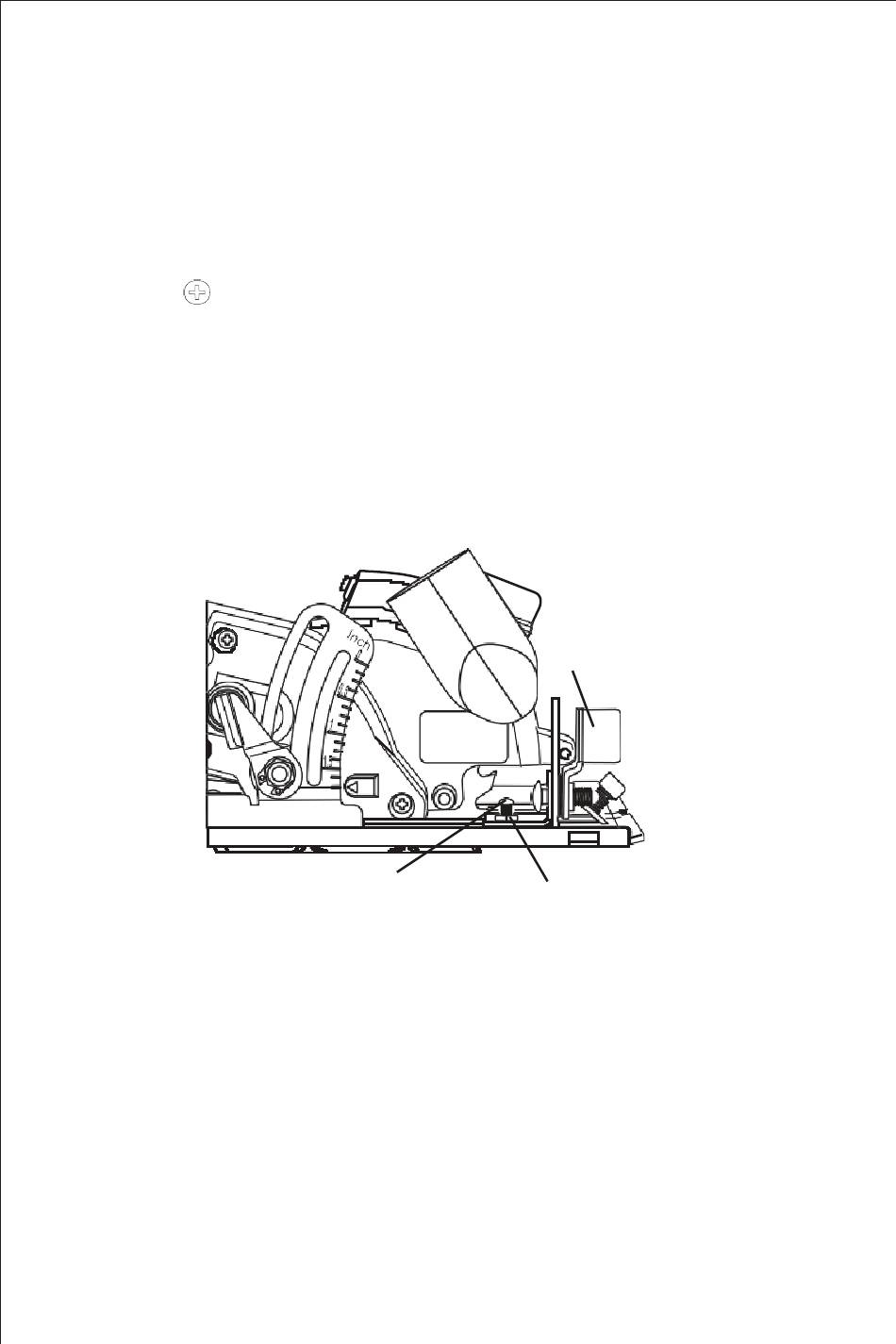

Fig. 4
INSTALLING THE EDGE GUIDE
The edge guide can be used to facilitate accurate cutting when ripping pieces
up to 5" wide.
1. Loosen the edge guide locking screw (1) counter clockwise approximately 2
turns using the 5mm hex key (Fig. 5).
2. Slide the edge guide mounting rod (2) into the mounting slots (3) in the sole
plate.
3. Align the desired cutting width on the scale
