Tack life TCS115A Bedienungsanleitung Seite 18

1
2
3

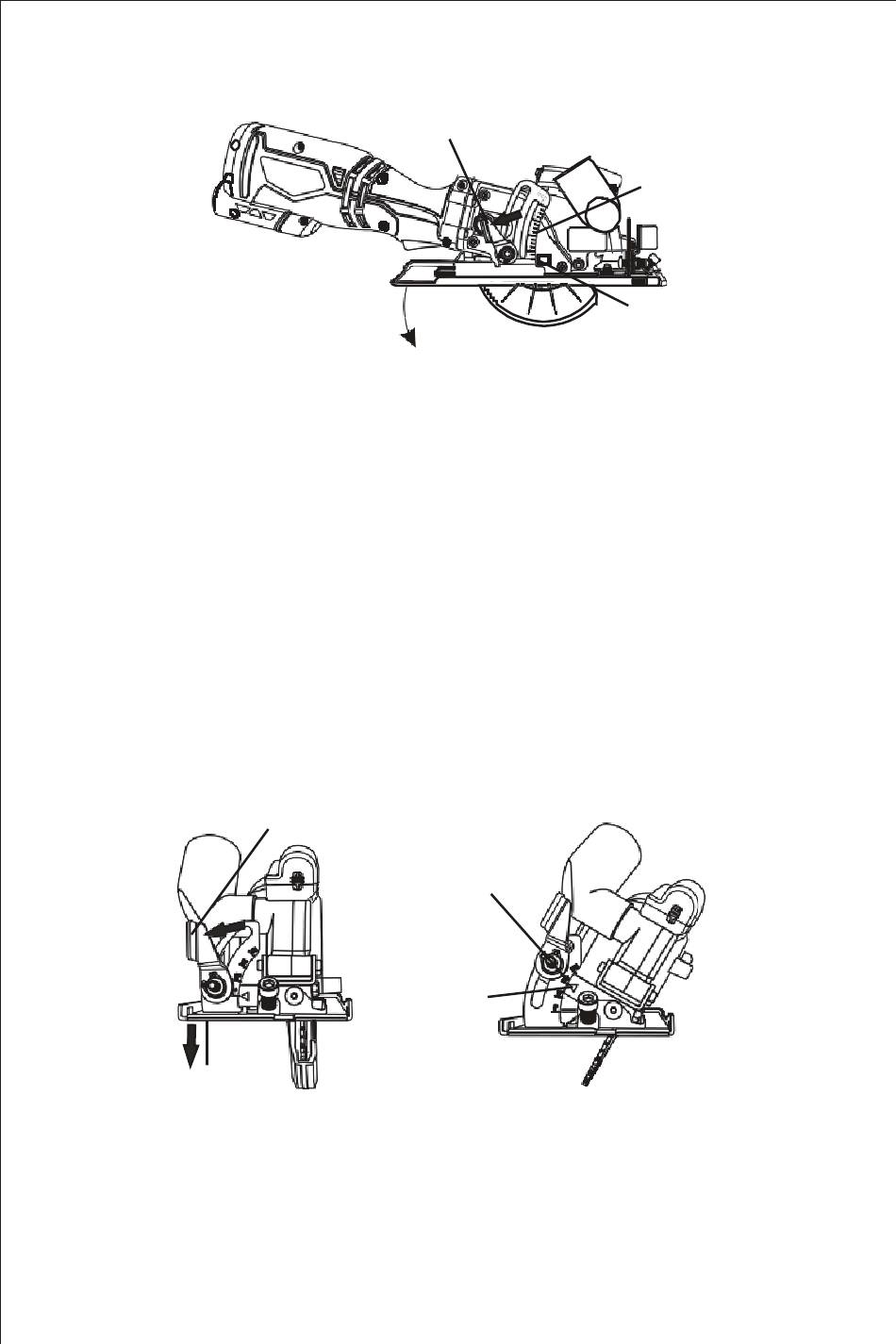

Fig. 2
ASSEMBLY AND OPERATING
SETTING THE BEVEL CUTTING ANGLE
The sole plate can be set to perform bevel cuts up to 45°.
1. Rotate the bevel angle locking lever (1) counter clockwise (Fig. 3).
2. Rotate the sole plate (2) to the desired angle.
NOTES:
a)Align the desired angle on the bevel scale
(3)with the alignment mark (4) on the sole plate housing.
b)Always make a test cut on a scrap workpiece and check to make sure the
bevel cut is correct.
1
3
4
2
Fig. 3
SETTING THE "ZERO" BEVEL ANGLE FOR ACCURATE 90° CUTTING
Before making any cuts, it is important to make a test cut on a scrap workpiece
and adjust the bevel angle stop if necessary to ensure that the "zero" bevel
adjustment provides accurate 90° cuts.
15
