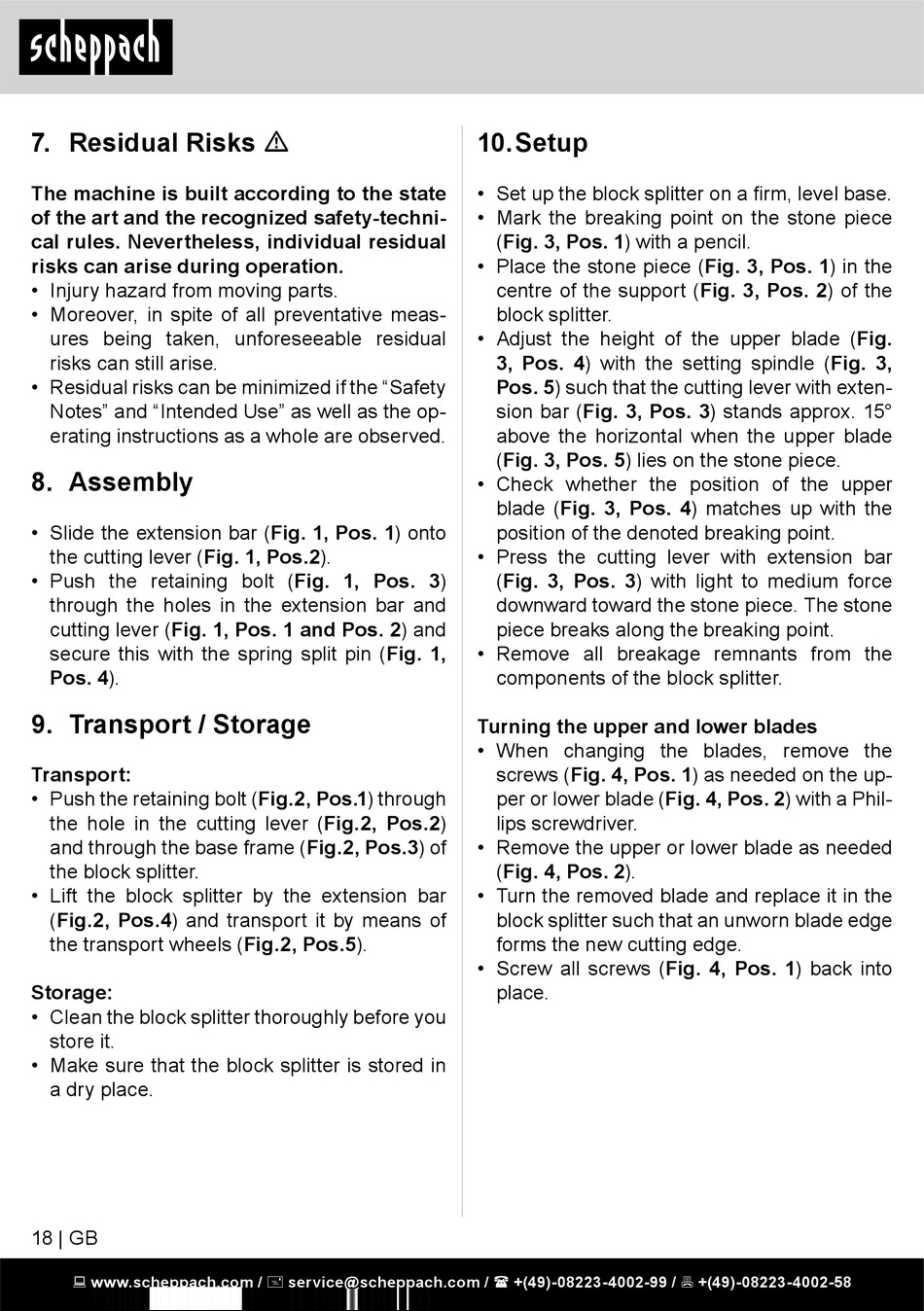

7. Residual Risks m
The machine is built according to the state
of the art and the recognized safety-techni-
cal rules. Nevertheless, individual residual
risks can arise during operation.
• Injury hazard from moving parts.
• Moreover, in spite of all preventative meas-
ures being taken, unforeseeable residual
risks can still arise.
• Residual risks can be minimized if the "Safety
Notes" and "Intended Use" as well as the op-
erating instructions as a whole are observed.

8. Assembly

• Slide the extension bar (Fig. 1, Pos. 1) onto
the cutting lever (Fig. 1, Pos.2).
• Push the retaining bolt (Fig. 1, Pos. 3)
through the holes in the extension bar and
cutting lever (Fig. 1, Pos. 1 and Pos. 2) and
secure this with the spring split pin (Fig. 1,
Pos. 4).

9. Transport / Storage

Transport:
• Push the retaining bolt (Fig.2, Pos.1) through
the hole in the cutting lever (Fig.2, Pos.2)
and through the base frame (Fig.2, Pos.3) of
the block splitter.
• Lift the block splitter by the extension bar
(Fig.2, Pos.4) and transport it by means of
the transport wheels (Fig.2, Pos.5).
Storage:
• Clean the block splitter thoroughly before you
store it.
• Make sure that the block splitter is stored in
a dry place.
18 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58

10. Setup

• Set up the block splitter on a firm, level base.
• Mark the breaking point on the stone piece
(Fig. 3, Pos. 1) with a pencil.
• Place the stone piece (Fig. 3, Pos. 1) in the
centre of the support (Fig. 3, Pos. 2) of the
block splitter.
• Adjust the height of the upper blade (Fig.
3, Pos. 4) with the setting spindle (Fig. 3,
Pos. 5) such that the cutting lever with exten-
sion bar (Fig. 3, Pos. 3) stands approx. 15°
above the horizontal when the upper blade
(Fig. 3, Pos. 5) lies on the stone piece.
• Check whether the position of the upper
blade (Fig. 3, Pos. 4) matches up with the
position of the denoted breaking point.
• Press the cutting lever with extension bar
(Fig. 3, Pos. 3) with light to medium force
downward toward the stone piece. The stone
piece breaks along the breaking point.
• Remove all breakage remnants from the
components of the block splitter.
Turning the upper and lower blades
• When changing the blades, remove the
screws (Fig. 4, Pos. 1) as needed on the up-
per or lower blade (Fig. 4, Pos. 2) with a Phil-
lips screwdriver.
• Remove the upper or lower blade as needed
(Fig. 4, Pos. 2).
• Turn the removed blade and replace it in the
block splitter such that an unworn blade edge
forms the new cutting edge.
• Screw all screws (Fig. 4, Pos. 1) back into
place.
