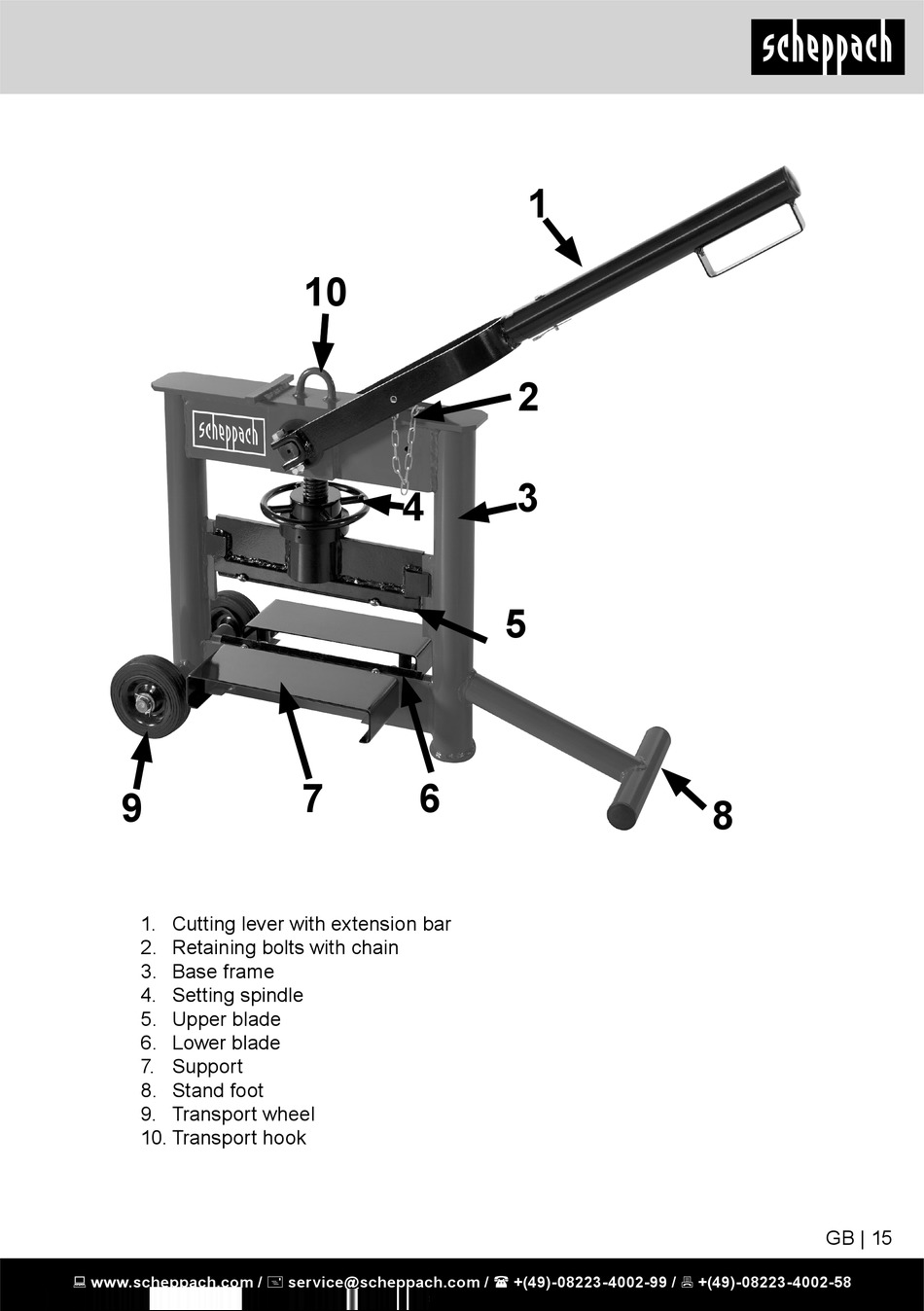

1. Cutting lever with extension bar
2. Retaining bolts with chain
3. Base frame
4. Setting spindle
5. Upper blade
6. Lower blade
7. Support
8. Stand foot
9. Transport wheel
10. Transport hook
