5.8.2

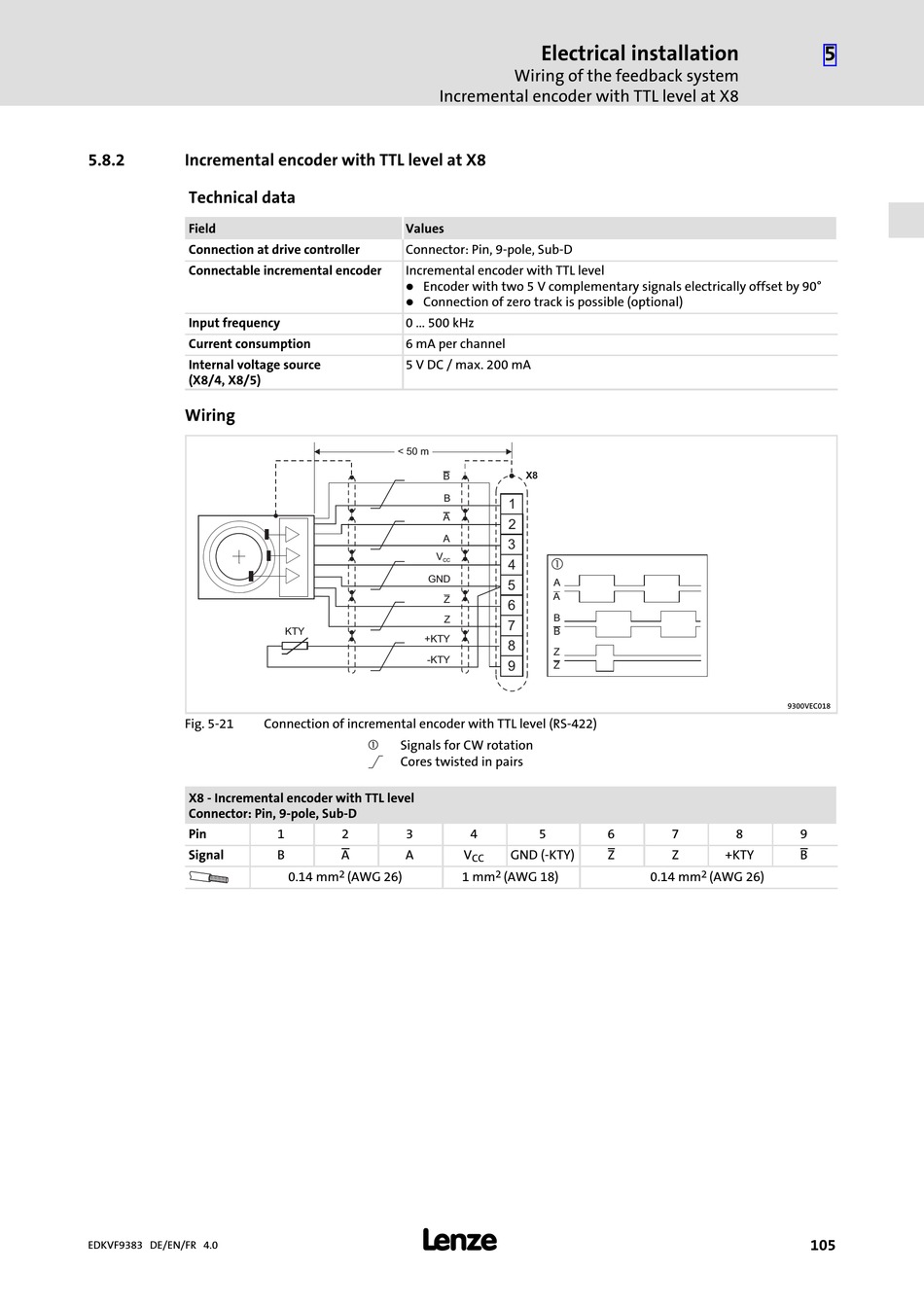

Incremental encoder with TTL level at X8

Technical data

Field
Connection at drive controller
Connectable incremental encoder
Input frequency
Current consumption
Internal voltage source
(X8/4, X8/5)
Wiring
Fig. 5−21
X8 − Incremental encoder with TTL level
Connector: Pin, 9−pole, Sub−D
Pin
Signal
EDKVF9383 DE/EN/FR 4.0
Values
Connector: Pin, 9−pole, Sub−D
Incremental encoder with TTL level
l
Encoder with two 5 V complementary signals electrically offset by 90°
l
Connection of zero track is possible (optional)
0 ... 500 kHz
6 mA per channel
5 V DC / max. 200 mA
< 50 m
V
GND
KTY
+KTY
-KTY
Connection of incremental encoder with TTL level (RS−422)

Signals for CW rotation
Cores twisted in pairs
1 2 3
B A A
2
0.14 mm (AWG 26)
l
Electrical installation
Wiring of the feedback system
Incremental encoder with TTL level at X8
X8
B
B
1
A
2
A
3

CC
4
A
5
A
Z
6
B
Z
7
B
8
Z
9
Z
4 5 6
V GND (−KTY) Z
CC
2
1 mm (AWG 18)
5
9300VEC018
7 8 9
Z +KTY B
2
0.14 mm (AWG 26)
