Electrical installation
Turn the top part of the sensor a quarter turn anticlockwise and remove it.
1.
Loosen the clamping screw from the M12 threaded connector and feed through the meas‐
2.
uring line.

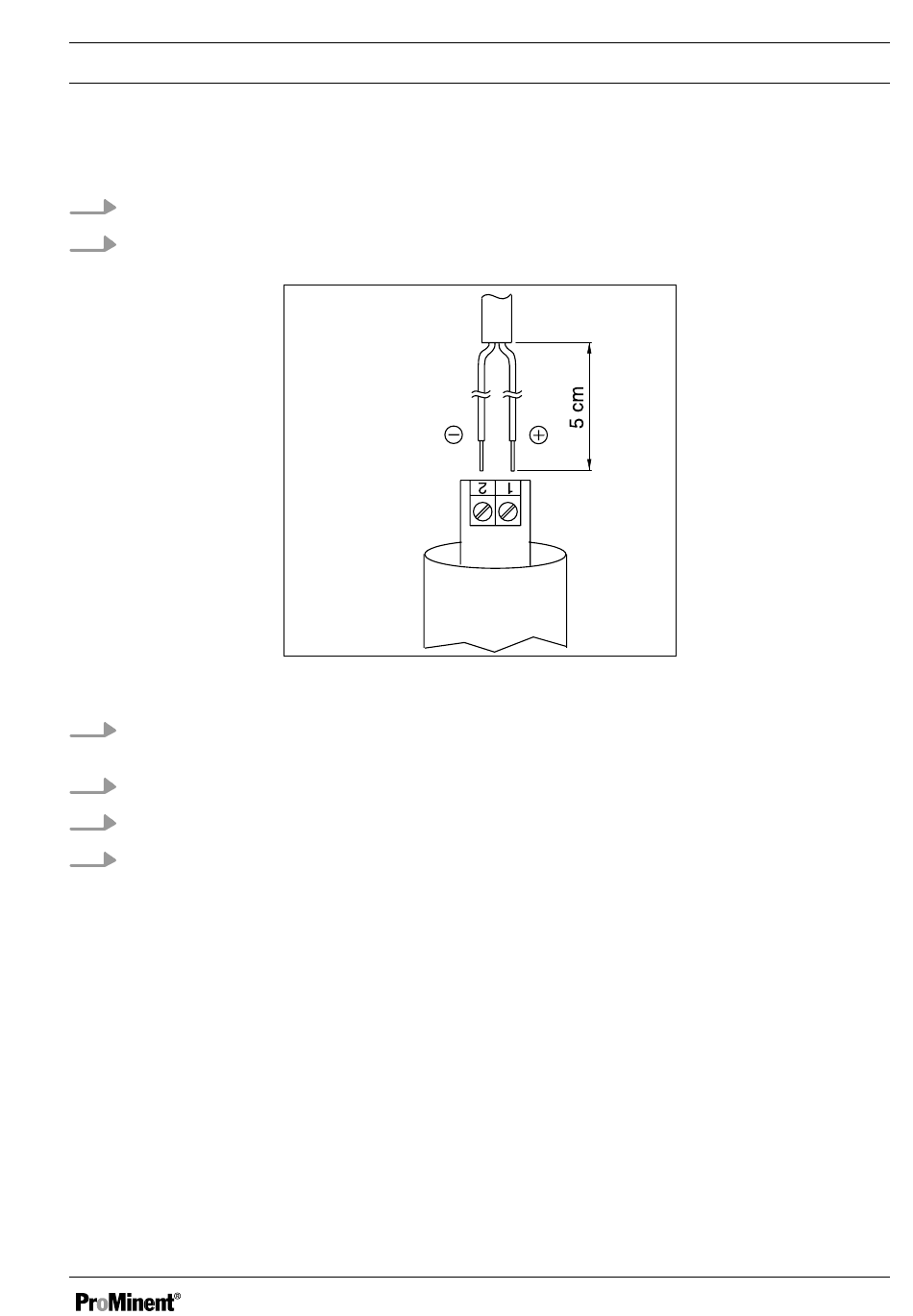

Fig. 3: 2-wire connector.
3. Strip the cable ends, fit the cable ends with cable end sleeves (⌀ max = 0.5 mm
nect the cable ends to the 2-wire connector: 1 = plus, 2 = minus.
Insert approx. 5 cm of the measuring line into the top part of the sensor.
4.
Tighten the clamping screw on the threaded connector.
5.
Push the top part of the sensor fully into the sensor shaft and tighten the top part clockwise
6.
up to the stop.
Installation
A0102
2 ) and con‐
