CLADDING ASSEMBLY

FORMA
(the TWIN model comes pre-assembled)

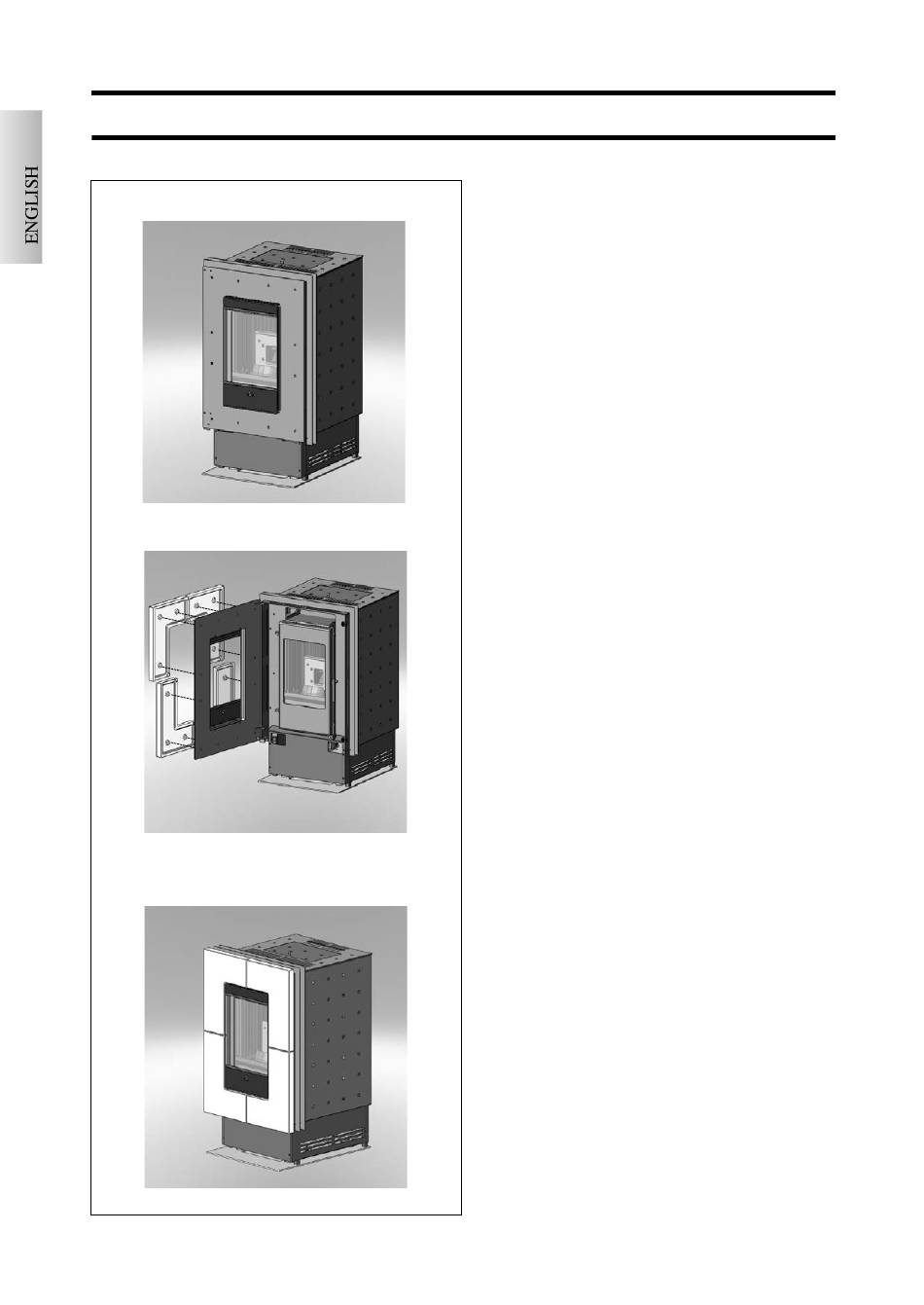

Fig. 1
Hardware included:
12 washers M4 x 8
Fig. 1
This figure represents the stove after being unpacked and
placed in the room
Fig. 2 / 3 - Mounting the front covering
Open the external door and mount the four ceramic front
panels, following the diagram in fig. 3 (A- B), making
sure to match up the holes on the door with the threaded
sleeves on the back of the ceramic panels.
Use the washers supplied (M4x8), tightening them on the
rear of the external door.
Fig. 2
ATTENTION:
The front panels are equal in pairs (A-B).
Fig. 3
A
B
B
A
