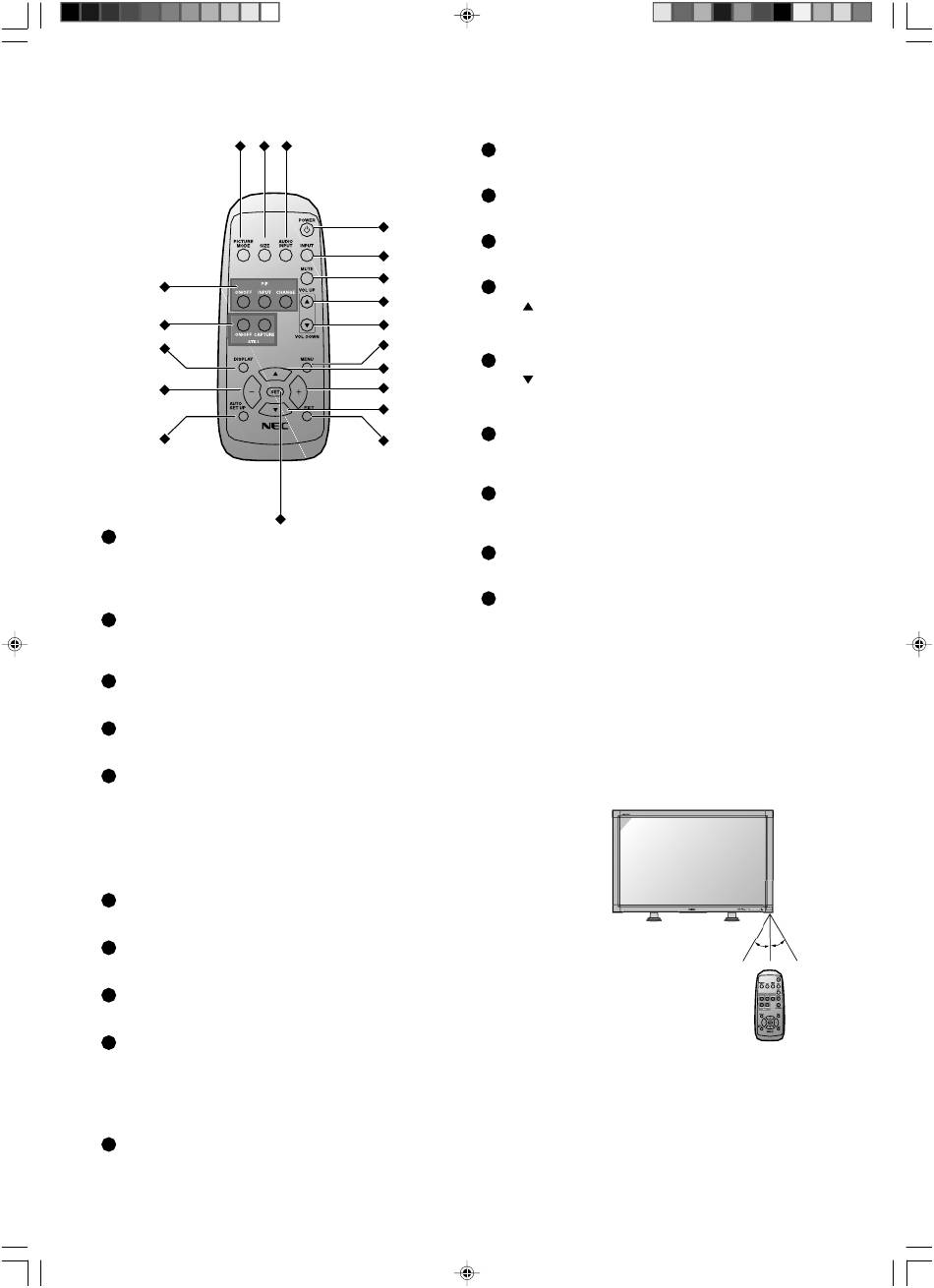

Wireless Remote Control

9
10
11
16
12
1
POWER button
Switches the power on/off.
* If Power Indicator is not glowing, then none of the controls will
work.
2
INPUT button
Selects from input signal, [RGB1], [RGB2], [RGB3], [DVD/HD],
[VIDEO].
3
AUDIO INPUT button
Selects from input audio signal, [AUDIO1], [AUDIO2], [AUDIO3].
4
SIZE button
Selects picture size, [FULL], [NORMAL], [WIDE]. See page 13.
5
PICTURE MODE button
Selects from picture mode, [HIBRIGHT], [STANDARD], [sRGB],
[CINEMA].
HIBRIGHT: for moving images
STANDARD: for images
sRGB: for text based images
CINEMA: for movies. See page 13.
6
MUTE button
To switch the mute function on/off.
7
VOLUME UP button
Increase the audio output level.
8
VOLUME DOWN button
Decrease the audio output level.
9
PIP (Picture In Picture) button
ON/OFF button: Toggle switches between PIP-ON/
POP-ON/OFF.
INPUT button: Select the "picture in picture" input signal.
CHANGE button: Replaces to the main picture and sub
picture.
10
STILL button
ON/OFF button: To switch the still picture mode on/off.
CAPTURE button: Capture the new picture.
01_English
5 4 3
1
2
6
7
8
13
14
17
15
REMOTE CONTROLLER RU-M104
19
18
4
11
DISPLAY button
To switch the OSM information on/off. See page 13.
12 AUTO SETUP button
To enter the auto setup menu. See page 16.
13
MENU button
To switch the menu mode on/off.
14
UP button
Acts as button to move the highlighted area up to select the
adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves up.
15
DOWN button
Acts as button to move the highlighted area down to select the
adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves down.
16
MINUS button decrease
Acts as (-) button to decrease the adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves left.
17
PLUS button increase
Acts as (+) button to increase the adjustment with OSM menu.
Small screen which adjusted "PIP" mode moves right.
18
SET button
Acts as SET button with OSM menu.
19
EXIT button
Turn to previous menu with OSM menu.
Operating Range for the Remote
Control
Point the top of the remote control toward the LCD monitor's remote
sensor during button operation.
Use the remote control within a distance of about 7 m from the front
of the LCD monitor's remote control sensor and at a horizontal and
vertical angle of within 30° within a distance of about 3 m.

Handling the remote control

* Do not subject to strong shock.
* Do not allow water or other liquid to splash the remote control.
If the remote control gets wet, wipe it dry immediately.
* Avoid exposure to heat and steam.
Caution: Important the remote control system may not function
when direct sunlight or strong illumination strikes the
remote control sensor of the LCD monitor, or when there
is an obstacle in the path.
English-4
