Connecting a Stereo Amplifier

You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier user's manual for more information.

Connect the LCD Monitor to a Stereo Amplifier

• Turn on the LCD monitor and the amplifier only after all connections have been made.
• Use an RCA cable to connect the AUDIO OUT connector (RCA) on the LCD monitor and the audio input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN is used for audio input.
• The AUDIO OUT jack loops through the AUDIO IN 3 only.

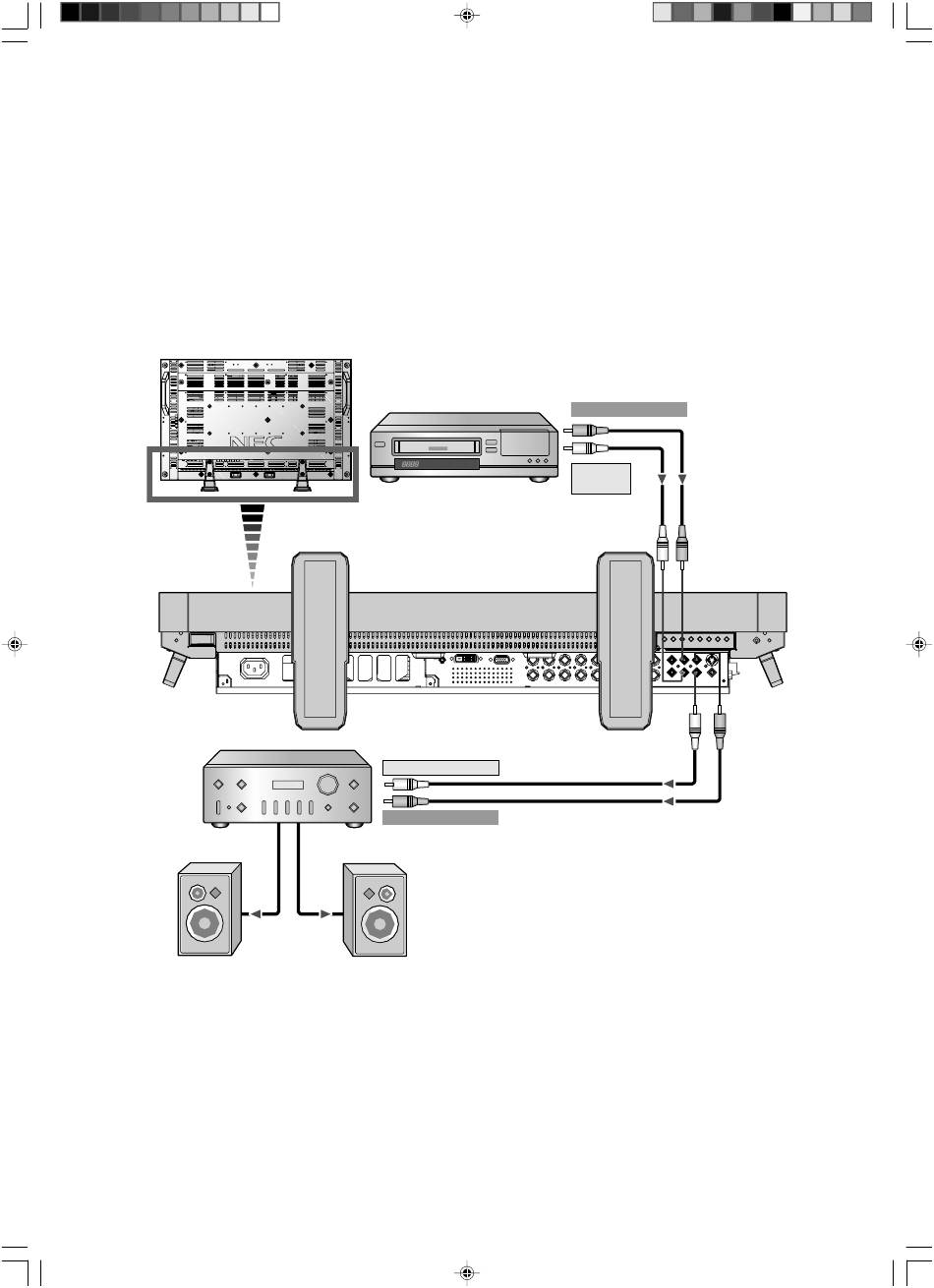

LCD monitor
External speaker
01_English
VCR or Laser disc player
Amplifier
To audio left input
To audio right input
External speaker
12
To audio right output
To audio
left output
English-12
31/01/2003, 20:47
RCA
RCA
