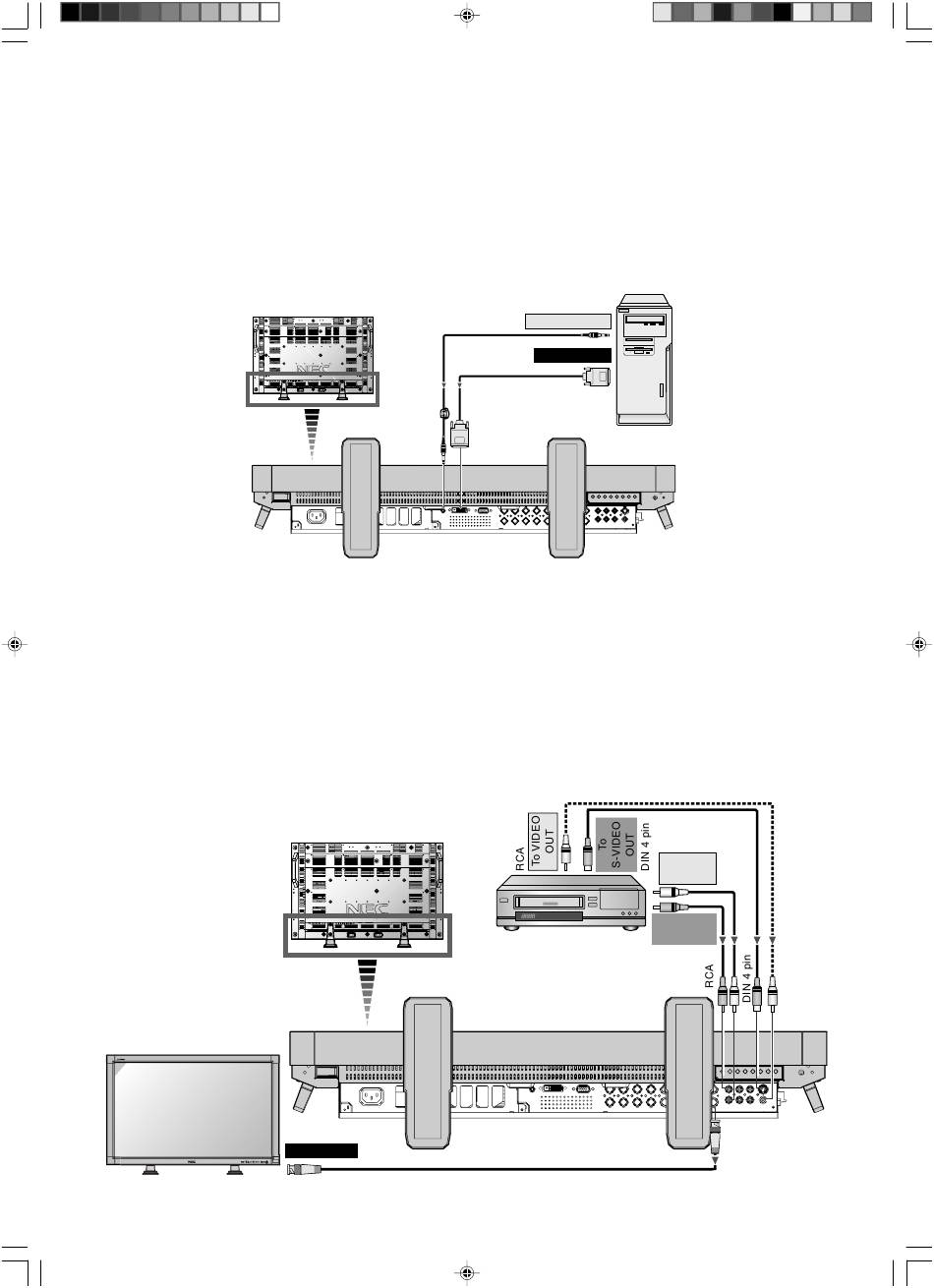

Connections with Digital Interface Equipment

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard.

Connect the LCD Monitor to a Computer with a Digital Output

• The RGB 1 IN connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
• To maintain display quality, use a cable with a quality prescribed by DVI standards.
• The AUDIO IN 1 can be used for audio input. For connection, select AUDIO 1 from the AUDIO INPUT button.

Connecting a VCR

Connecting your VCR or laser disc player to your LCD monitor will enable you to display your VCR's or laser disc player's video.
Refer to your VCR or laser disc player owner's manual for more information.

Connect the LCD Monitor to a VCR or Laser Disc Player

• Video signals can be connected to either the VIDEO IN [RCA or BNC] or the S-VIDEO IN connector.
NOTE: S-VIDEO is priority input.
Only one of the connectors, either RCA or BNC, can be used alternatively.
• Video output will be from the OUT connector.
• When connecting one or more LCD monitors in addition, use the VIDEO OUT connectors (BNC).
• The AUDIO IN 2 and 3 can be both used for audio input. For connection, select [AUDIO 2] or [AUDIO 3] from the AUDIO INPUT button.
LCD monitor (second monitor)
01_English
LCD monitor
LCD monitor
To VIDEO IN
BNC
10
To audio output
To DVI output
DVI-D connector
DVI-D
connector
VCR or Laser disc player
English-10
31/01/2003, 20:47
Equipment with a
digital interface such
as a personal
computer with RGB
output (TMDS)
To audio
left output
To audio
right output
BNC
