Lay the protective sheet on a table, which was wrapped around the
monitor when it was packaged, beneath the screen surface so as
not to scratch the screen face.
This device cannot be used or installed without the Tabletop Stand
or other mounting accessory. Failure to follow correct mounting
procedures could result in damage to the equipment or injury to the
user or installer. Product warranty does not cover damage caused
by improper installation. Failure to follow these recommendations
could result in voiding your warranty.
When using with other mounting accessory, it must be a VESA-
compatible mounting method and the screws must be M4 of size
and 8mm or longer of length under consideration of the thickness of
the mounting method. (Recommended torque: 150 ~ 170N . cm).

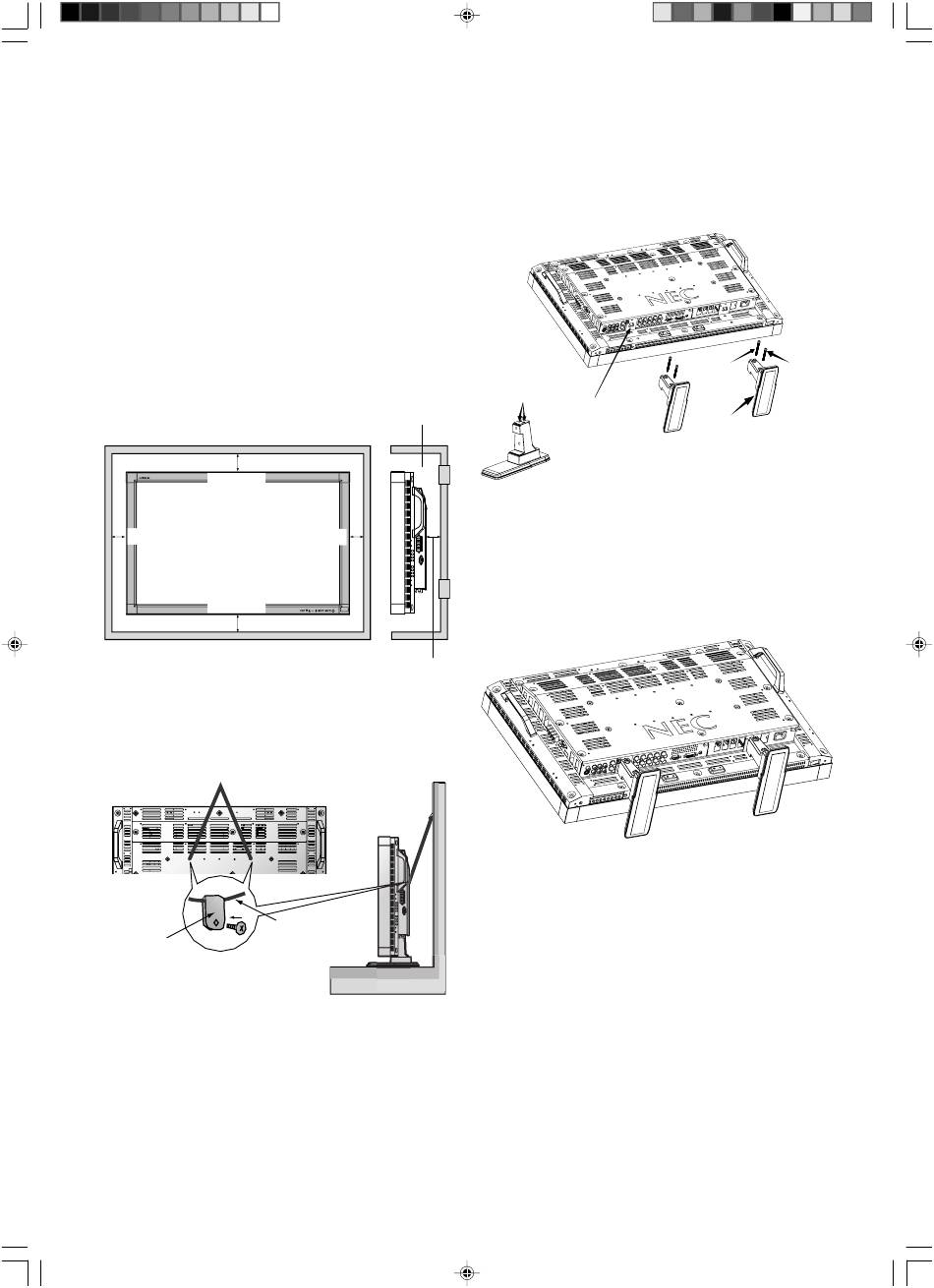

Ventilation Requirements for enclosure
mounting
To allow heat to disperse, leave space between surrounding objects
as shown in the diagram to the right.
Ambient temperature should be less than 40°C.
100mm
100mm
100mm
* Use some fans as needed.
To avoid falling down
Fasten the LCD monitor to wall or pillar with a cord or chain
which is sufficient to support the weight of the LCD monitor
(approx. 16kg).
hole of fix
Clamper
Before moving the LCD monitor, the cord or chain should be
removed.
01_English
100mm
100mm
Cord or Chain
(not supplied)
6
How to install stand
1. Please turn monitor off.
2. Insert claws of monitor to stand holes until clicks.
3. Fasten 2 screws of both side.
Upper M5 x 55 Lower M5 x 45
Torque 280 ~ 300N cm
Hole of stand
Claw of
Monitor
*
How to remove the stand
1. Spread the protective sheet on the flat surface, such as a desk.
2. Place monitor on the protective sheet.
*
3. Remove 2 screws of each stand with a screw driver and keep
them for reuse.
English-6
31/01/2003, 20:47
Screw
Screw
M5 x 55
M5 x 45
Stand
