METIS MF11

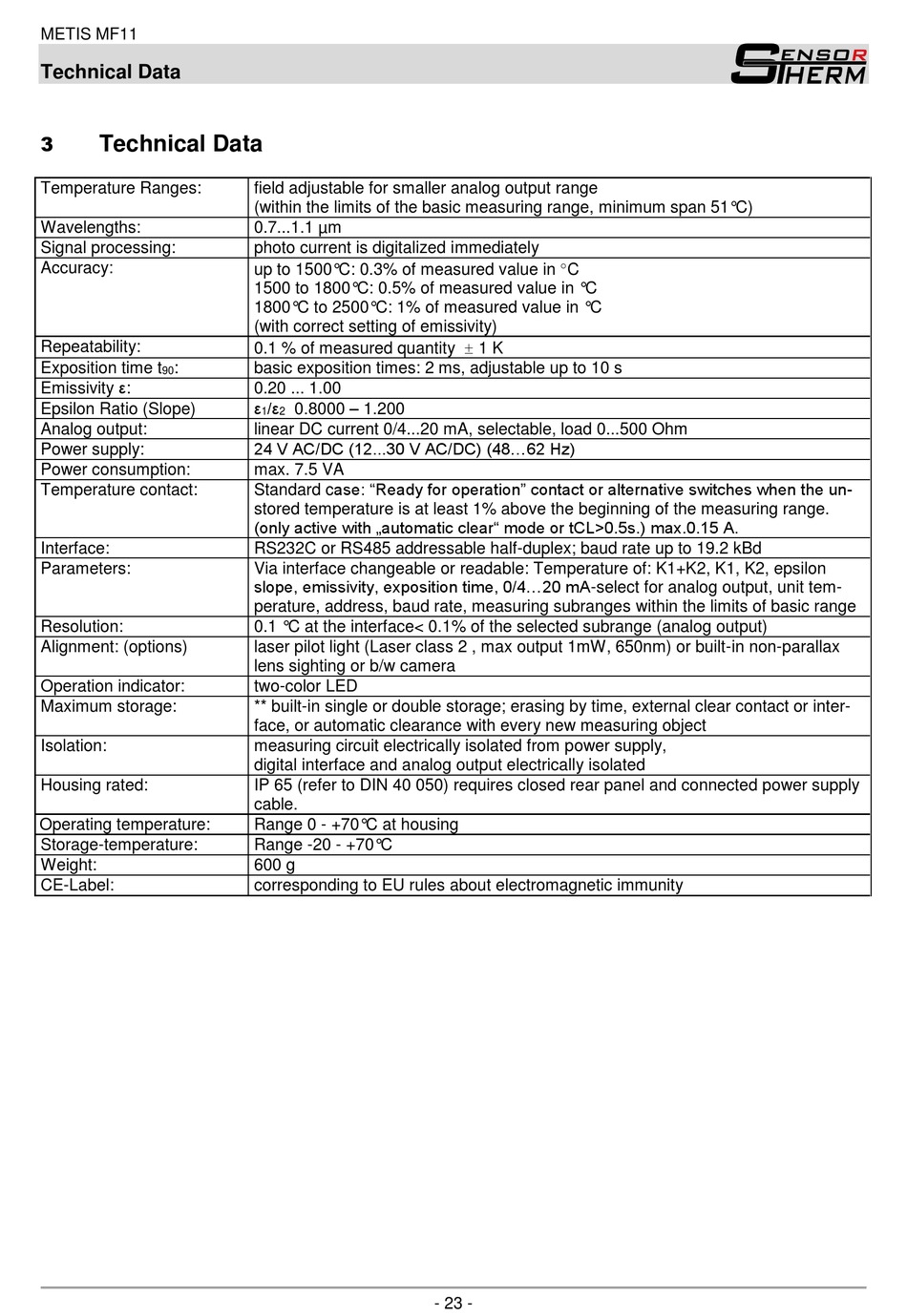

Technical Data

3
Technical Data
Temperature Ranges:
Wavelengths:
Signal processing:
Accuracy:
Repeatability:
Exposition time t
:
90
Emissivity ε:
Epsilon Ratio (Slope)
Analog output:
Power supply:
Power consumption:
Temperature contact:
Interface:
Parameters:
Resolution:
Alignment: (options)
Operation indicator:
Maximum storage:
Isolation:
Housing rated:
Operating temperature:
Storage-temperature:
Weight:
CE-Label:
field adjustable for smaller analog output range
(within the limits of the basic measuring range, minimum span 51°C)
0.7...1.1 µm
photo current is digitalized immediately
up to 1500°C: 0.3% of measured value in C
1500 to 1800°C: 0.5% of measured value in °C
1800°C to 2500°C: 1% of measured value in °C
(with correct setting of emissivity)
0.1 % of measured quantity  1 K
basic exposition times: 2 ms, adjustable up to 10 s
0.20 ... 1.00
ε
0.8000 – 1.200
1
2
linear DC current 0/4...20 mA, selectable, load 0...500 Ohm
24 V AC/DC (12...30 V AC/DC) (48...62 Hz)
max. 7.5 VA
Standard case: "Ready for operation" contact or alternative switches when the un-
stored temperature is at least 1% above the beginning of the measuring range.
(only active with „automatic clear" mode or tCL>0.5s.) max.0.15 A.
RS232C or RS485 addressable half-duplex; baud rate up to 19.2 kBd
Via interface changeable or readable: Temperature of: K1+K2, K1, K2, epsilon
slope, emissivity, exposition time, 0/4...20 mA-select for analog output, unit tem-
perature, address, baud rate, measuring subranges within the limits of basic range
0.1 °C at the interface< 0.1% of the selected subrange (analog output)
laser pilot light (Laser class 2 , max output 1mW, 650nm) or built-in non-parallax
lens sighting or b/w camera
two-color LED
** built-in single or double storage; erasing by time, external clear contact or inter-
face, or automatic clearance with every new measuring object
measuring circuit electrically isolated from power supply,
digital interface and analog output electrically isolated
IP 65 (refer to DIN 40 050) requires closed rear panel and connected power supply
cable.
Range 0 - +70°C at housing
Range -20 - +70°C
600 g
corresponding to EU rules about electromagnetic immunity
- 23 -
