2. Function Description

2.1.3. LEDs

The green LED indicators show the production in percentage of the nominal inverter power rating.
The leftmost green LED is always lit when the inverter is connected to the grid. The red LED to
2
the left is lit when the inverter is in standby mode and not connected to the grid. If the inverter
is forced into standby mode because of an event in the inverter or the peripheral connections,
e.g. disconnection from the grid, the red LED starts flashing.

2.1.4. Display

Through the integrated display on the inverter front, the user has access to all information about
the PV system and the inverter. When the inverter is in OFF mode (at night), the inverter can be
activated by pressing the left button (ESC).

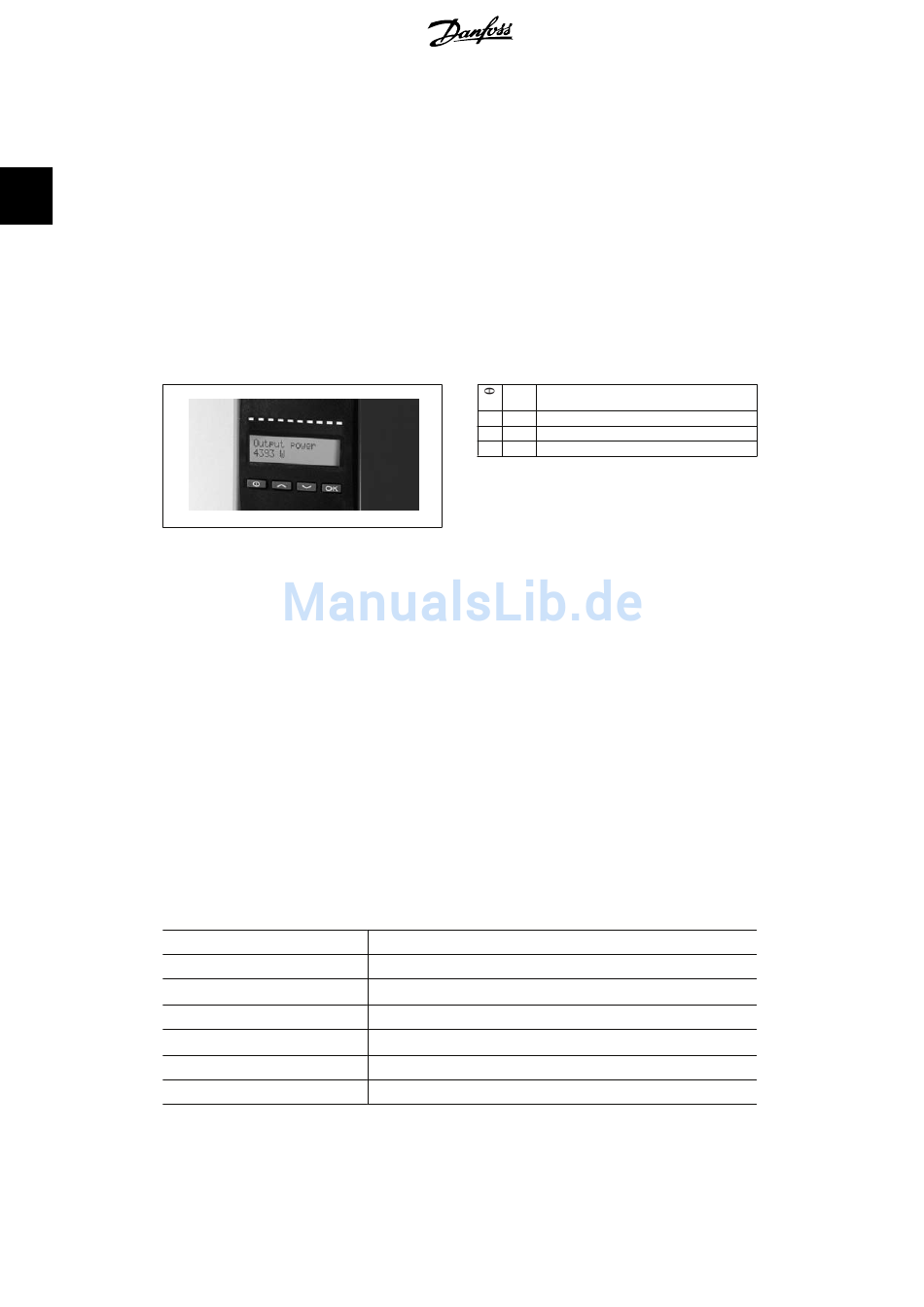

Illustration 2.3: Display
The parameters shown in the display refer to internally measured voltages and currents. The
parameters shown may deviate.
The display information is organised in a menu structure divided into two sections: A and B
Section A:
Contains information about the inverter and PV system performance.
Section B:
Displays all measurement values and user settings.

2.1.5. Overview Menu Section A

The table below gives an overview of the menu structure. The values shown are only intended as
examples of display texts.
Menu Structure A
Display Functions
Output power - 1234 W
Inverter name - South_07
Total production - 12.3 kWh
Total operating time - 00123 h 01 m 28 s
Production today - 1234 Wh
Go to menu B
Table 2.2: Overview Menu Structure A
6
ESC Goes one step backwards/up in the menu
structure
Up Scrolls back to the previous menu display
▲
Down Scrolls forward to the next menu display
▼
Enter New menu level or changing of settings
OK
Description
Current output power in watt.
Use ComLynx Service to enter inverter name. If the inverter name is undefined
this menu is skipped.
Total energy production in kWh since first inverter start-up.
Total operating time (time with power on) displayed in hours, minutes and sec-
onds.
Energy production today in Wh.
Jumps to menu level B when 'OK' is pressed.
