UK | 10 Mounting soffit element PP 45 LE
10 Mounting soffit element
PP 45 LE
PP 45 LE not suited for PPB 30 units
i
– use PP 45 LE only in combination
with PP 45 units.
Incline of at least 1...2%
L Window soffit
P Plaster edge max. 7 mm
32
NOTICE
Installation position, internal wall: Once
the plaster has been applied or wallpaper put
up etc., the wall sleeve must end flush with
the internal wall.
Installation position of window soffit:
The condensate drip edge must protrude
20 to 25 mm beyond the external plastering
once this plastering is applied.

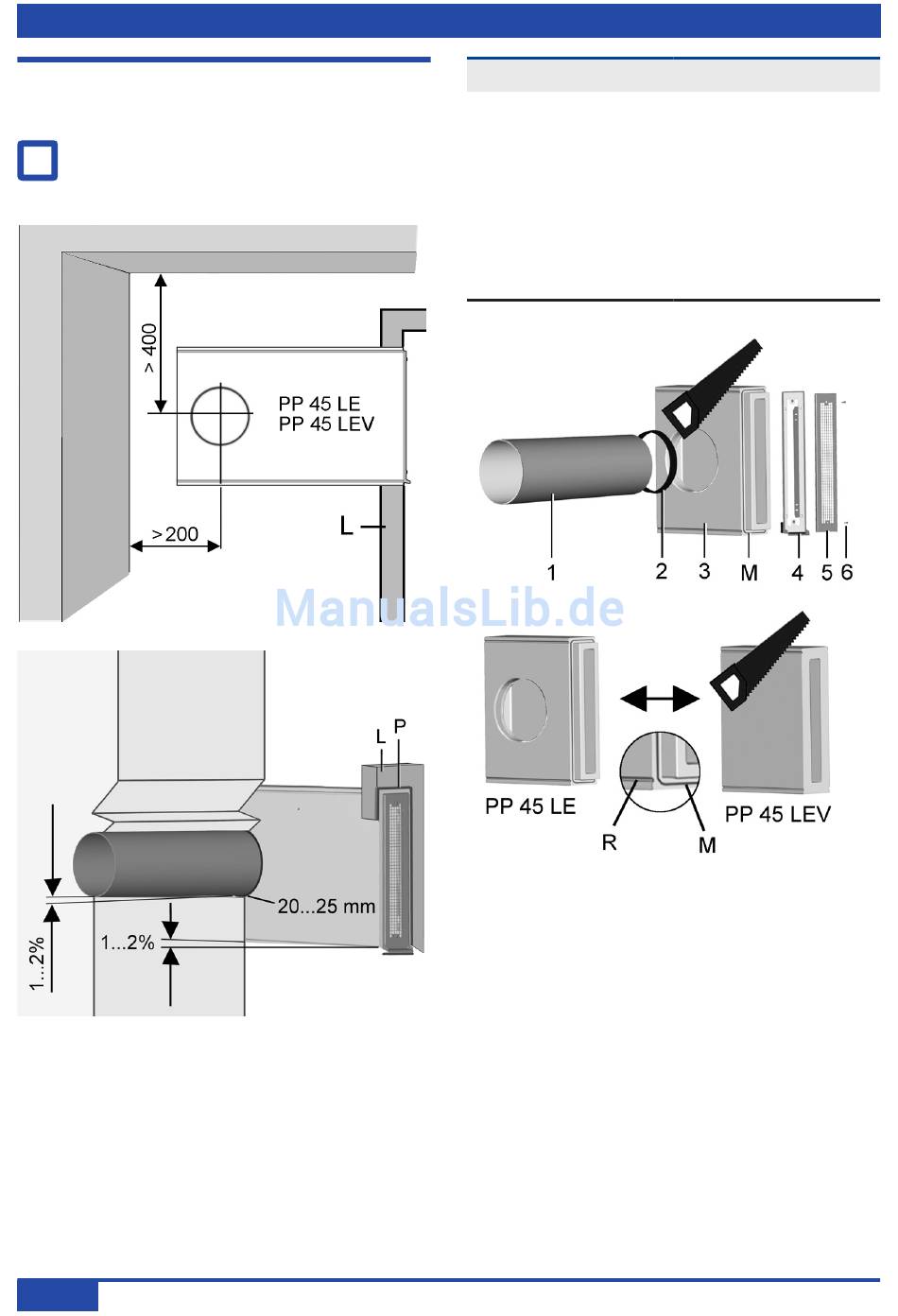

1 Wall sleeve Ø 160, not in scope of supply
2 Rubber seal wall sleeve
3 Soffit element PP 45 LE
4 Stainless steel holder for drip edge and
integrated wall seal [4.1]
5 Stainless steel external grille
6 Screws (2 pieces)
R Longitudinal rib
M Mounting adhesive
