UK | 9 Mounting the wall sleeve and external cover
Mounting PPB 30 AK and PP 30 AE/AW
– once external wall is fully plastered –

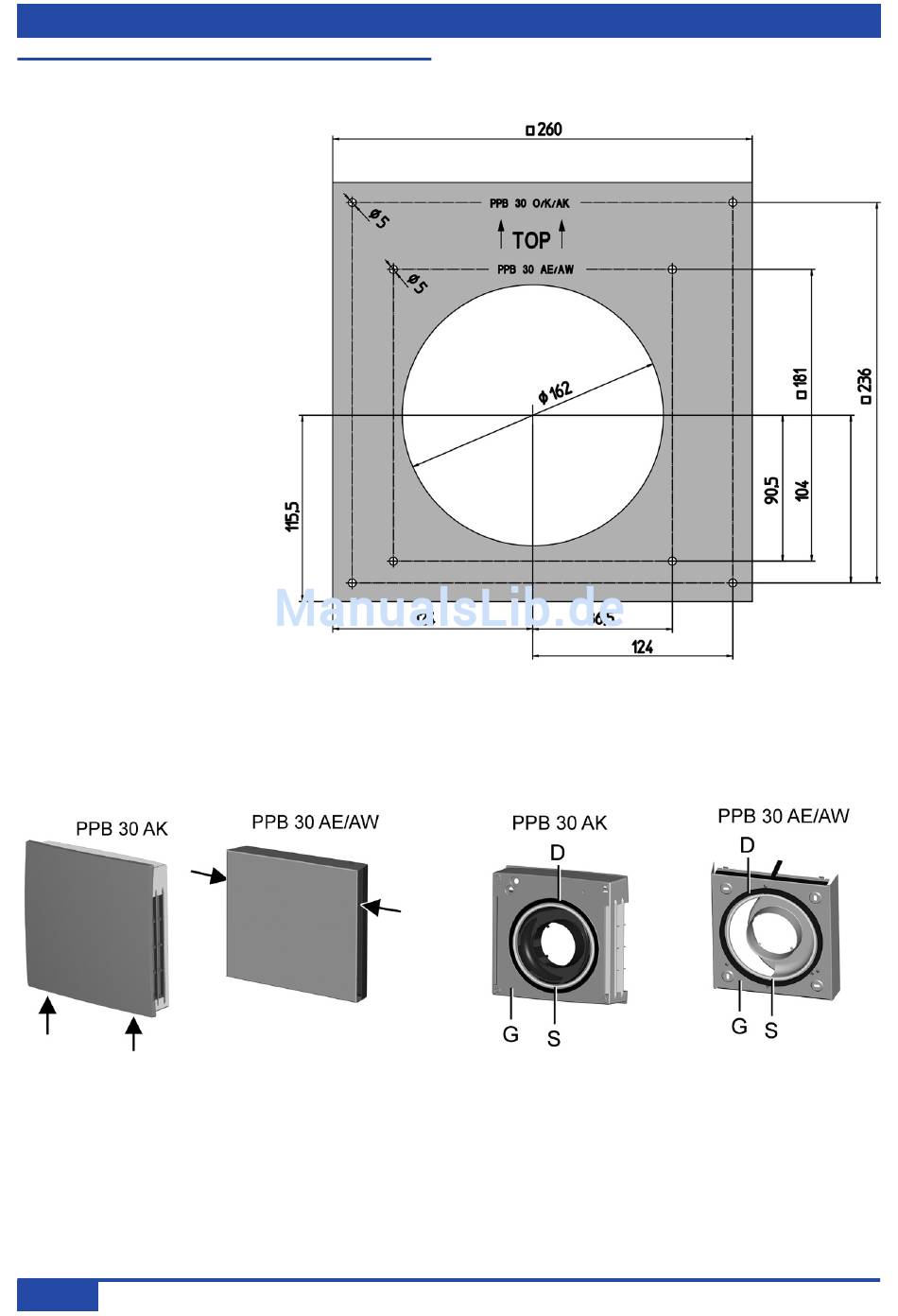

Position of external
cover and wall sleeve
Use drilling template!
1. Remove plaster protective cover, place
drilling template over the wall sleeve, align
it and mark the fixing holes. Observe the
"TOP" position.
2. Drill the holes and insert dowels.
3. Remove front cover from housing.
PPB 30 AK: Push onto the two locking
levers below. PPB 30 AE/AW: Remove the
screws on both sides. Then, remove the
front cover upwards.
30
4. On the side of the housing facing the wall,
attach a silicon ring [S] around the entire
hole to seal it off from the wall.
