Operating instructions

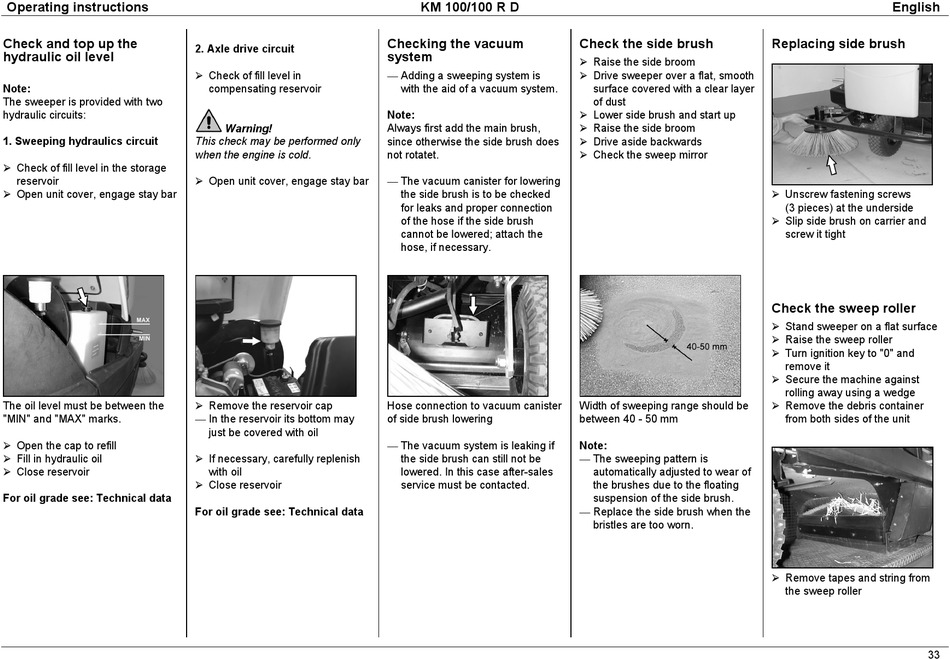

Check and top up the
hydraulic oil level
Note:
The sweeper is provided with two
hydraulic circuits:
1. Sweeping hydraulics circuit
! Check of fill level in the storage
reservoir
! Open unit cover, engage stay bar
The oil level must be between the
"MIN" and "MAX" marks.
! Open the cap to refill
! Fill in hydraulic oil
! Close reservoir
For oil grade see: Technical data
2. Axle drive circuit
! Check of fill level in
compensating reservoir
Warning!
This check may be performed only
when the engine is cold.
! Open unit cover, engage stay bar
! Remove the reservoir cap
— In the reservoir its bottom may
just be covered with oil
! If necessary, carefully replenish
with oil
! Close reservoir
For oil grade see: Technical data
KM 100/100 R D
Checking the vacuum
system
— Adding a sweeping system is
with the aid of a vacuum system.
Note:
Always first add the main brush,
since otherwise the side brush does
not rotatet.
— The vacuum canister for lowering
the side brush is to be checked
for leaks and proper connection
of the hose if the side brush
cannot be lowered; attach the
hose, if necessary.
Hose connection to vacuum canister
of side brush lowering
— The vacuum system is leaking if
the side brush can still not be
lowered. In this case after-sales
service must be contacted.

Check the side brush

! Raise the side broom
! Drive sweeper over a flat, smooth
surface covered with a clear layer
of dust
! Lower side brush and start up
! Raise the side broom
! Drive aside backwards
! Check the sweep mirror
Width of sweeping range should be
between 40 - 50 mm
Note:
— The sweeping pattern is
automatically adjusted to wear of
the brushes due to the floating
suspension of the side brush.
— Replace the side brush when the
bristles are too worn.
English

Replacing side brush

! Unscrew fastening screws
(3 pieces) at the underside
! Slip side brush on carrier and
screw it tight

Check the sweep roller

! Stand sweeper on a flat surface
! Raise the sweep roller
! Turn ignition key to "0" and
remove it
! Secure the machine against
rolling away using a wedge
! Remove the debris container
from both sides of the unit
! Remove tapes and string from
the sweep roller
33
