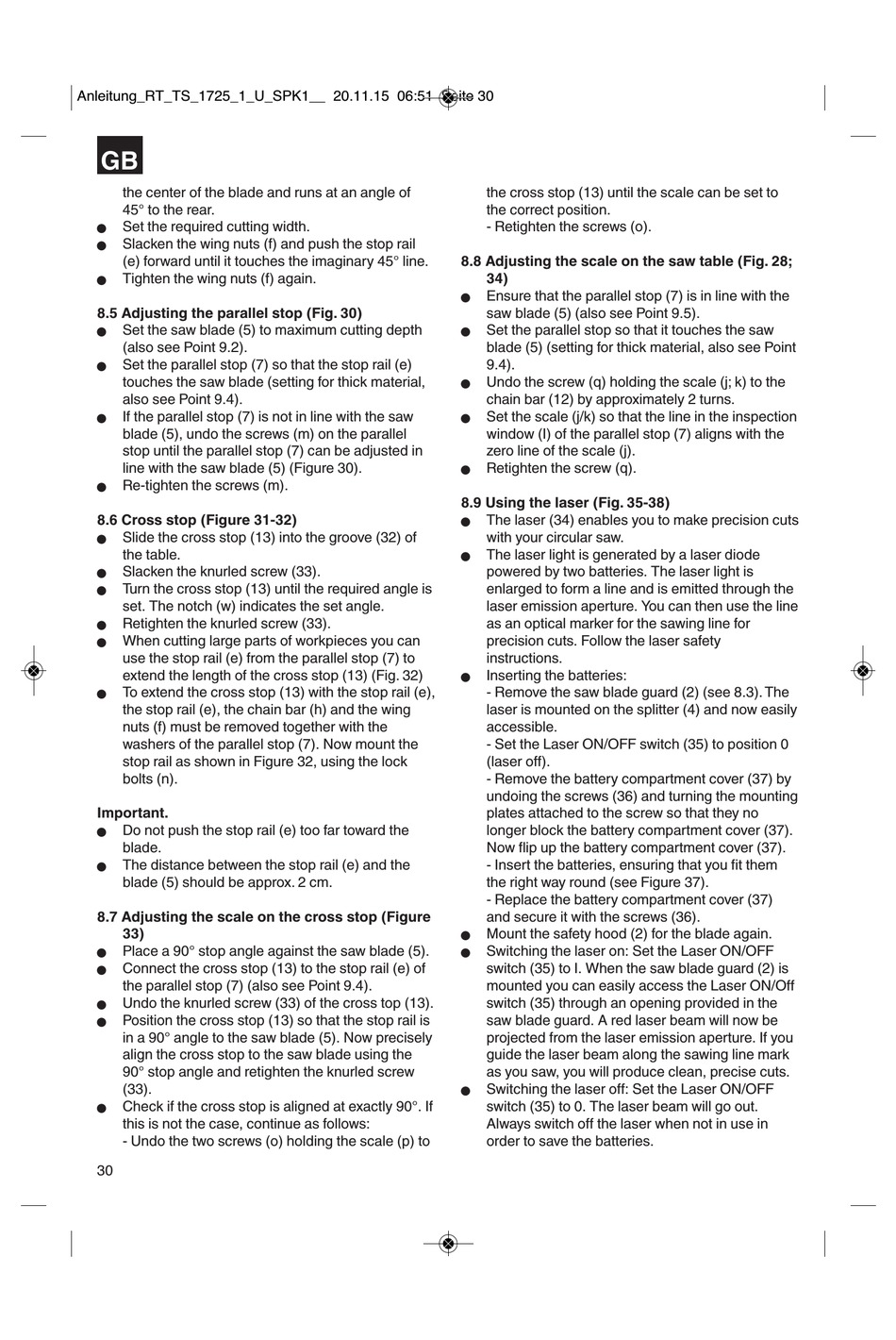

GB
the center of the blade and runs at an angle of
45° to the rear.
Set the required cutting width.
n
Slacken the wing nuts (f) and push the stop rail
n
(e) forward until it touches the imaginary 45° line.
Tighten the wing nuts (f) again.
n
8.5 Adjusting the parallel stop (Fig. 30)
Set the saw blade (5) to maximum cutting depth
n
(also see Point 9.2).
Set the parallel stop (7) so that the stop rail (e)
n
touches the saw blade (setting for thick material,
also see Point 9.4).
If the parallel stop (7) is not in line with the saw
n
blade (5), undo the screws (m) on the parallel
stop until the parallel stop (7) can be adjusted in
line with the saw blade (5) (Figure 30).
Re-tighten the screws (m).
n
8.6 Cross stop (Figure 31-32)
Slide the cross stop (13) into the groove (32) of
n
the table.
Slacken the knurled screw (33).
n
Turn the cross stop (13) until the required angle is
n
set. The notch (w) indicates the set angle.
Retighten the knurled screw (33).
n
When cutting large parts of workpieces you can
n
use the stop rail (e) from the parallel stop (7) to
extend the length of the cross stop (13) (Fig. 32)
To extend the cross stop (13) with the stop rail (e),
n
the stop rail (e), the chain bar (h) and the wing
nuts (f) must be removed together with the
washers of the parallel stop (7). Now mount the
stop rail as shown in Figure 32, using the lock
bolts (n).
Important.
Do not push the stop rail (e) too far toward the
n
blade.
The distance between the stop rail (e) and the
n
blade (5) should be approx. 2 cm.
8.7 Adjusting the scale on the cross stop (Figure
33)
Place a 90° stop angle against the saw blade (5).
n
Connect the cross stop (13) to the stop rail (e) of
n
the parallel stop (7) (also see Point 9.4).
Undo the knurled screw (33) of the cross top (13).
n
Position the cross stop (13) so that the stop rail is
n
in a 90° angle to the saw blade (5). Now precisely
align the cross stop to the saw blade using the
90° stop angle and retighten the knurled screw
(33).
Check if the cross stop is aligned at exactly 90°. If
n
this is not the case, continue as follows:
- Undo the two screws (o) holding the scale (p) to
30
the cross stop (13) until the scale can be set to
the correct position.
- Retighten the screws (o).
8.8 Adjusting the scale on the saw table (Fig. 28;
34)
Ensure that the parallel stop (7) is in line with the
n
saw blade (5) (also see Point 9.5).
Set the parallel stop so that it touches the saw
n
blade (5) (setting for thick material, also see Point
9.4).
Undo the screw (q) holding the scale (j; k) to the
n
chain bar (12) by approximately 2 turns.
Set the scale (j/k) so that the line in the inspection
n
window (I) of the parallel stop (7) aligns with the
zero line of the scale (j).
Retighten the screw (q).
n
8.9 Using the laser (Fig. 35-38)
The laser (34) enables you to make precision cuts
n
with your circular saw.
The laser light is generated by a laser diode
n
powered by two batteries. The laser light is
enlarged to form a line and is emitted through the
laser emission aperture. You can then use the line
as an optical marker for the sawing line for
precision cuts. Follow the laser safety
instructions.
Inserting the batteries:
n
- Remove the saw blade guard (2) (see 8.3). The
laser is mounted on the splitter (4) and now easily
accessible.
- Set the Laser ON/OFF switch (35) to position 0
(laser off).
- Remove the battery compartment cover (37) by
undoing the screws (36) and turning the mounting
plates attached to the screw so that they no
longer block the battery compartment cover (37).
Now flip up the battery compartment cover (37).
- Insert the batteries, ensuring that you fit them
the right way round (see Figure 37).
- Replace the battery compartment cover (37)
and secure it with the screws (36).
Mount the safety hood (2) for the blade again.
n
Switching the laser on: Set the Laser ON/OFF
n
switch (35) to I. When the saw blade guard (2) is
mounted you can easily access the Laser ON/Off
switch (35) through an opening provided in the
saw blade guard. A red laser beam will now be
projected from the laser emission aperture. If you
guide the laser beam along the sawing line mark
as you saw, you will produce clean, precise cuts.
Switching the laser off: Set the Laser ON/OFF
n
switch (35) to 0. The laser beam will go out.
Always switch off the laser when not in use in
order to save the batteries.
