English
NOTE:
If you do not use the deflector we recommend
you to install Anti-mist spacer (optional) in this
place as it actually acts as an anti mist ducting
device.

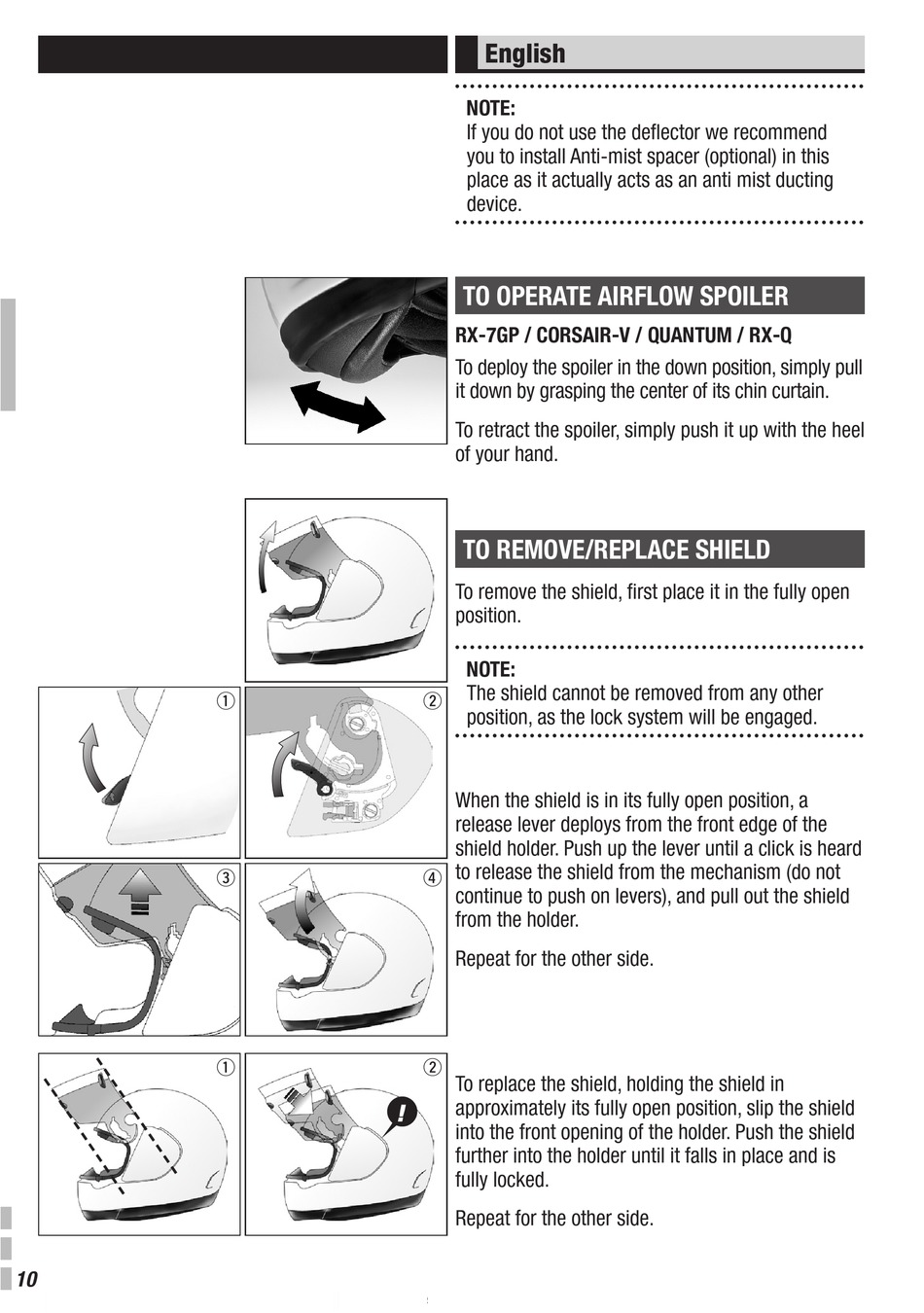

TO OPERATE AIRFlOW SPOIlER
RX-7GP / CORSAIR-V / QUANTUM / RX-Q
To deploy the spoiler in the down position, simply pull
it down by grasping the center of its chin curtain.
To retract the spoiler, simply push it up with the heel
of your hand.
TO REMOVE/REPlACE SHIElD
To remove the shield, first place it in the fully open
position.
NOTE:
The shield cannot be removed from any other
w
position, as the lock system will be engaged.
When the shield is in its fully open position, a
release lever deploys from the front edge of the
shield holder. Push up the lever until a click is heard
to release the shield from the mechanism (do not
r
continue to push on levers), and pull out the shield
from the holder.
Repeat for the other side.
w
To replace the shield, holding the shield in
approximately its fully open position, slip the shield
!
into the front opening of the holder. Push the shield
further into the holder until it falls in place and is
fully locked.
Repeat for the other side.
