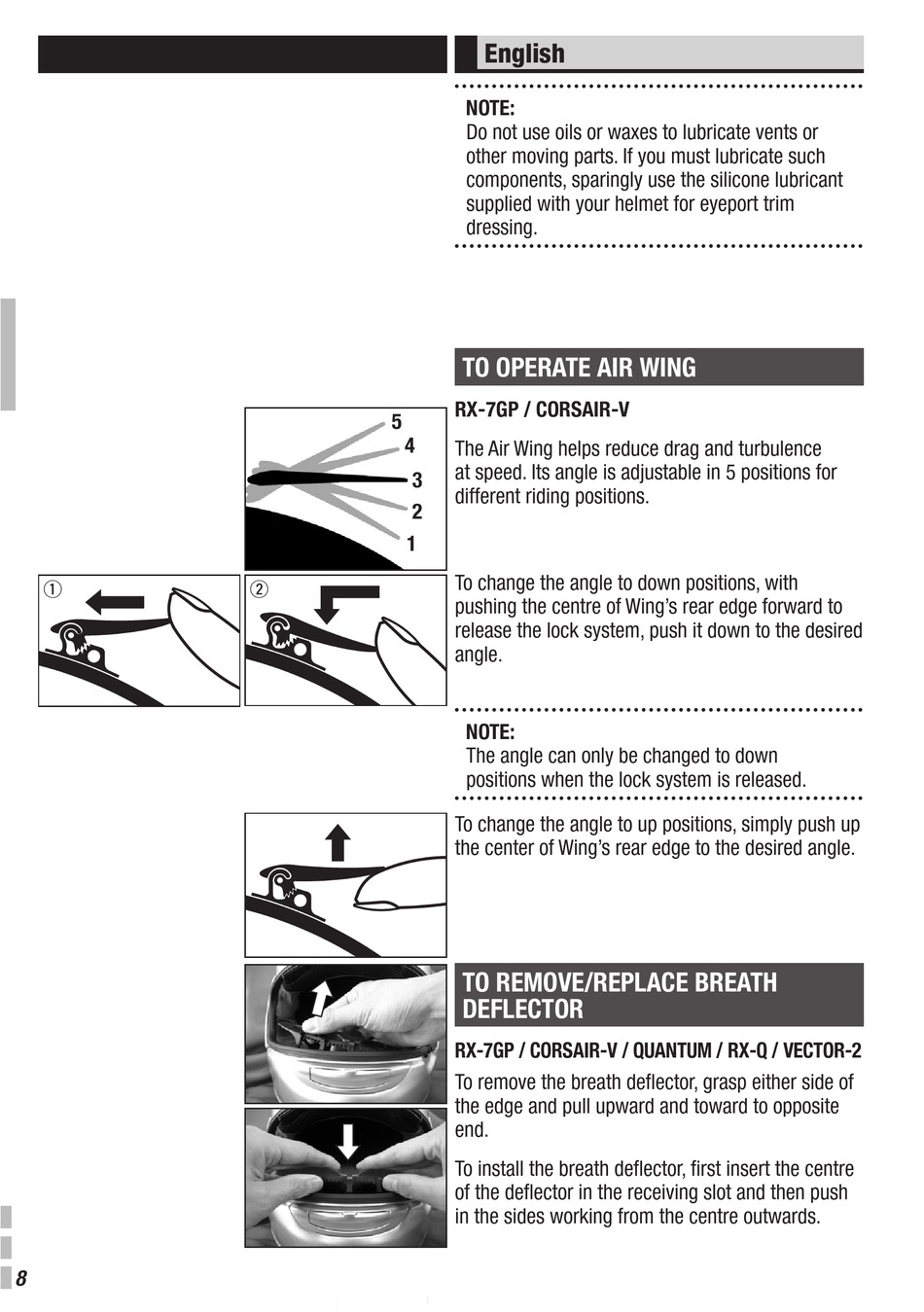

Arai RX-7RC Gebrauchsanleitung Seite 10

q
8
5
4
3
2
1
w
English
NOTE:
Do not use oils or waxes to lubricate vents or
other moving parts. If you must lubricate such
components, sparingly use the silicone lubricant
supplied with your helmet for eyeport trim
dressing.
TO OPERATE AIR WING
RX-7GP / CORSAIR-V
The Air Wing helps reduce drag and turbulence
at speed. Its angle is adjustable in 5 positions for
different riding positions.
To change the angle to down positions, with
pushing the centre of Wing's rear edge forward to
release the lock system, push it down to the desired
angle.
NOTE:
The angle can only be changed to down
positions when the lock system is released.
To change the angle to up positions, simply push up
the center of Wing's rear edge to the desired angle.
TO REMOVE/REPlACE BREATH
DEFlECTOR
RX-7GP / CORSAIR-V / QUANTUM / RX-Q / VECTOR-2
To remove the breath deflector, grasp either side of
the edge and pull upward and toward to opposite
end.
To install the breath deflector, first insert the centre
of the deflector in the receiving slot and then push
in the sides working from the centre outwards.
