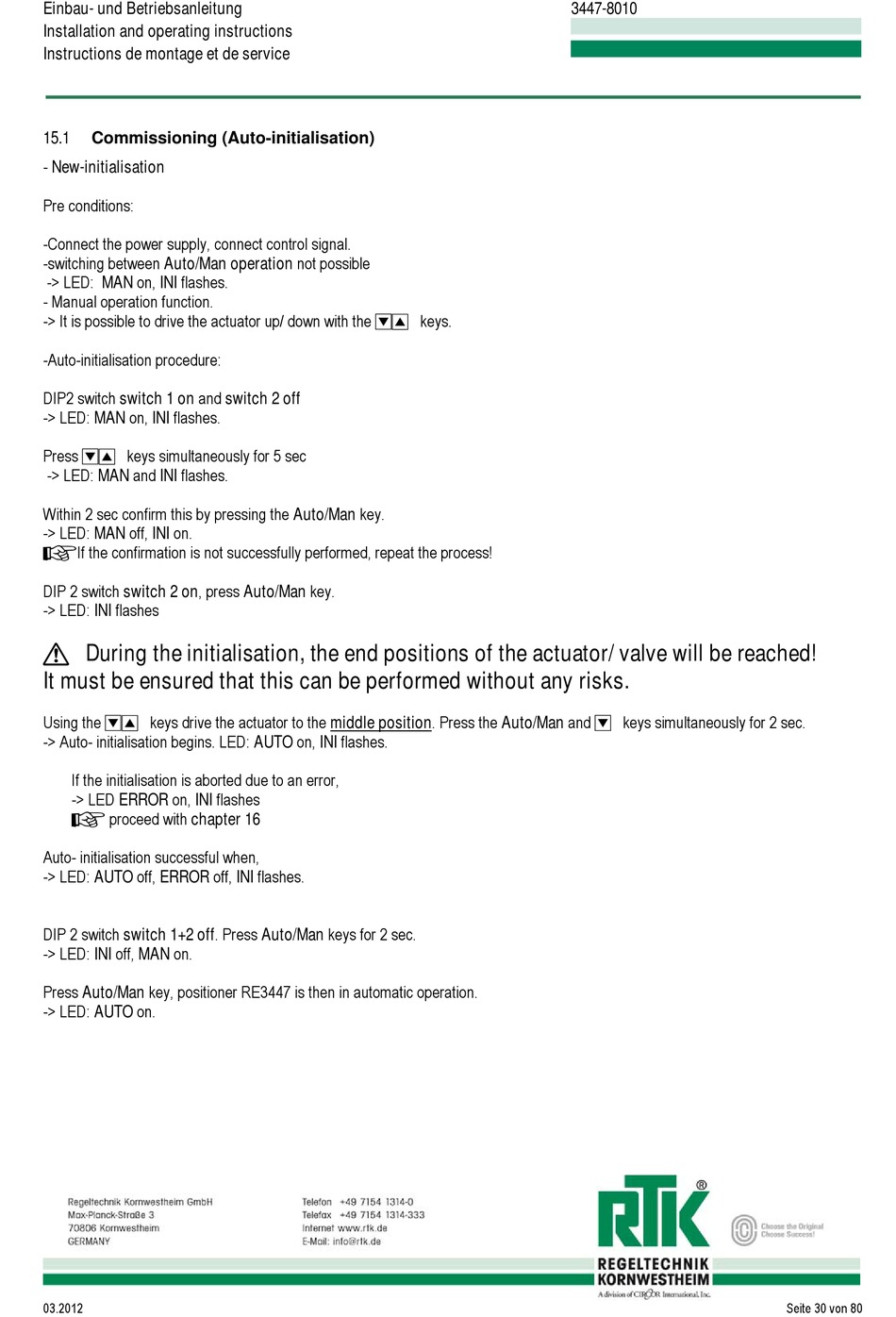

15.1
Commissioning (Auto-initialisation)
- New-initialisation
Pre conditions:
-Connect the power supply, connect control signal.
-switching between Auto/Man operation not possible
-> LED: MAN on, INI flashes.
- Manual operation function.
-> It is possible to drive the actuator up/ down with the DI keys.
-Auto-initialisation procedure:
DIP2 switch switch 1 on and switch 2 off
-> LED: MAN on, INI flashes.
Press DI keys simultaneously for 5 sec
-> LED: MAN and INI flashes.
Within 2 sec confirm this by pressing the Auto/Man key.
-> LED: MAN off, INI on.
+If the confirmation is not successfully performed, repeat the process!
DIP 2 switch switch 2 on, press Auto/Man key.
-> LED: INI flashes
" During the initialisation, the end positions of the actuator/ valve will be reached!
It must be ensured that this can be performed without any risks.
Using the DI keys drive the actuator to the middle position. Press the Auto/Man and D keys simultaneously for 2 sec.
-> Auto- initialisation begins. LED: AUTO on, INI flashes.
If the initialisation is aborted due to an error,
-> LED ERROR on, INI flashes
+ proceed with chapter 16
Auto- initialisation successful when,
-> LED: AUTO off, ERROR off, INI flashes.
DIP 2 switch switch 1+2 off. Press Auto/Man keys for 2 sec.
-> LED: INI off, MAN on.
Press Auto/Man key, positioner RE3447 is then in automatic operation.
-> LED: AUTO on.
