Einbau- und Betriebsanleitung
Installation and operating instructions
Instructions de montage et de service

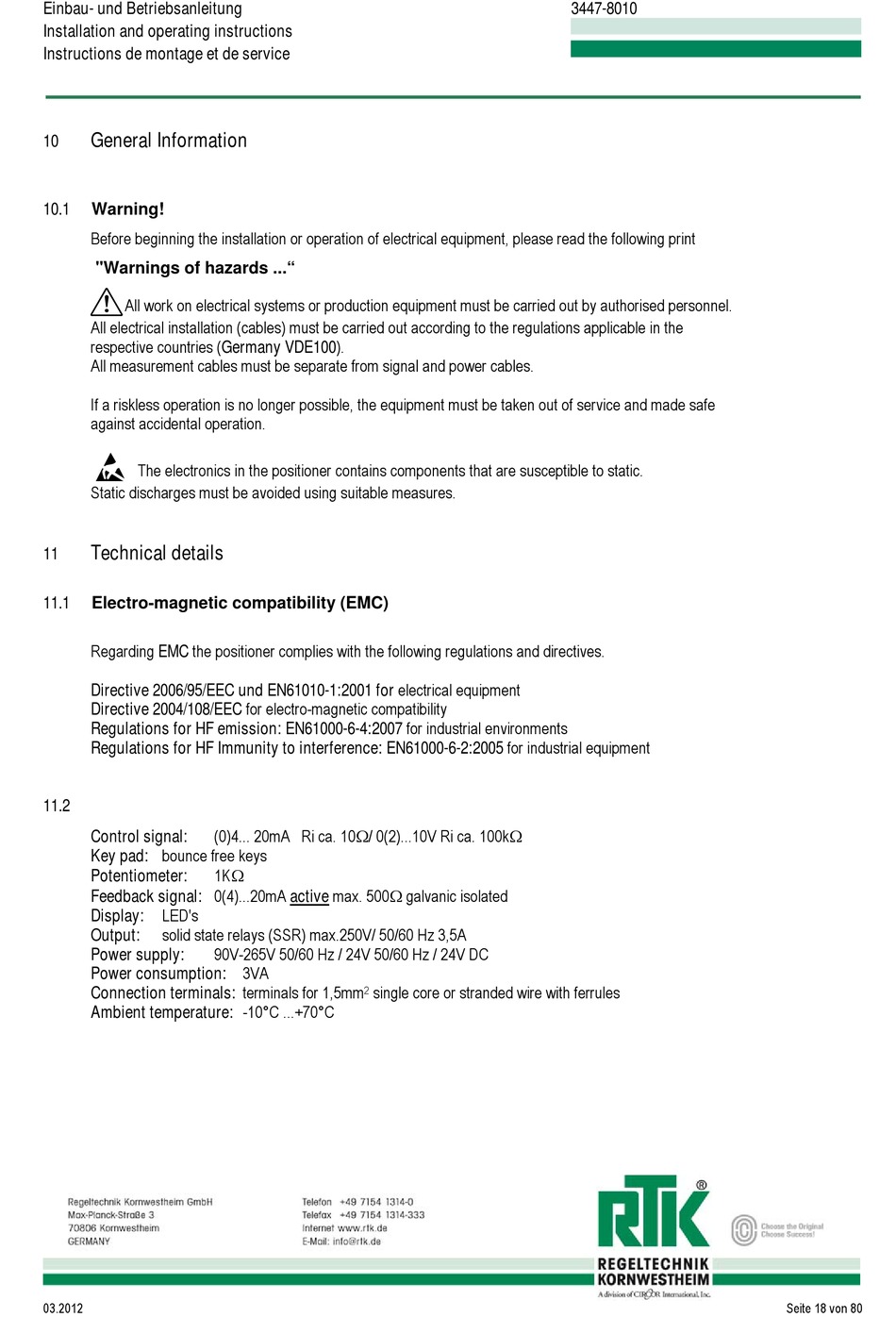

General Information
10
10.1
Warning!
Before beginning the installation or operation of electrical equipment, please read the following print
"Warnings of hazards ..."
"
All work on electrical systems or production equipment must be carried out by authorised personnel.
All electrical installation (cables) must be carried out according to the regulations applicable in the
respective countries (Germany VDE100).
All measurement cables must be separate from signal and power cables.
If a riskless operation is no longer possible, the equipment must be taken out of service and made safe
against accidental operation.
l
The electronics in the positioner contains components that are susceptible to static.
Static discharges must be avoided using suitable measures.
Technical details
11
11.1
Electro-magnetic compatibility (EMC)
Regarding EMC the positioner complies with the following regulations and directives.
Directive 2006/95/EEC und EN61010-1:2001 for electrical equipment
Directive 2004/108/EEC for electro-magnetic compatibility
Regulations for HF emission: EN61000-6-4:2007 for industrial environments
Regulations for HF Immunity to interference: EN61000-6-2:2005 for industrial equipment
11.2
Control signal:
Key pad: bounce free keys
Potentiometer:
Feedback signal: 0(4)...20mA active max. 500Ω galvanic isolated
Display:
LED's
Output:
solid state relays (SSR) max.250V/ 50/60 Hz 3,5A
Power supply:
Power consumption: 3VA
Connection terminals: terminals for 1,5mm
Ambient temperature: -10°C ...+70°C
03.2012
(0)4... 20mA Ri ca. 10Ω/ 0(2)...10V Ri ca. 100kΩ
1KΩ
90V-265V 50/60 Hz / 24V 50/60 Hz / 24V DC
single core or stranded wire with ferrules
2
3447-8010
Seite 18 von 80
