Einbau- und Betriebsanleitung
Installation and operating instructions
Instructions de montage et de service
13.6

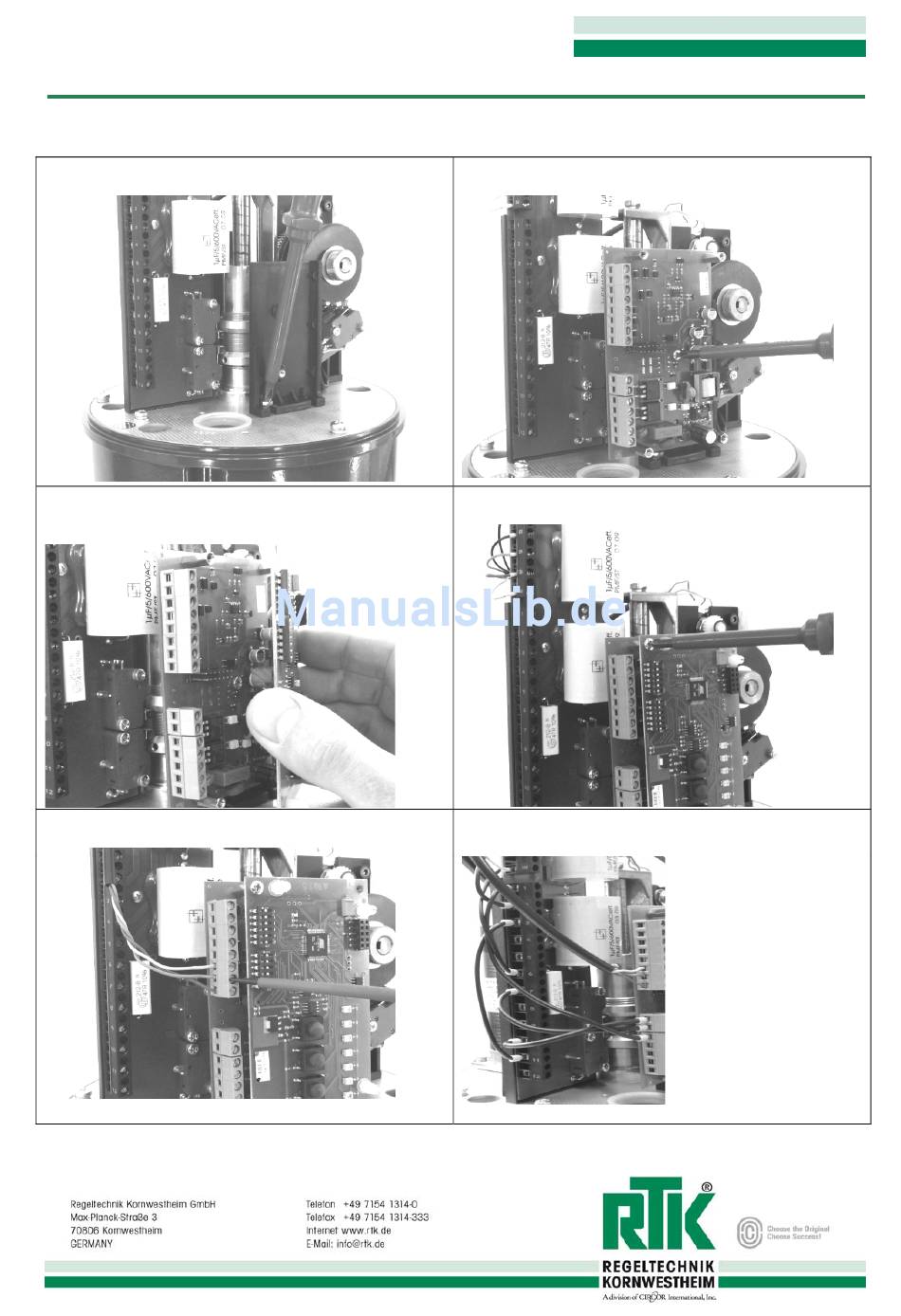

Installation in actuator ST5114/15
fastening mounting bracket 2x M4x8 Phillips screw
attach processor board
pay attention that the plug in connector is correctly connected
connect feedback potentiometer
cable colour in accordance with the relevant connection diagram
03.2012
3447-8010
fastening the power board 2x M3x6 Phillips/ slotted screw
fastening processor board 4x M3x6 Phillips screw
connect the positioner output with the actuator according
to the relevant connection diagram
Seite 24 von 80
