Einbau- und Betriebsanleitung
Installation and operating instructions
Instructions de montage et de service
13.2

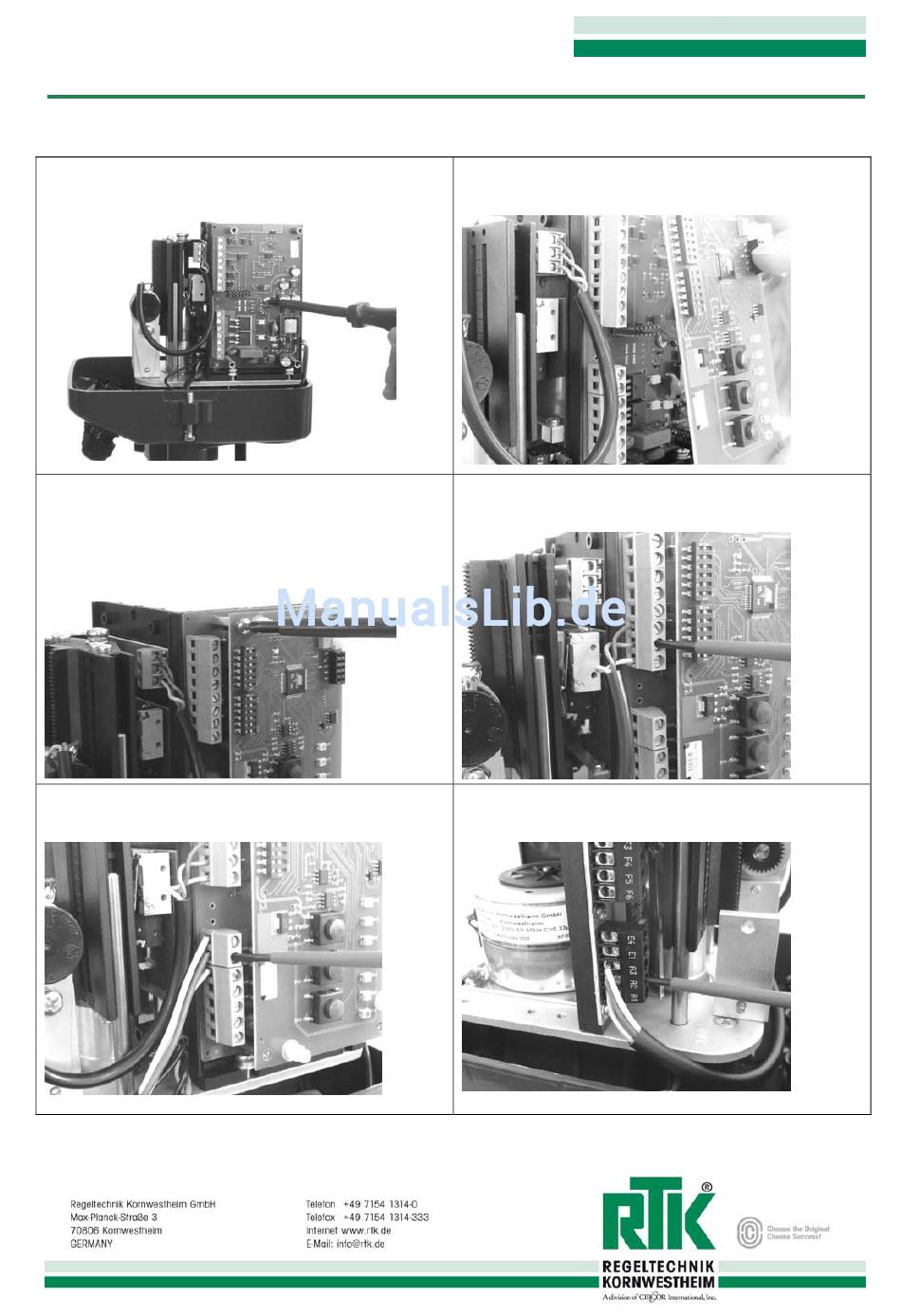

Installation in actuator ST5112
fastening the power board 2x M3x6 Phillips/ slotted screw
fastening the processor board 4x M3x6 Phillips screw
connect the positioner output with the actuator according to the
relevant connection diagram
03.2012
3447-8010
attach the processor board
pay attention that the plug in connector is correctly connected
connect the feedback potentiometer
cable colour in accordance with the relevant connection diagram
