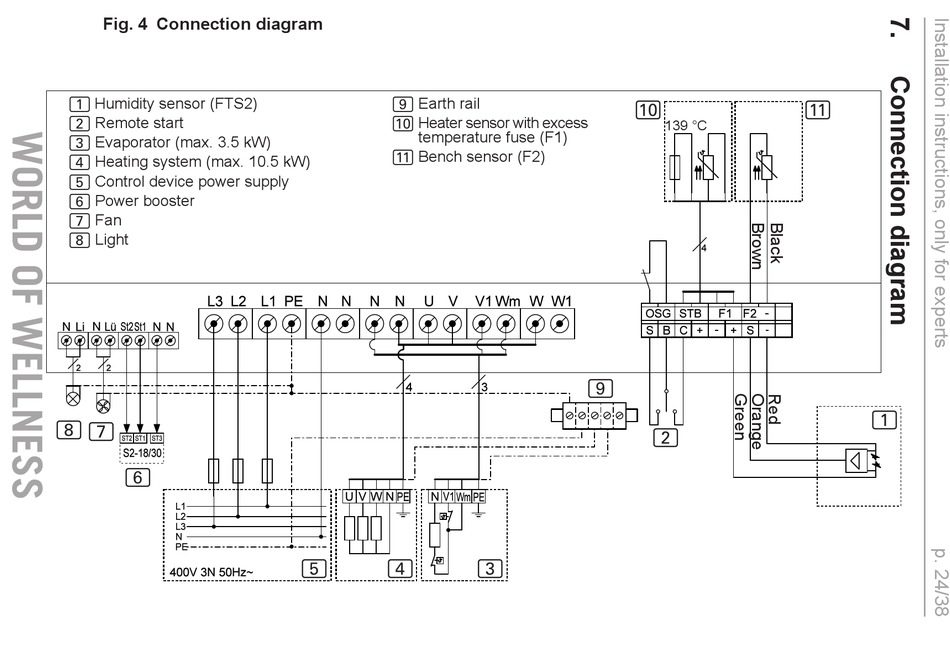

Fig. 4 Connection diagram
1 Humidity sensor (FTS2)
2 Remote start
3 Evaporator (max. 3.5 kW)
4 Heating system (max. 10.5 kW)
5 Control device power supply
6 Power booster
7 Fan
8 Light
8
7
6
9 Earth rail
a Heater sensor with excess
temperature fuse (F1)
b Bench sensor (F2)
5 4 3
a
139 °C
9
2
b
1
