Installation instructions, only for experts
To install the sauna control unit, perform the following steps:
1. Screw two Phillips-head screws (16 mm) into the wall of the sauna at a height
of approx. 1.70 m to a distance of up to 7 mm. The two screws must be
placed at a distance of 145 mm from each other (see Fig. 1).
80
40

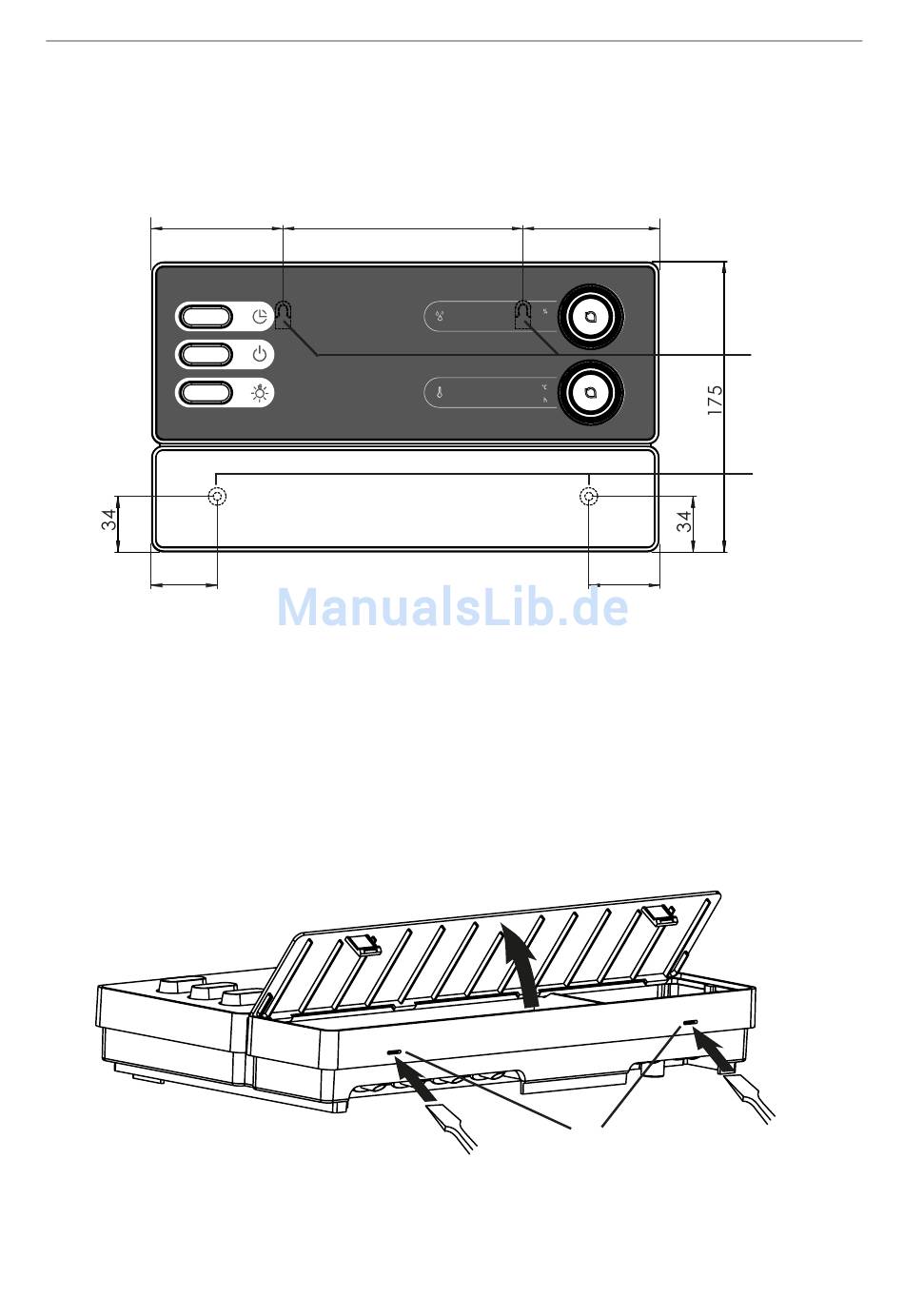

Fig. 1 Position of the attachment device and the installation holes
(dimensions in mm)
2. Press the clip locks C in lightly using a screwdriver and remove the cover
from the housing (see Fig. 2).
3. Fasten the sauna control unit onto the Phillips-head screws using the
attachment device A as an aid (see Fig. 1).
4. Screw two Phillips-head screws (16 mm) into the lower fastening
holes B (see Fig. 1).
Fig. 2 Removing the cover from the housing
WORLD OF WELLNESS
145 82
43
C
p. 14/38
A
B
