Installation instructions, only for experts

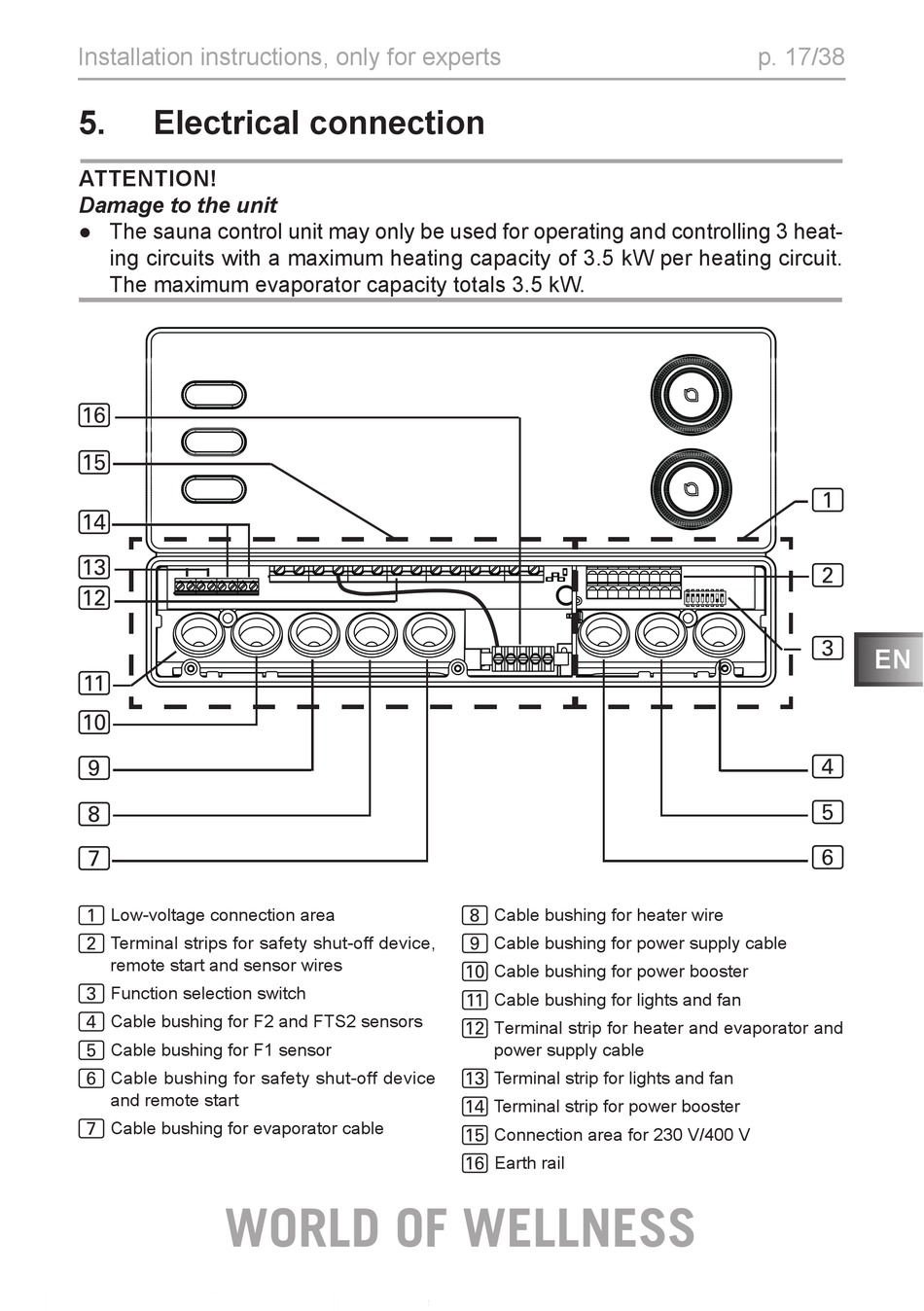

5.

Electrical connection

ATTENTION!
Damage to the unit
● The sauna control unit may only be used for operating and controlling 3 heat-
ing circuits with a maximum heating capacity of 3.5 kW per heating circuit.
The maximum evaporator capacity totals 3.5 kW.
g
f
e
d
c
b
a
9
8
7
1
Low-voltage connection area
2
Terminal strips for safety shut-off device,
remote start and sensor wires
3
Function selection switch
4
Cable bushing for F2 and FTS2 sensors
5
Cable bushing for F1 sensor
6
Cable bushing for safety shut-off device
and remote start
7
Cable bushing for evaporator cable
WORLD OF WELLNESS
8
Cable bushing for heater wire
9
Cable bushing for power supply cable
a
Cable bushing for power booster
b
Cable bushing for lights and fan
c
Terminal strip for heater and evaporator and
power supply cable
d
Terminal strip for lights and fan
e
Terminal strip for power booster
f
Connection area for 230 V/400 V
g
Earth rail
p. 17/38
1
2
3
EN
4
5
6
