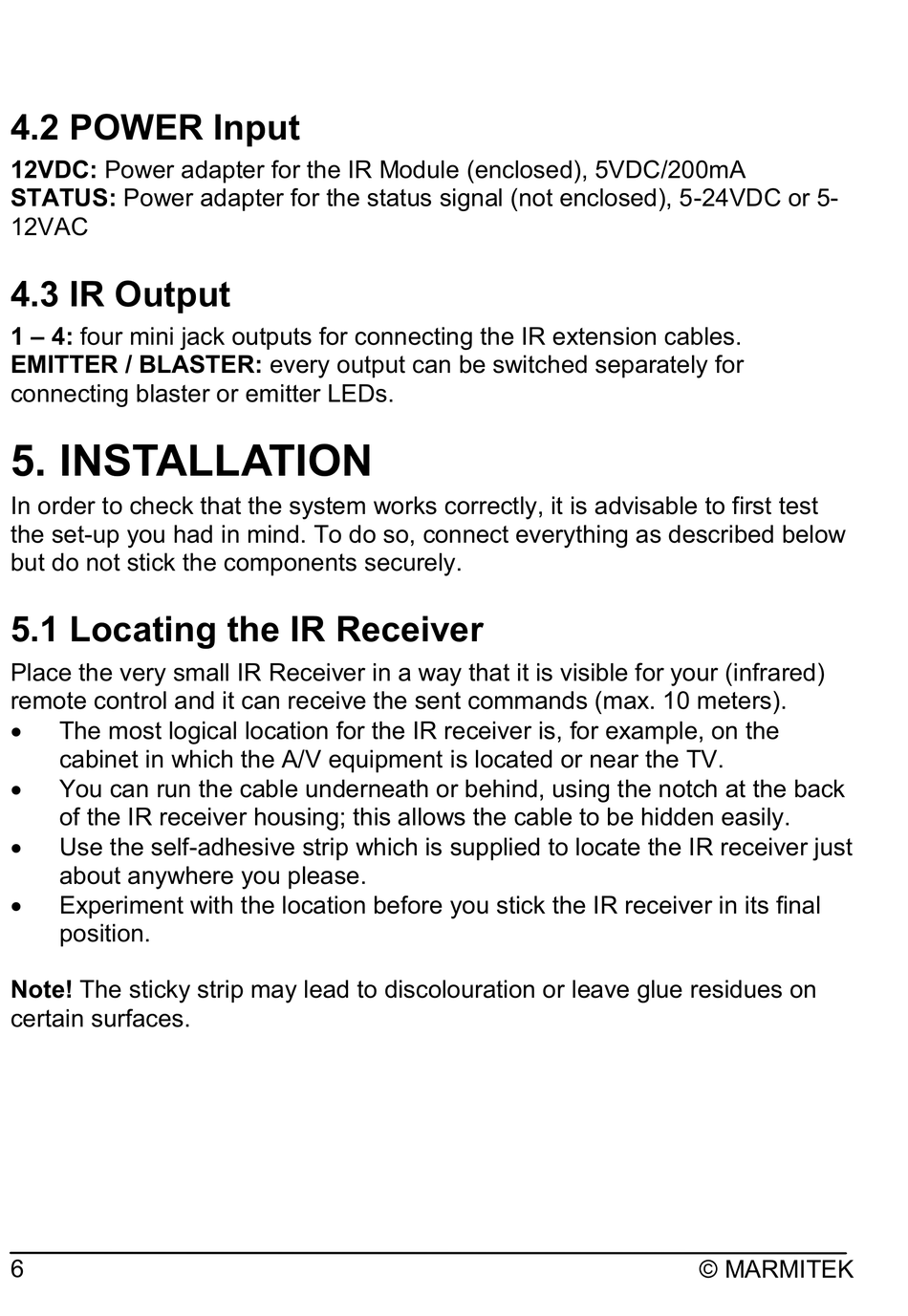

4.2 POWER Input

12VDC: Power adapter for the IR Module (enclosed), 5VDC/200mA
STATUS: Power adapter for the status signal (not enclosed), 5-24VDC or 5-
12VAC

4.3 IR Output

1 – 4: four mini jack outputs for connecting the IR extension cables.
EMITTER / BLASTER: every output can be switched separately for
connecting blaster or emitter LEDs.

5. INSTALLATION

In order to check that the system works correctly, it is advisable to first test
the set-up you had in mind. To do so, connect everything as described below
but do not stick the components securely.

5.1 Locating the IR Receiver

Place the very small IR Receiver in a way that it is visible for your (infrared)
remote control and it can receive the sent commands (max. 10 meters).
x
The most logical location for the IR receiver is, for example, on the
cabinet in which the A/V equipment is located or near the TV.
x
You can run the cable underneath or behind, using the notch at the back
of the IR receiver housing; this allows the cable to be hidden easily.
x
Use the self-adhesive strip which is supplied to locate the IR receiver just
about anywhere you please.
x
Experiment with the location before you stick the IR receiver in its final
position.
Note! The sticky strip may lead to discolouration or leave glue residues on
certain surfaces.
