The IR Control 10™ is made up of three main components;
(1) IR Receiver
The IR Receiver receives infrared commands from your remote control and
sends these onto the IR Module.
(2) IR Module
The IR Module receives infrared commands from the IR Receiver, processes
them and sends them onto all connected IR Extender Cables.
(3) IR extension cable with two emitter LEDs
The IR extension cable receives the infrared commands from the IR Module
and converts them via the IR LEDs into infrared signals. The IR emitter LEDs
have a limited range and therefore they have to be stuck accurately on the IR
receiver window of the A/V device you want to operate.

4. CONNECTIONS

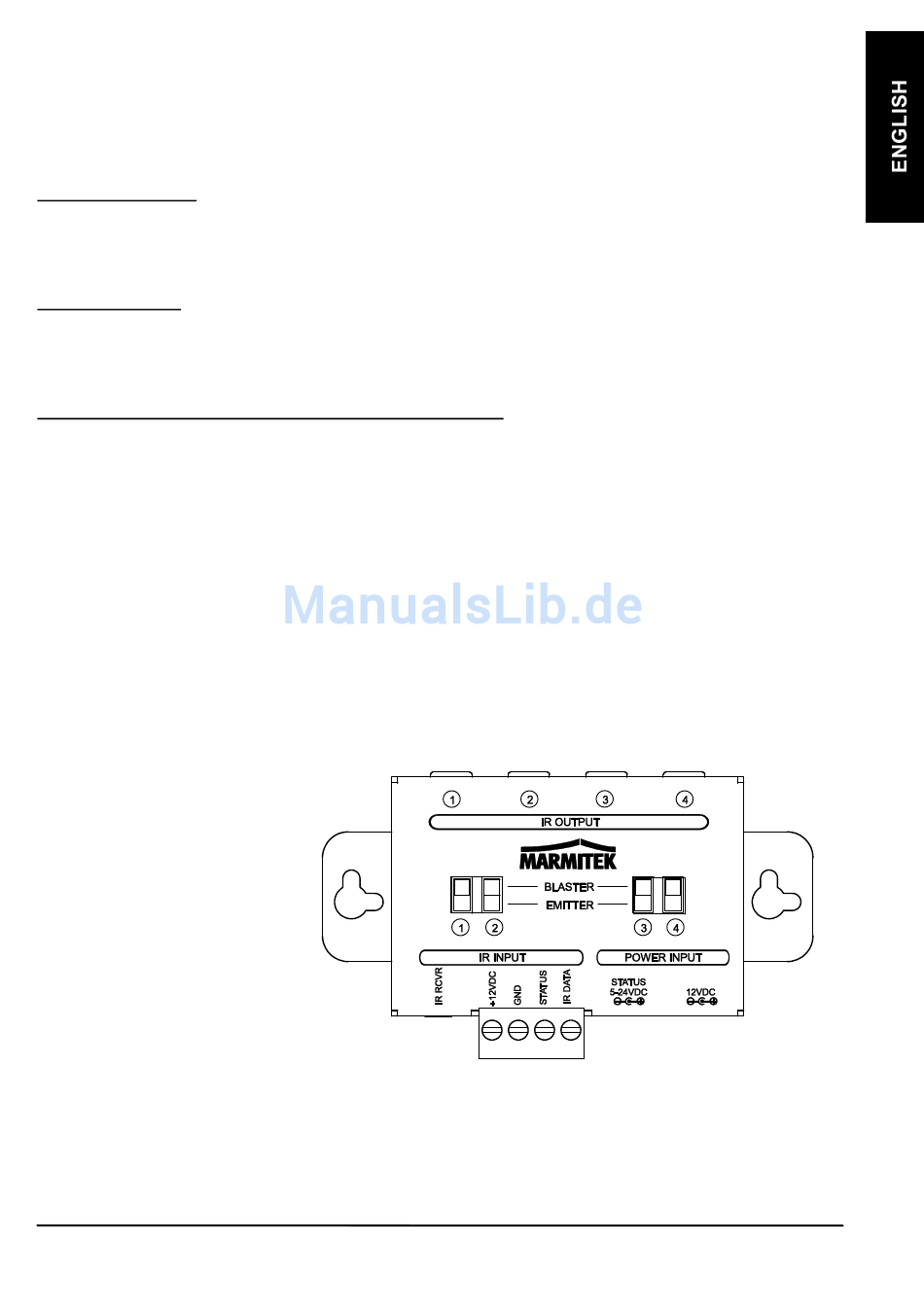

The IR Module is the main component that connects IR Receivers, the power
adapter and IR Extender Cables to one another. All of the IR Module
connections are now explained so that you can get the most out of all of the
options available.

4.1 IR Input

IR RCVR: standard IR
input (3.5mm jack) for
the enclosed IR
Receiver
SCREW TERMINAL: IR
input for connecting up
to 6 IR Receivers in
parallel.
+12VDC: Red GND: Black STATUS: Yellow IR DATA: White
IR CONTROL 10™ 5
