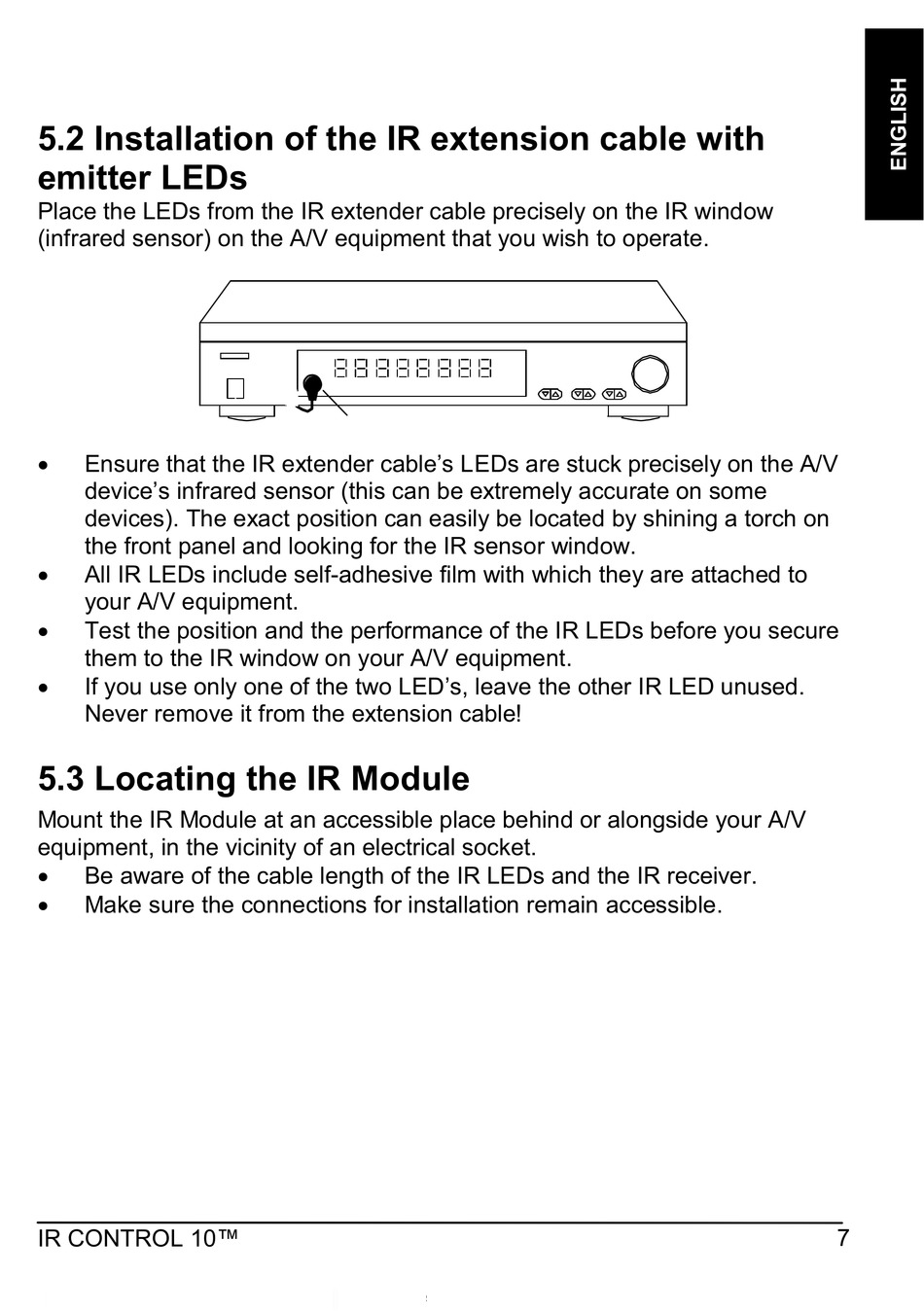

5.2 Installation of the IR extension cable with
emitter LEDs
Place the LEDs from the IR extender cable precisely on the IR window
(infrared sensor) on the A/V equipment that you wish to operate.
x
Ensure that the IR extender cable's LEDs are stuck precisely on the A/V
device's infrared sensor (this can be extremely accurate on some
devices). The exact position can easily be located by shining a torch on
the front panel and looking for the IR sensor window.
x
All IR LEDs include self-adhesive film with which they are attached to
your A/V equipment.
x
Test the position and the performance of the IR LEDs before you secure
them to the IR window on your A/V equipment.
x
If you use only one of the two LED's, leave the other IR LED unused.
Never remove it from the extension cable!

5.3 Locating the IR Module

Mount the IR Module at an accessible place behind or alongside your A/V
equipment, in the vicinity of an electrical socket.
x
Be aware of the cable length of the IR LEDs and the IR receiver.
x
Make sure the connections for installation remain accessible.
IR CONTROL 10™ 7
