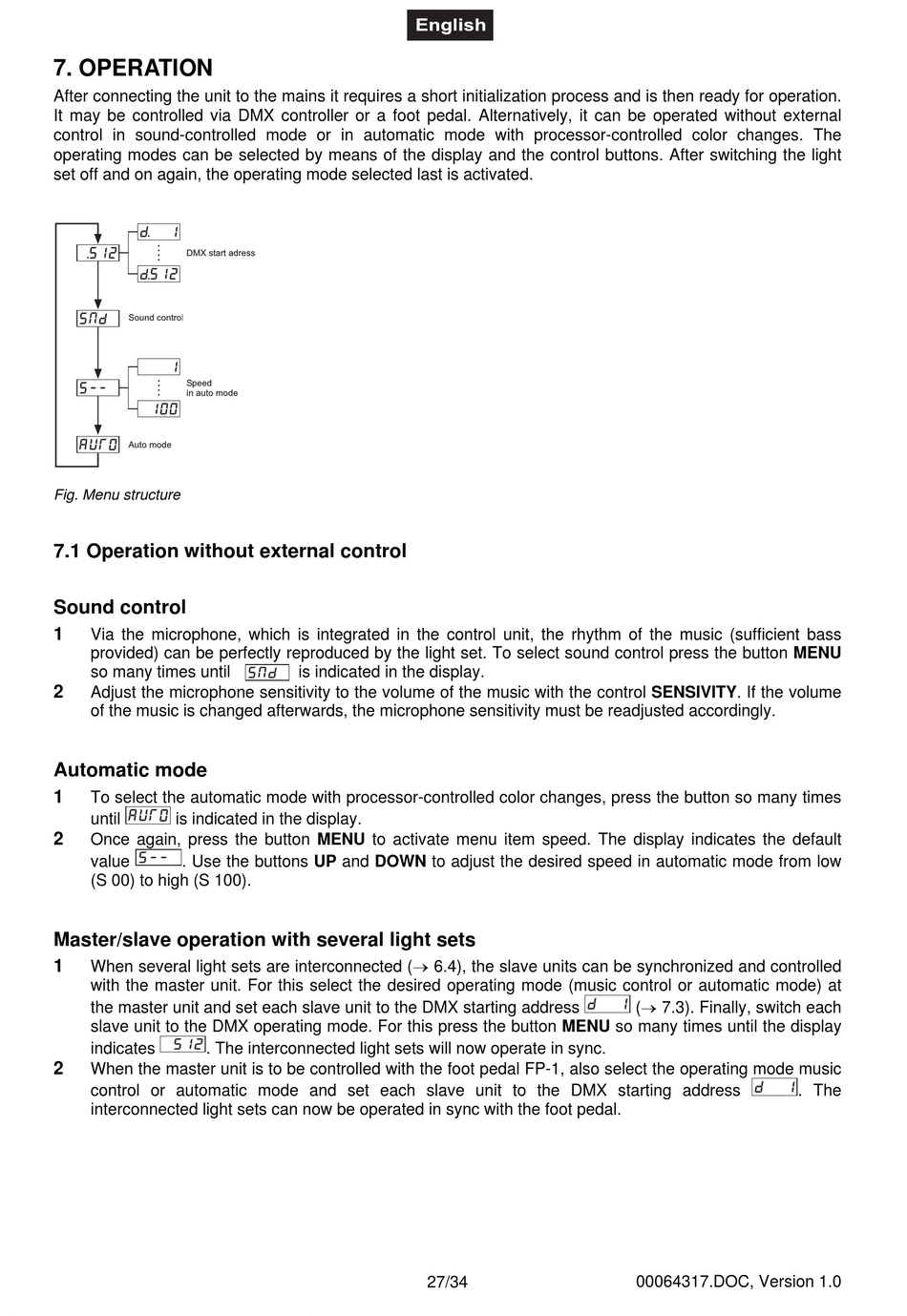

7. OPERATION

After connecting the unit to the mains it requires a short initialization process and is then ready for operation.
It may be controlled via DMX controller or a foot pedal. Alternatively, it can be operated without external
control in sound-controlled mode or in automatic mode with processor-controlled color changes. The
operating modes can be selected by means of the display and the control buttons. After switching the light
set off and on again, the operating mode selected last is activated.
Fig. Menu structure

7.1 Operation without external control

Sound control

1
Via the microphone, which is integrated in the control unit, the rhythm of the music (sufficient bass
provided) can be perfectly reproduced by the light set. To select sound control press the button MENU
so many times until
2
Adjust the microphone sensitivity to the volume of the music with the control SENSIVITY. If the volume
of the music is changed afterwards, the microphone sensitivity must be readjusted accordingly.

Automatic mode

1
To select the automatic mode with processor-controlled color changes, press the button so many times
until is indicated in the display.
2
Once again, press the button MENU to activate menu item speed. The display indicates the default
value . Use the buttons UP and DOWN to adjust the desired speed in automatic mode from low
(S 00) to high (S 100).

Master/slave operation with several light sets

1
When several light sets are interconnected ( 6.4), the slave units can be synchronized and controlled
with the master unit. For this select the desired operating mode (music control or automatic mode) at
the master unit and set each slave unit to the DMX starting address
slave unit to the DMX operating mode. For this press the button MENU so many times until the display
indicates . The interconnected light sets will now operate in sync.
2
When the master unit is to be controlled with the foot pedal FP-1, also select the operating mode music
control or automatic mode and set each slave unit to the DMX starting address
interconnected light sets can now be operated in sync with the foot pedal.
is indicated in the display.
27/34
( 7.3). Finally, switch each
. The
00064317.DOC, Version 1.0
