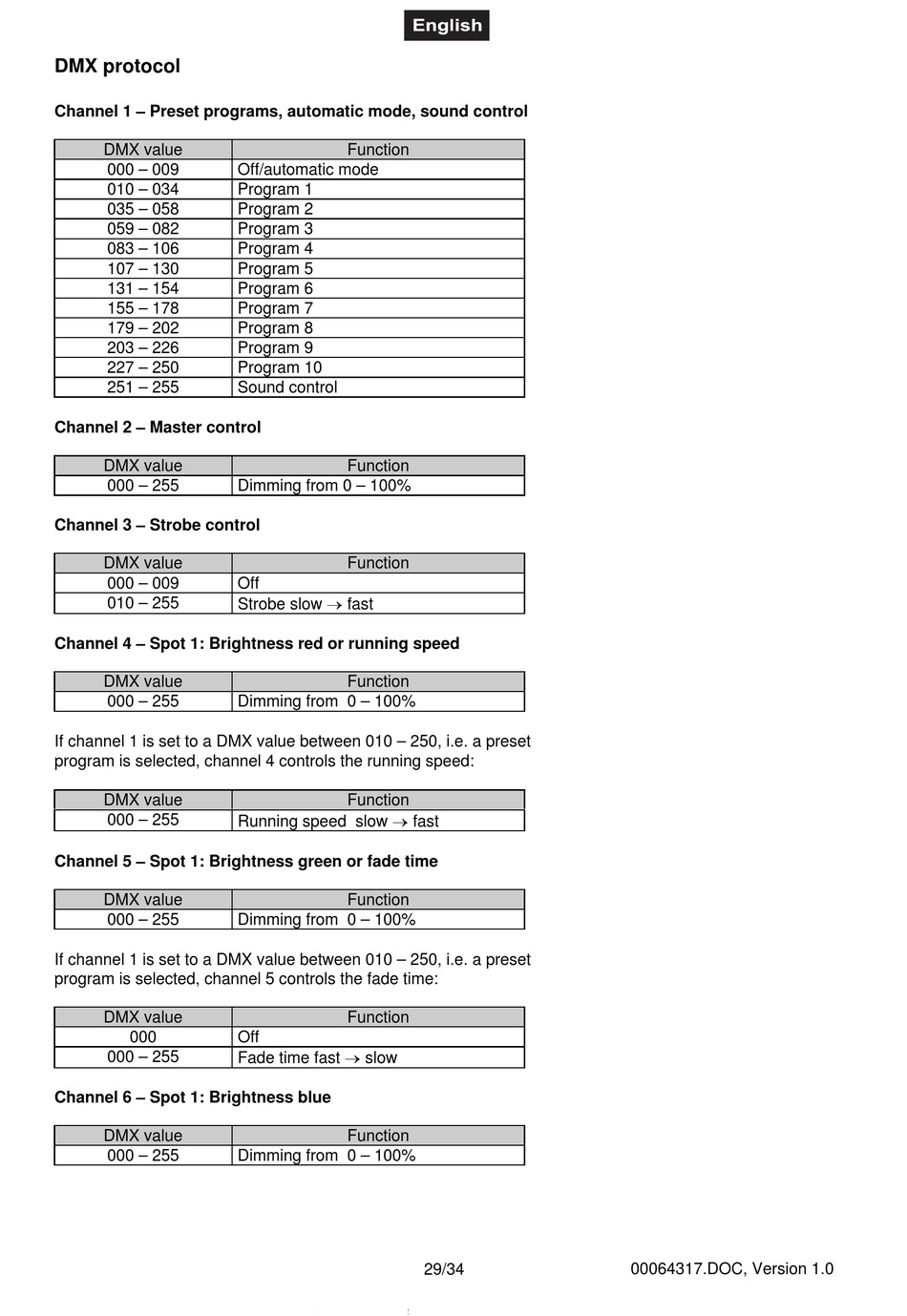

DMX protocol
Channel 1 – Preset programs, automatic mode, sound control
DMX value
000 – 009
010 – 034
035 – 058
059 – 082
083 – 106
107 – 130
131 – 154
155 – 178
179 – 202
203 – 226
227 – 250
251 – 255
Channel 2 – Master control
DMX value
000 – 255
Channel 3 – Strobe control
DMX value
000 – 009
010 – 255
Channel 4 – Spot 1: Brightness red or running speed
DMX value
000 – 255
If channel 1 is set to a DMX value between 010 – 250, i.e. a preset
program is selected, channel 4 controls the running speed:
DMX value
000 – 255
Channel 5 – Spot 1: Brightness green or fade time
DMX value
000 – 255
If channel 1 is set to a DMX value between 010 – 250, i.e. a preset
program is selected, channel 5 controls the fade time:
DMX value
000
000 – 255
Channel 6 – Spot 1: Brightness blue
DMX value
000 – 255
Function
Off/automatic mode
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
Program 8
Program 9
Program 10
Sound control
Function
Dimming from 0 – 100%
Function
Off
Strobe slow  fast
Function
Dimming from 0 – 100%
Function
Running speed slow  fast
Function
Dimming from 0 – 100%
Function
Off
Fade time fast  slow
Function
Dimming from 0 – 100%
