Connect the DMX output of your DMX controller to your DMX input of the light set.
2
Connect the DMX output of the first fixture in the DMX chain to the DMX input of the next fixture. Always
connect one output to the input of the next fixture until all fixtures are connected.
3
At the last fixture, the DMX cable has to be terminated. Plug the terminator with a 120  resistor
between Signal (–) and Signal (+) in the DMX output of the last fixture.

6.4 Wireless DMX transmission with QuickDMX

The light set features an alternative DMX input for a QuickDMX receiver (sold separately). This connector
allows for wireless transmission of DMX control signals to the light set. The connector is designed as a 5-pin
XLR mounting plug which provides the required 5 V operating voltage for the receiver. With QuickDMX
devices, extensive cabling between the DMX controller and the light set is not required.

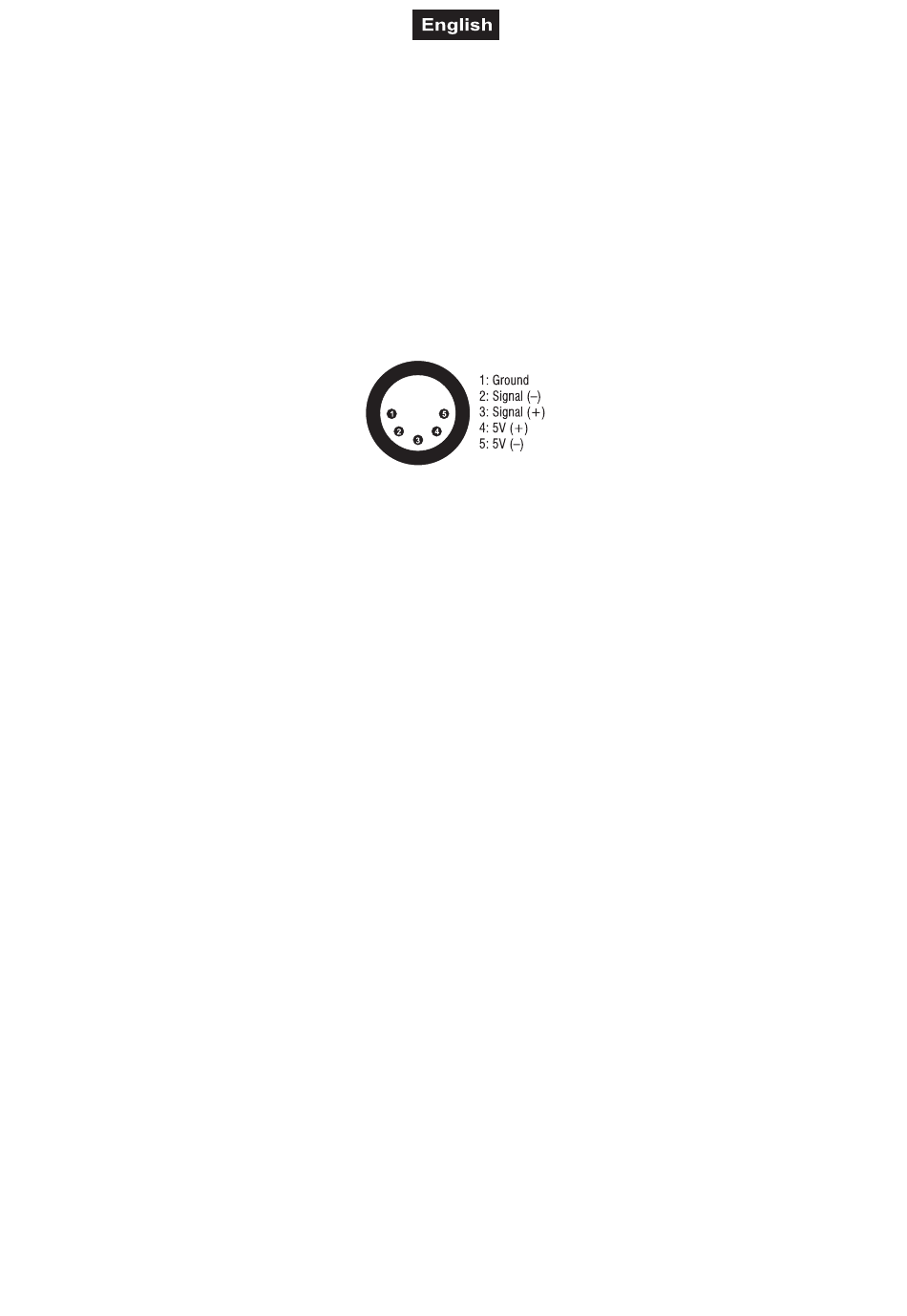

Occupation of the XLR connection:

6.5 Interconnecting several light sets (master/slave operation)

Several light sets may be interconnected. Then all slave units can be synchronized and controlled with the
master unit.
1
Connect the jack DMX OUT of the master unit via a 3-pin XLR cable to the jack DMX IN of the first
slave unit.
2
Then connect the jack DMX OUT of the first slave unit to the jack DMX IN of the second slave unit, etc.
until all units have been connected in a chain.

6.6 Connection to the foot pedal FP-1 or FP-2

Connect the connection plug of the foot pedal to the jack FOOT PEDAL on the control unit.
