OPERATION

After you connected the device to the mains, the device starts running.
Adjusting the beam angle
Disconnect the device from the mains.
In order to adjust the beam angle, please loosen the housing fastening screw (as shown in the chapter
Description of the Device on page 15) and carefully remove the lens tube.
Loosen the four fastening screws on the lens tube and carefully remove the upper part of the lens tube.

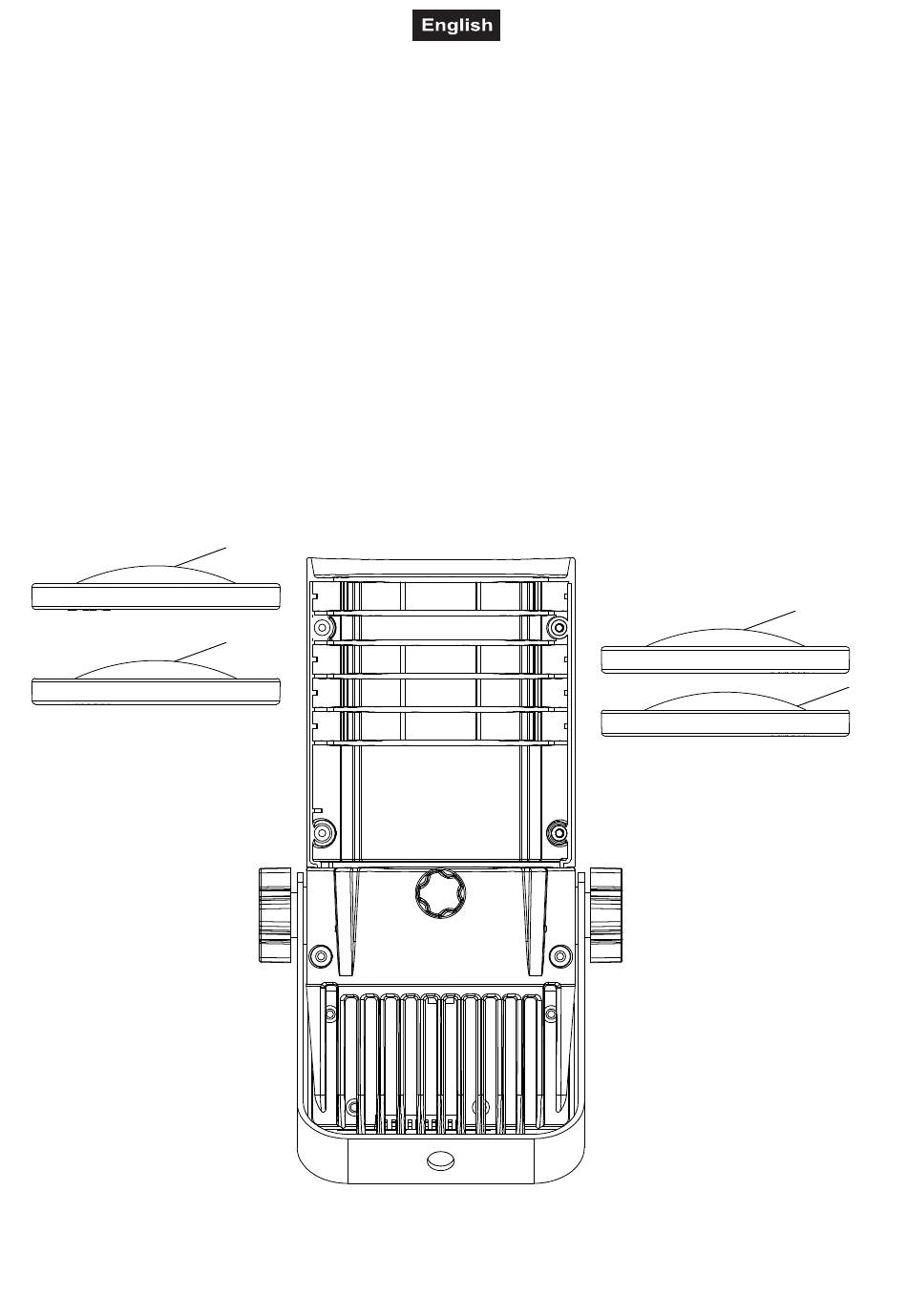

You will now see the available beam angles with the required lens positions (see graphic below).
Select the desired beam angle and place the lens in the corresponding position. Please wear gloves as to not
smudge the lens.
Replace the upper part of the lens tube and tighten the four fastening screws. Then place the lens tube back on the
housing and tighten the housing fastening screw.
10°
18°
10°
15°
18°
22°
17/20
15°
00137467.DOCX, Version 1.0
22°
