Caution: At the last fixture, the DMX-cable has to be terminated. Plug the terminator with a 120
between Signal (–) and Signal (+) in the DMX-output of the last fixture.

Connection with the mains

Connect the device to the mains with the power-plug.
The occupation of the connection-cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
Lighting effects must not be connected to dimming-packs.

OPERATION

After you connected the spot to the mains, the EUROLITE LED PAR-64 W/A 36x1W starts running.
The LED display lights up and you can choose the desired settings.
The device has two operating modes. It can be operated in Stand-Alone or in DMX-controlled mode.
- STAND-ALONE MODE
• Internal Programs
• Sound Control
• Preset Colors
• Custom Static-Color Mixing
- DMX MODE

STAND-ALONE-MODE

In Stand-Alone Mode, the LED PAR-64 W/A 36x1W can be used without a controller.
Disconnect the LED PAR-64 W/A 36x1W from the controller.

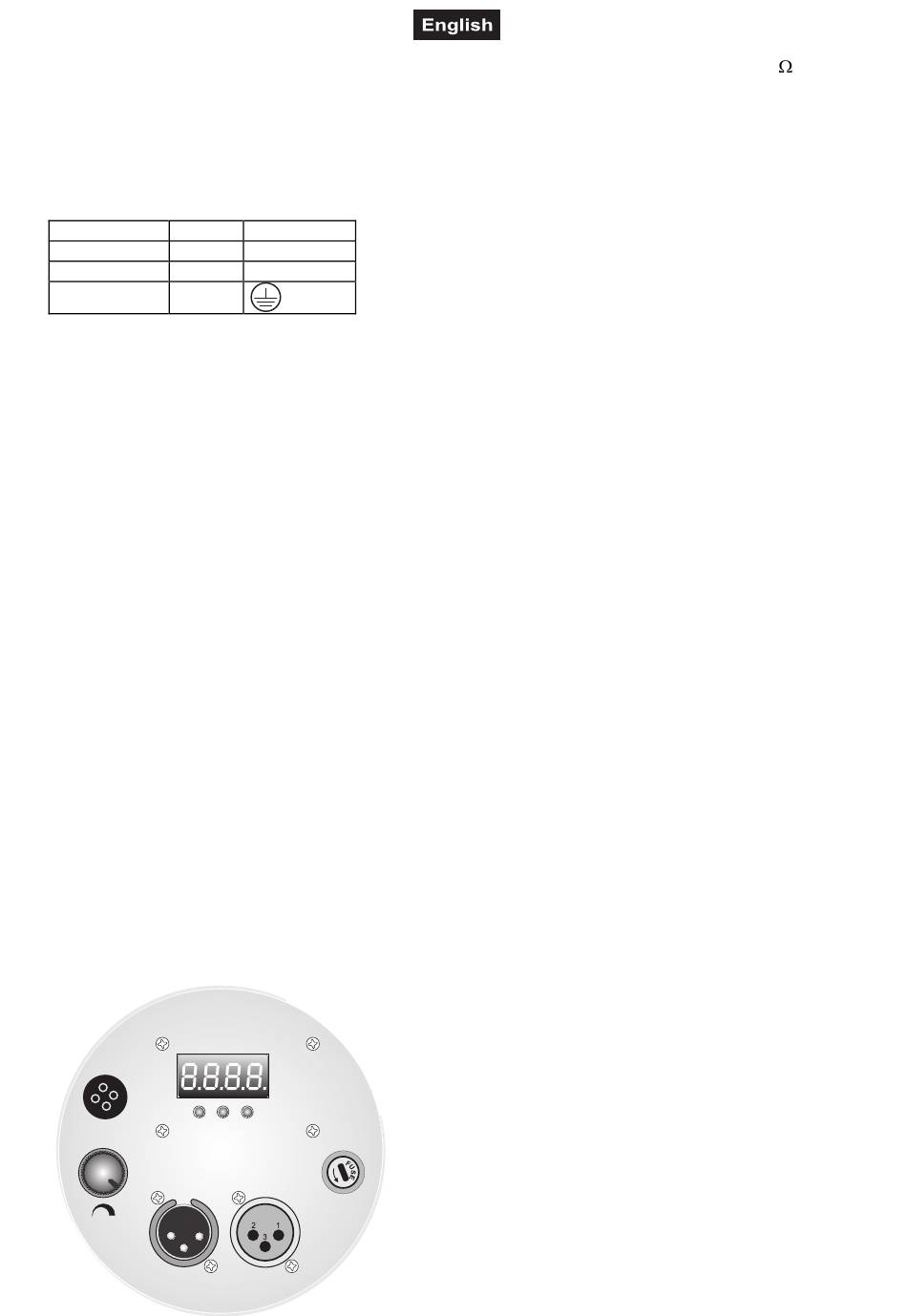

Control Board

Microphone
MODE UP
LIGHTING CONTROL
PROTOCOL DMX-512
Sensitivity
DMX IN
XLR occupation:
1: Ground
2: Signal (-)
3: Signal (+)
International
L
N
DOWN
Fuse: F 1 A, 250 V
DMX OUT
The Control Board offers several features: you can
run the internal programs, set colors, set static-color
mixing or set the starting address.
Browse through the main menu by pressing MODE.
You can change the selection by pressing UP or
DOWN. The functions provided are described in the
following sections (see graphics below).
18/21
resistor
