Type 2000, 2002, 2012
2030, 2031, 2032, 2033

Option: Hand wheel

Type 2030 Control funktions a, B, and I and
Type 2012 Control funktions B and I:
the stop ⑧ is not required.
→
② with spindle extension ① into actuator
Screw guide spindle
(WAF36).
→
③ onto guide spindle ②.
Screw lower nut
→
④ on spindle extension ① and fix with cap screw
Position bridge
⑤ (cap screw M16 x 45, Allan key WAF12). Secure cap screw
⑤ with Loctite 274.
→
③ onto guide spindle ②.
Screw upper nut
→
Set max. and min. stroke by means of upper and lower nuts
and lock in each case with second nut ③.
→
Test valve for function and leaktightness
→
⑥ onto stroke limitation and screw cover ⑦ by hand
Place tube
onto guide spindle ②.
9. oPTIon: hand Wheel
9.1. actuators d-50 bis h-125
③

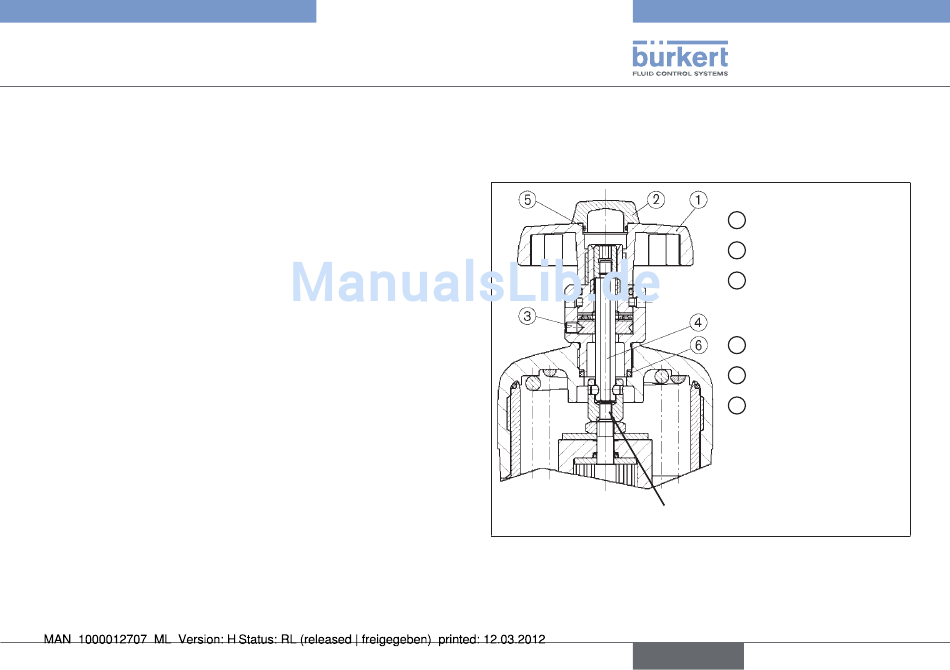

Fig. 9: Actuators D-50 to H-125 with hand wheel
Parts required
1 Hand wheel
2 Transparent cap
3 Setscrew
3 x without locking paint
2 x with locking paint
4 Pull rod
5 O-ring
6 O-ring
Loctite 274
