Type 2000, 2002, 2012
2030, 2031, 2032, 2033

Option: Maximum stroke limitation

7.
oPTIon: MaxIMuM STroKe
lIMITaTIon
without position repeater
7.1.
actuators d-50, e-63 and f-80

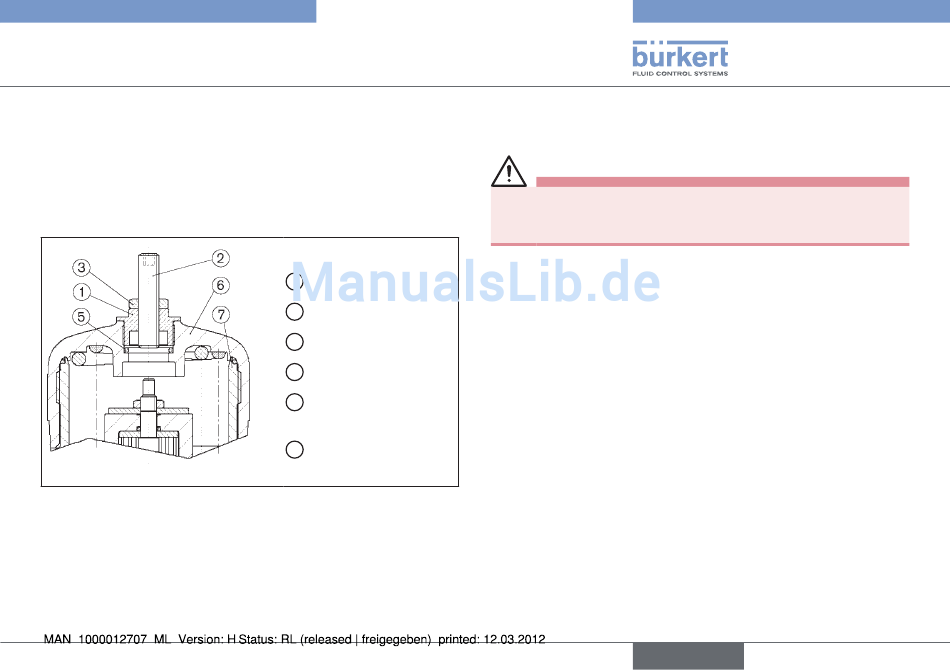

Fig. 3:

Actuators D-50, E-63 and F-80,

maximum stroke limitation without position repeater
Parts required
1 Threaded nipple
2 Setscrew M12 x 1.5
3 Nut M12 x 1.5
5 O-ring (actuator)
6 Acutator cover
(actuator))
7 Sleeve (actuator)
7.1.1.
Work to be carried out before
installation
DAnger!
hazard due to high pressure!
Interrupt the control air and fluid infeed before modifying the
devices and reduce the pressure in the fluid system.
Interrupt supplies of control air and medium
Empty valve housing
.
Unscrew transparent cap
Screw out position indicator with Allan key (
7.1.2.
Installation and commissioning
① into actuator cover ⑥
Screw threaded nipple
• Use flats on tube for wrench (WAF17)
• Max. tightening torque: 15 Nm
Set max. stroke by adjusting the setscrew
② with nut ③.
Secure setscrew
Test valve for function and leaktightness.
english
.
from actuator cover ⑥.
WAF5).
②.
11
