SPECIFICATIONS

Lenght: 400 mm
Width: 310 mm
Height: 180 mm
Tyre Diameter: 110 mm
Weight: 2100 g
Fuel Tank Capacity: 75 cm
3
Chassis: 2.5 mm Alu 6061-T6
Engine: 2.5 cm 3 with pull starter
Radio System: GM-Racing XG-6 Sport Spec 40Mhz FM
How to do / Errors
Problem
Possible Error
No Fuel
Engine is not starting
Glow Plug is not glowing
Wrong Fuel
Engine to hot
Engine Drowned
Air-Filter blocked
Exhaust blocked
Glow Ignitor Empty
Engine Drowned
Engine can not spin
Engine don´t Spin
Idle speed is too low
Engine stops immediately
Glow Plug dirty / Weak
Air bubbles in the fuel tube
Engine to hot
Tank pressure is too low / Tube blocking
A mixture of full fat
Low Engine Power
Engine to hot
Glow Plug leak
Dirty carburetor
Clutch grind
Shaft poorly stored
Engine worn
A mixture of full lean
Engine is hot
A mixture of full fat
Wrong or Broken Fuel
Ventilation blocked
Engine is to hot
Engine swallowed itself
A mixture of full lean
A mixture of full fat
Glow Plug dirty / Weak
Air bubbles in the fuel tube
A mixture of full lean
Engine stops during acceleration
A mixture of full fat
from idle.
Glow Plug dirty / Weak
Idle speed is too low
Fuel is empty
Engine stutter when cornering ride
Idle speed is too low
19 GM-Racing 90507.RTR Radicator Nitro 4WD Racing Truggy
To do
Put Fuel in
Check, if needed Change
Use the Recommended Fuel
Let them cooling
Pull 1Time without Glow Plug
Cleaning, Oil
Cleaning
Charge, Change
On the subject of glow plugs
On the subject of carburetor settings
On the subject of glow plugs
Check the Tube of Holes
On the subject of temperature Check
Cleaning the Fuel Tube
On the subject of Engine Tuning
Engine cooling
Change Glow Plug
Cleaning
Clean / Setting / Repair
looking for faults
New building
On the subject of Engine Tuning
On the subject of Engine Tuning
Try the Right / or a New one
cleaning
on the Subjekt of Engine Tuning
On the subject of Engine Tuning
On the subject of Engine Tuning
On the subject of glow plugs
Check the Tube of Holes
On the subject of Engine Tuning
On the subject of Engine Tuning
On the subject of glow plugs
setting
setting

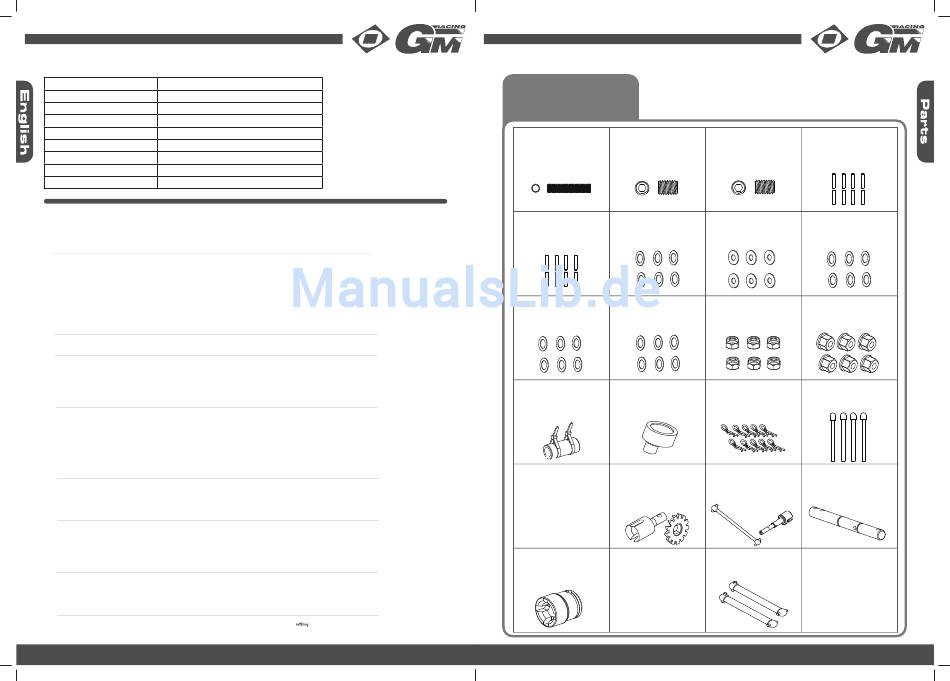

Ersatzteile (4)
Spare Parts
Pièces de rechange
90500.62 90500.63
84000
Madenschrauben M3x3 (8)
Madenschrauben M3x10 (8)
Set screw M3x10 (8) Set screw M3x3 (8)
Vis sans tête CHc M3x10 (8) Vis sans tête CHc M3x3 (8)
90501.51
90500.65 85001
Stift 2x10mm (8) Beilagscheiben 5x8x0.3mm (6)
Shim 5x8x0.3mm (6)
Roll Pin 2x10mm (8)
Rondelle 5x8x0.3mm (6)
Goupille 2x10mm (8)
90501.53 90501.54
86003
Beilagscheiben 6x10x0.3mm (6) Beilagscheiben 10x14x0.3mm (6)
Shim 6x10x0.3mm (6) Shim 10x14x0.3mm (6)
Rondelle 6x10x0.3mm (6) Rondelle 10x14x0.3mm (6)
90503.81 511124 90503.82
Verbinder Krümmer - Schall- Luftfilter komplett
dämpfer Air filter
Silicon exhaust coupler Filtre à air
Raccord pipe d'echappement/
silencieux
90501.58
Folgende Teile passen nur in
Differenzialkegelräder innen groß
neuere Fahrzeuge mit Stahl-
mit Mitnehmer für Knochen
Antriebswellen -
11T differential bevel gear set
The following parts fits
Outdrives différentiels pour des
only in newer cars with
dogbones
steel-dogbones -
(2)
Les parties suivantes
n'installent que dans de récents
véhicules avec des arbres
primaires en acier
90501.60
90501.59 513312
Knochenmitnehmer Mittelantriebs- Knochenmitnehmer Hauptzahnrad
welle Main connecting cup
Entraînement axe de cardan
Connecting cup
Entraînement axe de cardan
GM-Racing 90507.RTR Radicator Nitro 4WD Racing Truggy
84001 90501.50 90500.64
84002
Madenschrauben M4x4 (8) Stift 2x11mm (8)
Set screw M4x4 (8) Roll Pin 2x11mm (8)
Vis sans tête CHc M4x4 (8) Goupille 2x11mm (8)
90500.66
86000 90501.52
86001
Beilagscheiben 4x8x0.5mm (6)
Beilagscheiben 3x6x0.3mm (6)
Shim 4x8x0.5mm (6)
Shim 3x6x0.3mm (6)
Rondelle 4x8x0.5mm (6)
Rondelle 3x6x0.3mm (6)
90501.55 90500.67
86004 87000
Stoppmutter M3 (6) Stoppmutter M4 (6)
Nylon Nut M3 (6) Nylon Nut M4 (6)
Ecrou auto freiné M3 Ecrou auto freiné M4 (6)
511126 90503.83 511129 90503.80
Karosserieclipse (10) Antennenrohr
Body clips (10) Antenna pipe
Clips de carrosserie Tube d'antenne
90160.19 90501.57
511311 513028
Welle Zweiganggetriebe neu
Antriebsknochen (dogbones) und
Mid-differential shaft new
Radachsen Truggy
Shaft set Axe d'embroyage à deux vitesses
Arbres primaires avant
(4)
90160.20
511314 513022
Mittelantriebswellen Truggy
Central shaft set
Entraînement axe de cardan
85000
86002
87001
511123
513313
