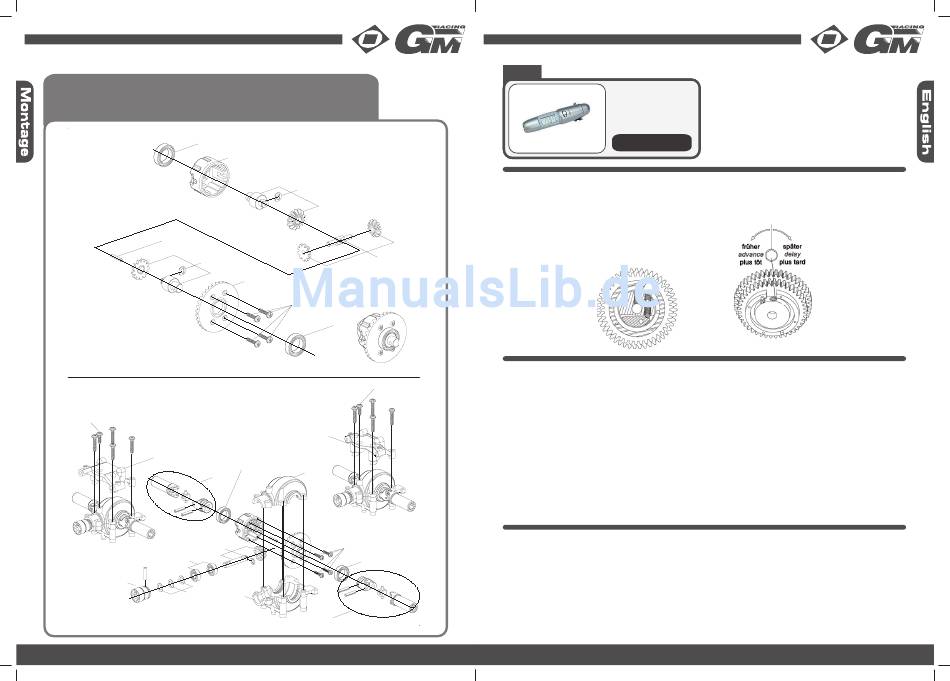

Montage Differenzial
Differential Assembly
Assemblage différentiel
82002(10*15*4mm)
11000
11001
83004(M3*10)
11026
Front 82004
(5*11*4mm)
11006
86004
41 GM-Racing 90507.RTR Radicator Nitro 4WD Racing Truggy
11004
11001
11000
11003
83013(M2*8)
82002
83004(M3*10)
11026
82002(10*15*4mm)
11005
13013
83013(M2*8)
11002
82002(10*15*4mm)
11005
13013
Tipp Tip
TWO-SPEED ADJUSTMENT
The Radicator Nitro comes with an automatic 2 Speed gearbox. Adjust the hexagonal screw in the 2-speed clutch to
control when the 2nd gear will engage.
• To delay the 2nd speed, tighten by 1/8 – ¼ turns clockwise
• To advance the 2nd speed, loose by 1/8 – ¼ turns anticlockwise
SERVICE
In addition to the already described service work should always try to keep your vehicle in order to prevent
wear. If there is dirt in moving parts, this can affect the performance of the model signifi cantly. Remove dirt or
dust with compressed air, a soft brush and / or with a toothbrush. If possible, try using no solvents, as this can
move the dirt in normally inaccessible places and thus cause additional wear. We recommend the following
simple procedures:
• Remove dirt and dust as far as possible with the methods described above.
• Keep the fuel never longer than two hours in the tank.
• At the end of a racing day, remove any fuel from the tank. Clean the air fi lter and drip a little After
Run-Oil (Order-No. 95450) in the carburetor and turn the engine a few times around.
• If necessary, clean the air fi lter and oil it again with Air fi lter Oil (Order-No. 95452) before you put it
back into the car.
• Check the car for worn, broken or gripping parts and repair them if necessary.
• Check regularly the fi xed seating all screws and tighten them if necessary.
Rear

SERVICE AND REPAIR

In problem cases, or for questions and repairs, please contact:
GRAUPNER-Service, Henriettenstrasse 94-96, D-73230 Kirchheim/Teck,
Tel. +49/1805/472876
GM-Racing 90507.RTR Radicator Nitro 4WD Racing Truggy
