GM-Racing 90507.RTR Bedienungsanleitung Seite 15

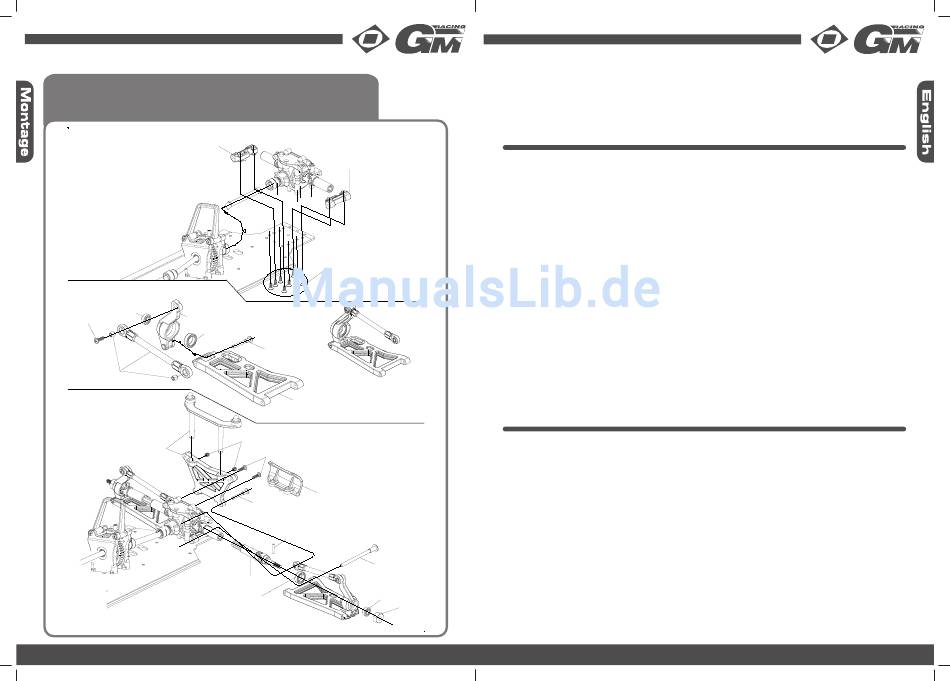

Montage Hinterachse
Rear Assembly
Assemblage arrrière
12006
82004(5*11*4mm)
11034
83004(M3*10)
(10*15*4mm)
13002
13005
45 GM-Racing 90507.RTR Radicator Nitro 4WD Racing Truggy
12006
a b c
d
a a
c
d
83012(M3*10)
82002
11047
13008
83007(M3*5)
83004(M3*10)
13003
11047
85000
11046
13013
82004(5*11*4mm)
82002
(10*15*4mm)
INTRODUCTION
Thank you for buying the Radicator Nitro-RTR by GM-Racing. This introduction contains the basic instruc-
tions for the operation of your new vehicle. The Radicator Nitro is a great model for RC Beginners, but it
also requires a degree of craftsmanship and with drivers under 14 years, the guidance from the parents. It is
important that you read all instructions and the entire printed collateral, so you can operate without causing
unnecessary damage.
Please take a moment to read through it completely before running the model.
SAFTEY PRECAUTIONS
This high-quality RC model should be used with caution and responsibility. Failure to operate this model in a
safe and responsible manner could result in personal and/or property damage. The Radicator Nitro should
not be taken by children without supervision by the parents. Graupner accepts no responsibility for any loss or
damage rising from the operation, not proper use or misuse of this product or other necessary operations to
his product, regardless of whether they directly, indirectly, on detours, accidentally or as a result of its use.
• This model is controlled by radio signals, with infl uences beyond your control. This infl uences can be a
temporary loss of the ability to control the model, so it is advisable to have a safe distance in all directions
to avoid collisions.
• Operate your model on open terrain, away from cars, traffi c and people.
• Never walk out onto the street, for whatever reason.
• Run your Radicator Nitro never with weak batteries.
• Follow carefully to the instructions and warnings for this and any other equipment used by you (Chargers,
rechargeable battery packs, etc.).
• Keep chemicals, hardware and electrical components out of reach of children.
• Fuel is dangerous if not handled carefully. Hold on to all safety precautions and - guidelines dealing with
the fuel tank.
• Keep away fuel and other chemicals from children.
• Keep the fuel tank closed, and never work near fi re or smoke.
• The muffl er exhaust poisonous gases. Run your car always in a well-ventilated area, never run indoors.
• The cylinder head of the engine and the exhaust are in operation and a certain time after extremely hot.
• Make sure not to touch these parts, especially when fi lling the tank!
• The engine is loud. If the noise bothers you, you should have a Ear-Protection.
REQUIRES
To operate your new Radicator Nitro you will need the following:
• 12 alkaline AA batteries e.g. No. 3426, or 12 AA battery cells e.g. No. 3621 (8 for transmitter and 4 for the
receiver)
• Quality Model-fuel - preferably of the type Titan RS16 No. 2642.2L with 16% nitro (or Titan RS25 No.
2643.2L with 25% nitro content)
• Fuel bottle No. 98032
• 1.2 V Glow Ignitor, as possible with measuring device No. 3248 (or No. 98031 with charger)
• Charger for the transmitter battery e.g. No. 6427 and Glow Ignitor No. 6431
• or Nitro-Startset 90504
11051
GM-Racing 90507.RTR Radicator Nitro 4WD Racing Truggy 14
