PG-MB60X

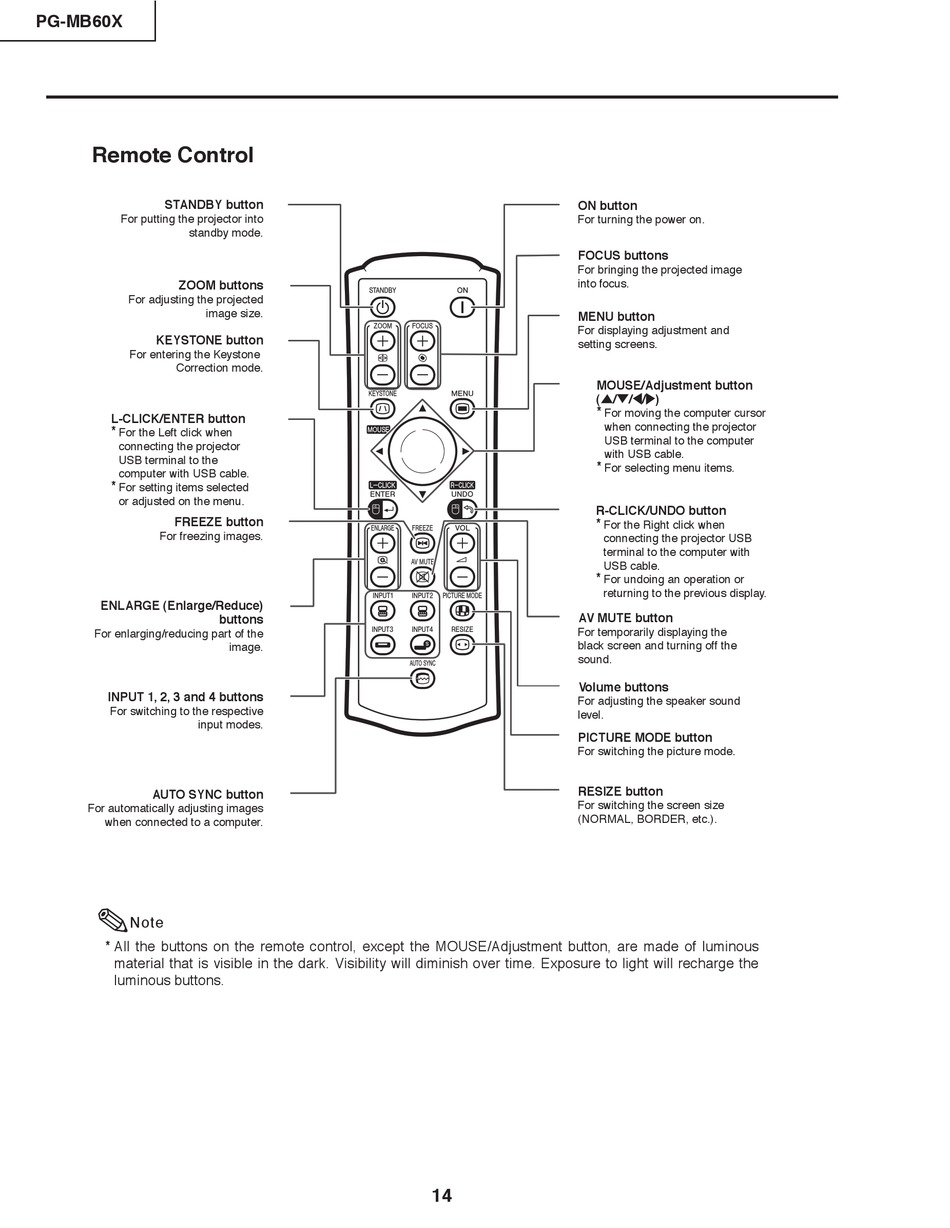

Remote Control

STANDBY button
For putting the projector into
standby mode.
ZOOM buttons
For adjusting the projected
image size.
KEYSTONE button
For entering the Keystone
Correction mode.
L-CLICK/ENTER button
*
For the Left click when
connecting the projector
USB terminal to the
computer with USB cable.
*
For setting items selected
or adjusted on the menu.
FREEZE button
For freezing images.
ENLARGE (Enlarge/Reduce)
For enlarging/reducing part of the
INPUT 1, 2, 3 and 4 buttons
For switching to the respective
input modes.
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
Note
* All the buttons on the remote control, except the MOUSE/Adjustment button, are made of luminous
material that is visible in the dark. Visibility will diminish over time. Exposure to light will recharge the
luminous buttons.
29
32
31
35
34
buttons
image.
33
48
29
ON button
For turning the power on.
32
FOCUS buttons
For bringing the projected image
into focus.
40
MENU button
For displaying adjustment and
setting screens.
24·40
MOUSE/Adjustment button
('/"/\/|)
*
For moving the computer cursor
when connecting the projector
USB terminal to the computer
with USB cable.
*
For selecting menu items.
R-CLICK/UNDO button
*
For the Right click when
connecting the projector USB
terminal to the computer with
USB cable.
*
For undoing an operation or
returning to the previous display.
34
AV MUTE button
For temporarily displaying the
black screen and turning off the
sound.
33
Volume buttons
For adjusting the speaker sound
level.
35
PICTURE MODE button
For switching the picture mode.
36
RESIZE button
For switching the screen size
(NORMAL, BORDER, etc.).
14
