PG-M15X
PG-M15S
AN-M15T

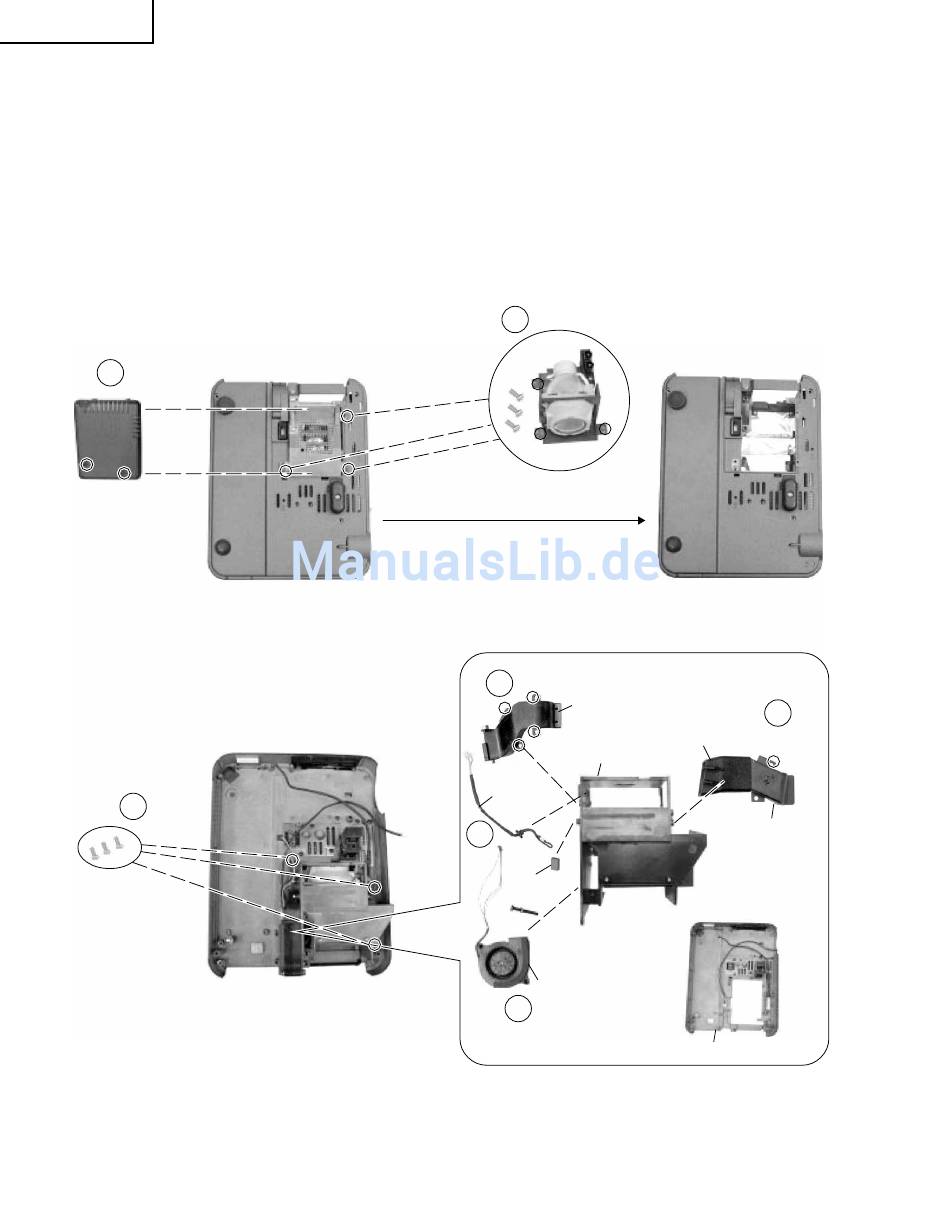

4. Disassemble Lamp Housing
4-1. Loosen two screws and remove Lamp Cover.
4-2. Loosen three screws and lift Lamp.
4-3. Remove screw and detach Output Air Guide and Output Rubber duct.
4-4. Remove three screws and detach Lamp Housing.
4-5. Remove screw and nut then detach Fan from Lamp Housing.
4-6. Remove four screws and detach Blower Wind Guide from Lamp Housing.
4-7. Remove thermal Fuse from lamp Housing.
4-1
Lamp Cover
4-4
Lamp
4-2
4-6
Blower Wind
Guide
Lamp Housing
Thermal
Fuse
4-7
Spacer
Fan
4-5
20
4-3
Output
Rubber duct
Output
Air Guide
Bottom Cover
