Sensor connections, coax
cables
3
1 2 3
+ -
1
When mounting the transmitter, respect the following instructions:
Version with a PVDF sensor:
- connect the earth wire to the terminal N°4 of the connector N°3
- connect the flat cable to the connector N°1
- connect the coax cables to the connectors N°2 by respecting the connecting
order
- replace all the seals
- orient the lug properly (see 3.1.1)
- fasten the sensor fastening screw
Version with a stainless steel sensor:
- connect the earth wire to the terminal N°4 of the connector N°3
- connect the flat cable to the connector N°1
- connect the coax cables to the connectors N°2 by respecting the connecting
order
- replace all the seals
- orient the sensor so that the alignment of the electrodes is perpendicular to
the arrow on the side of the housing (see 3.2)
- fasten the sensor fastening screw

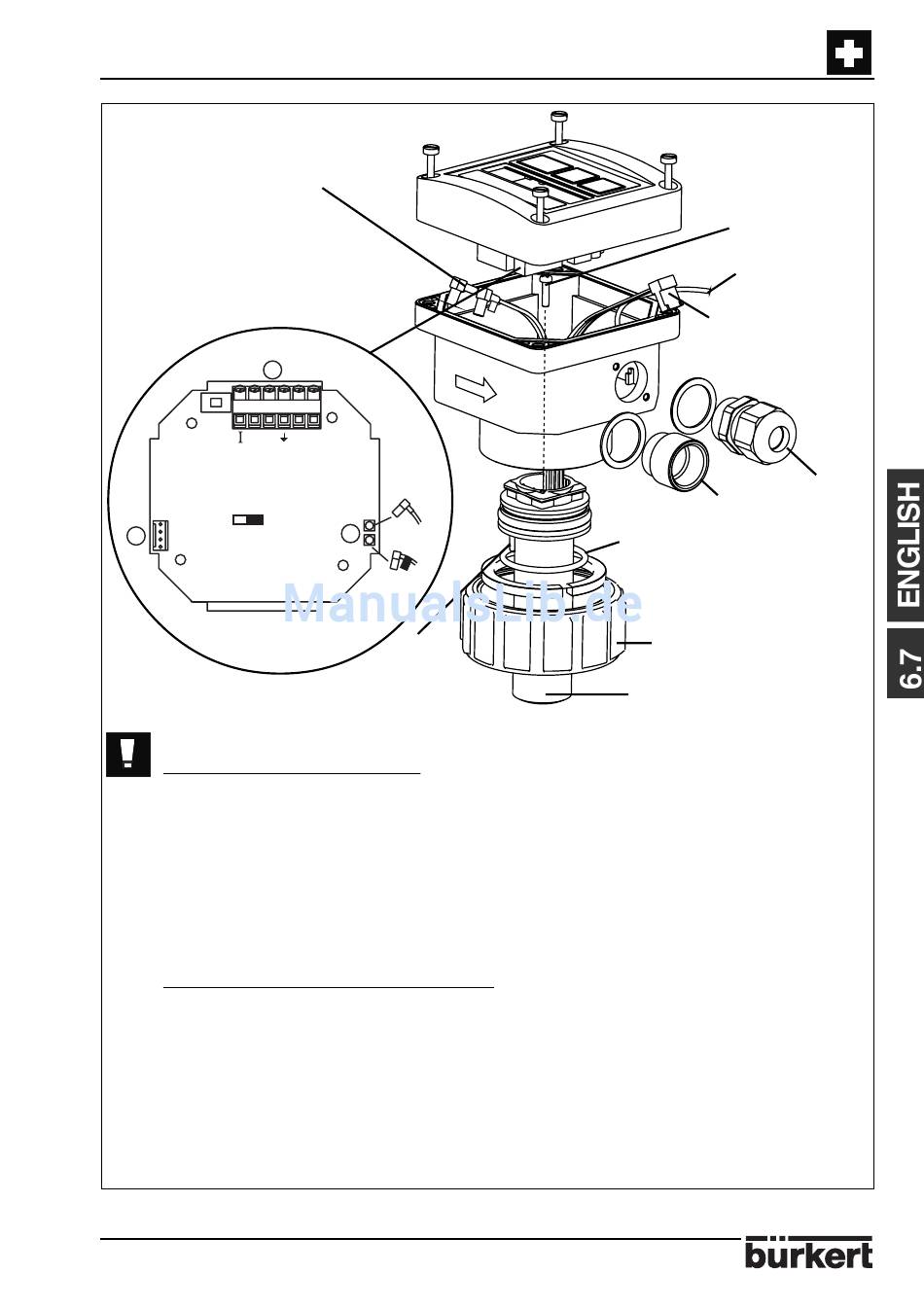

Fig. 6.1 Spare parts exploded view of the 8045 electromagnetic flow transmitter
8045
ANNEX
4 5 6
P+ P-
2
Lug
Seal
Nut
Sensor
43
Sensor fastening
screw
Earth wire
Sensor
connection, flat
cable
c a b l e
G1/2''
gland
