9.0. REGULATION

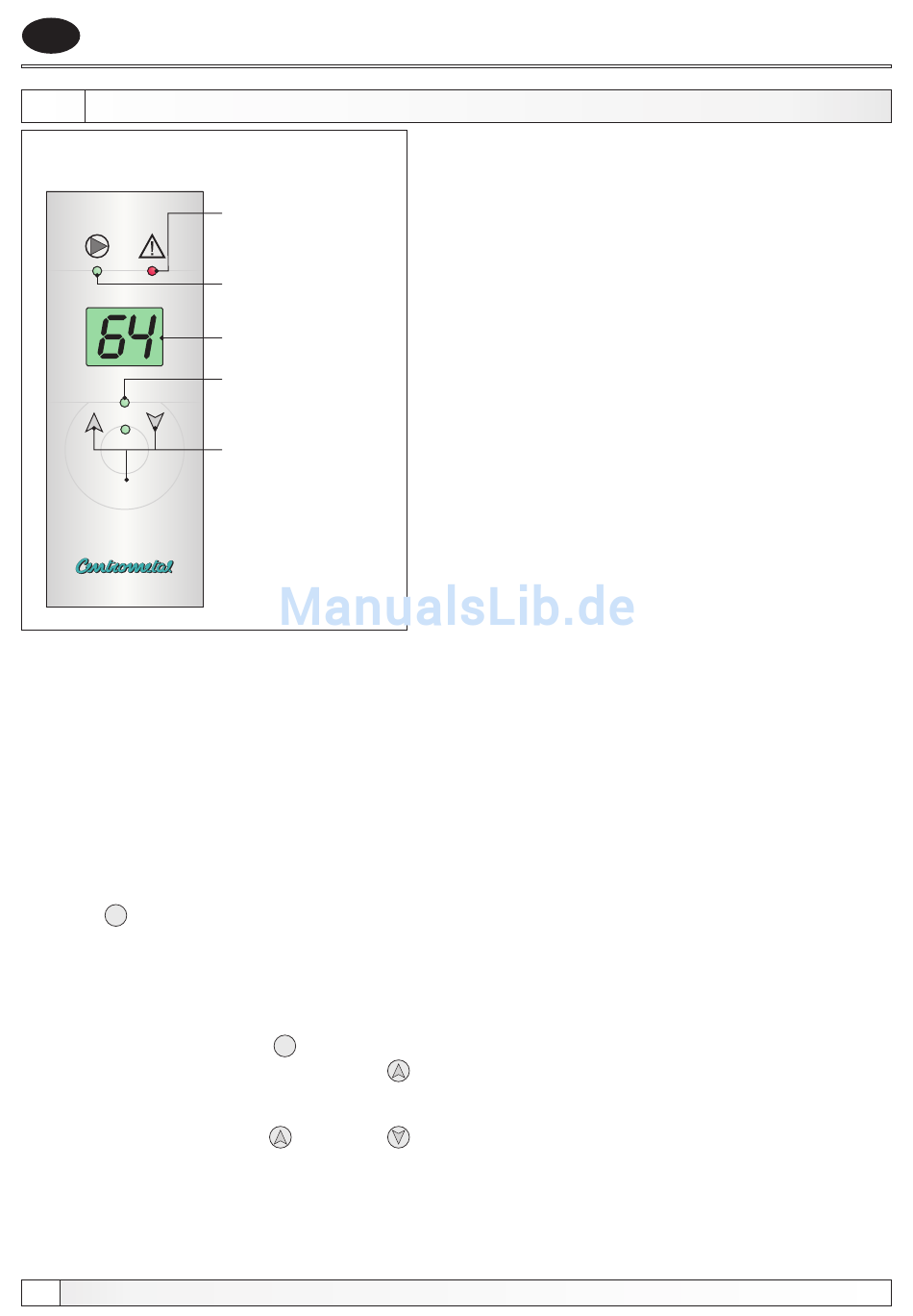

Picture 5. - Digital regulation
P
TEHNIKA GRIJANJA
The regulator of the El-Cm Compact measures the temperature and compares it with the set up
(desired) temperature. On this basis it searches for the optimal apportionment of the power used for
the system heating to the desired temperature. The regulator is switched off/on by means of the
room thermostat (by turning off the 230V supply). This regulator is self accommodating to the
system in which it is integrated, because immediately after the start-up it finds the optimal power
regime in order to maintain the temperature level as much as possible near to the desired level. In
the same time it reaches the minimum energy consumption, by accomplishing the optimal balance.
On the steering board is visible an display, the buttons and the LED-diode.
The buttons are aimed to change displayed values and to choose adjustable parameters inside
the regulator. During the operation, the display shows the measured temperature. By pressing the
button P , after 6 seconds the display shows the set up temperature.
POSSIBLE PARAMETER CHANGES:
Setting the desired electric boiler temperature
By pressing the button
simultaneously pressing the pointer up
MOD, in which the desired temperature can be chosen. This is marked by points on the display.
By pressing the button up
the display has shown the desired temperature, the button should not be pressed any more. After
few seconds the regulator shall reestablish normal functioning and start to display the measured
temperature.
The regulation memorize the set up parameters!
28
Error (LED-diode)
Pump (LED-diode)
Display
Operation of el.
heater (LED-diode)
Function button
P , after the desired temperature level has been displayed and
and down
, the LCD- display shall show the temperature in the
, the desired temperature level can be changed. After
