Essential parts

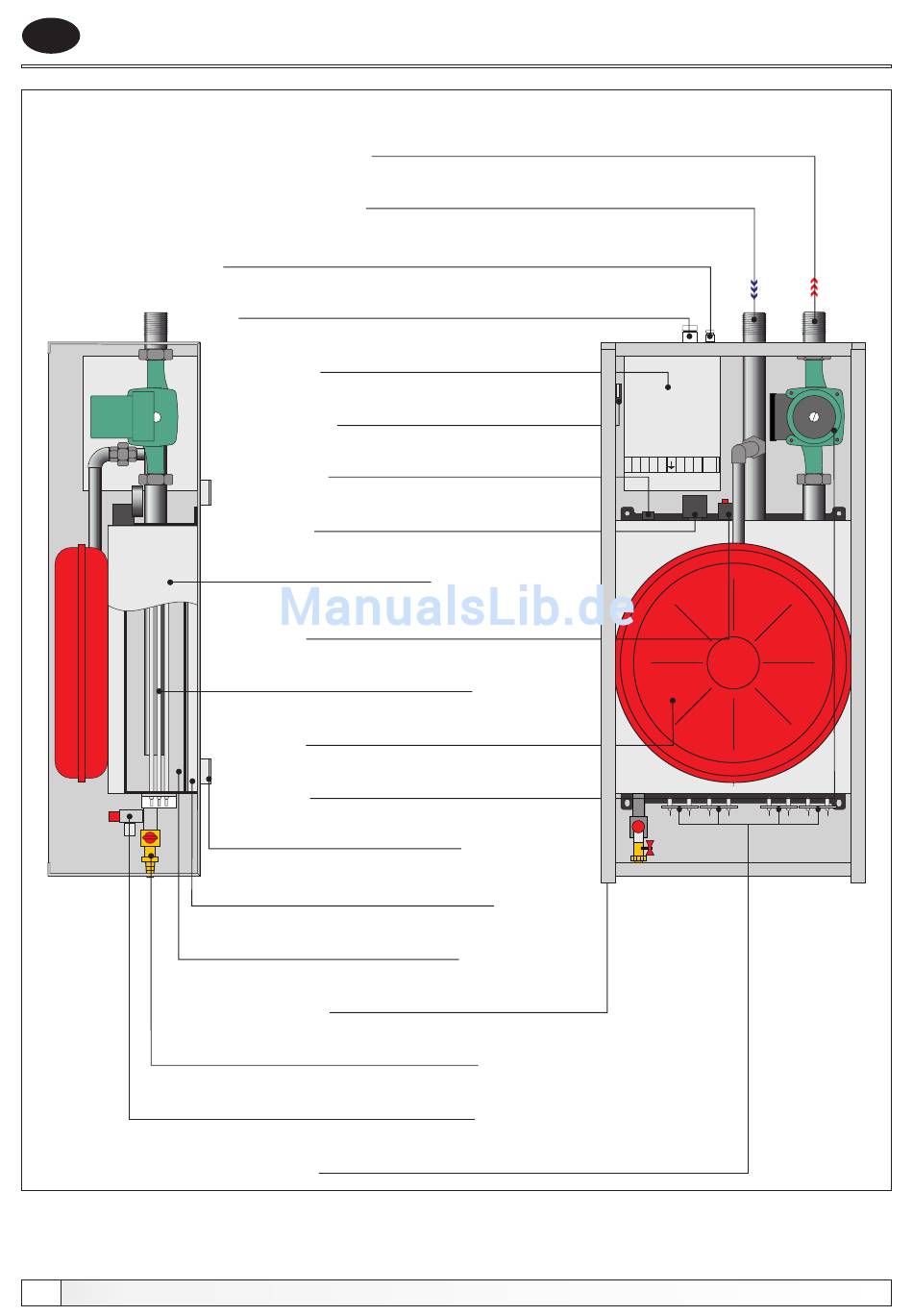

Picture 2. - Essential parts of the electric boiler El-Cm Compact
Inlet
Outlet
Wire introducer (room thermostat)
Wire introducer (power supply)
Regulation box
Microswitch
Sensor probe
L L L N 1 2 3
1 2 3
Pressure switch
Boiler
Safety thermostat
Electric heater
Expansion vessel
Circulation pump
Boiler porter
Thermal insulation
Boiler body
Boiler casing
Filling/Draining
Security valve
Electric heaters
