5.0. CONNECTING THE El-Cm Compact TO THE CENTRAL HEATING SYSTEM
Connecting to tube installation of the central heating system and the start-up of the electric boiler
has to be executed considering all technical standards and norms, on behalf of the authorized
person, who is able to take over the responsibility.
Depending of the size of the space, which we would like to be heated, its purpose and heat losses,
the proper capacity of the electric boiler has to be chosen.

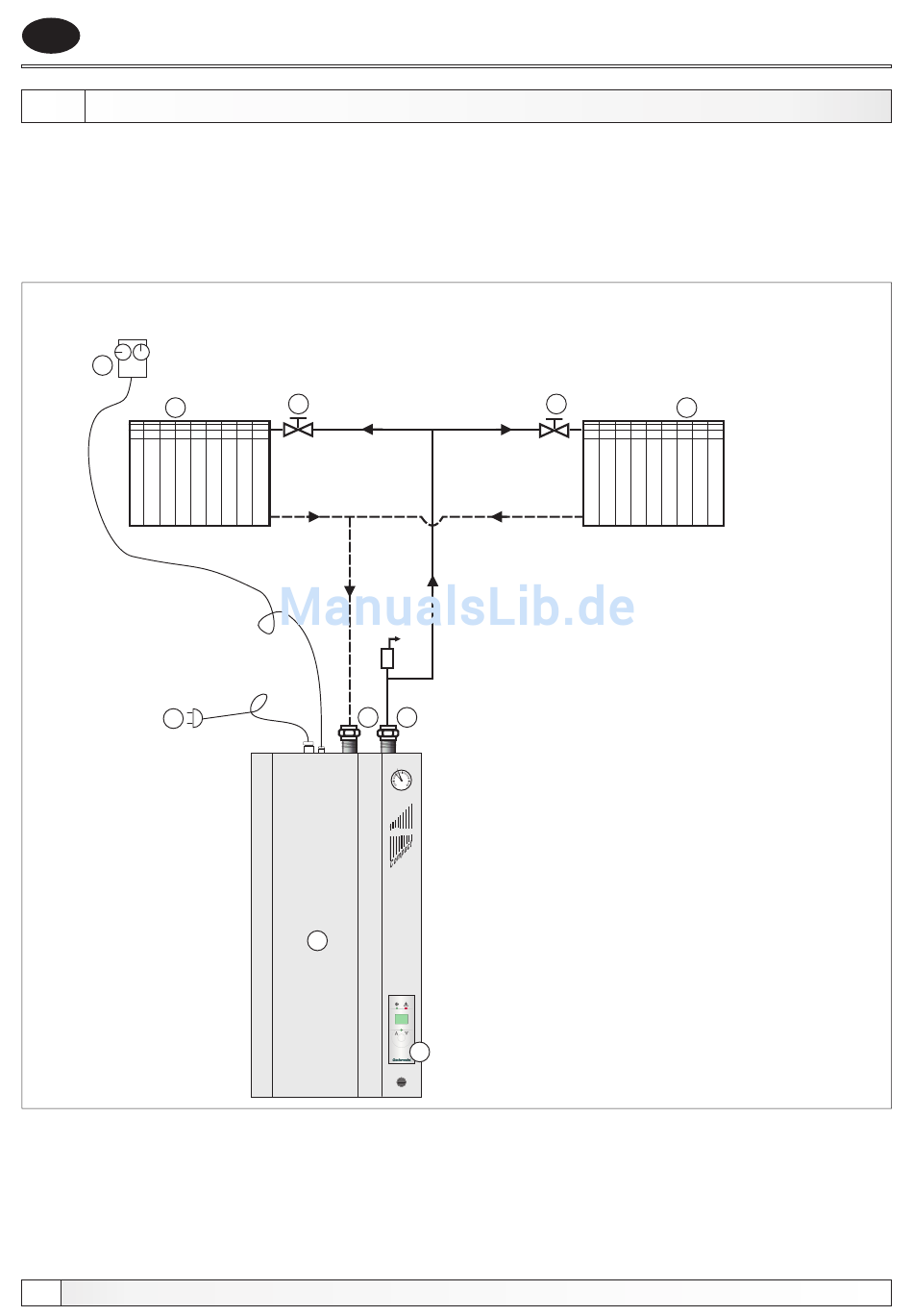

Picture 4. - Principle scheme for the connection of the electric boiler El-Cm Compact to the
installation of central heating system
6
3
7
22
Connecting to the central heating system
4
5 5
2
1 3
0 4
bar
El-Cm
1
64
P
2
1
0
4
1. Electric boiler El-Cm Compact
2. Digital regulation
3. Radiator
4. Valve
5. Removable (holender) connection
6. Room thermostat
7. Power supply
