Replacement of the el. heaters
7.0. TECHNICAL DATA
- tension:.............................................................................................400V / 50Hz
- el. boiler steering mode:.....................................................modulating regulation
- electronic part consumption:...............................................................max. 10 VA
- regulation area:........................................................................................20-85°C
8.0. REPLACEMENT OF THE ELECTRIC HEATER
Before You take off the front cover it is necessary to disconnect the power supply. Then we take off the
front cover and lower side of the casing (which are fasten with the screws). Before we take off the
electric heater it is necessary to empty the electric boiler with water and disconnect the wires from the
el. heater. When You put on the new electric heater it is necessary to seal it, connect the wires to the
electric heater and attach the lower side of the cover and front cover with the screws back on the
place.

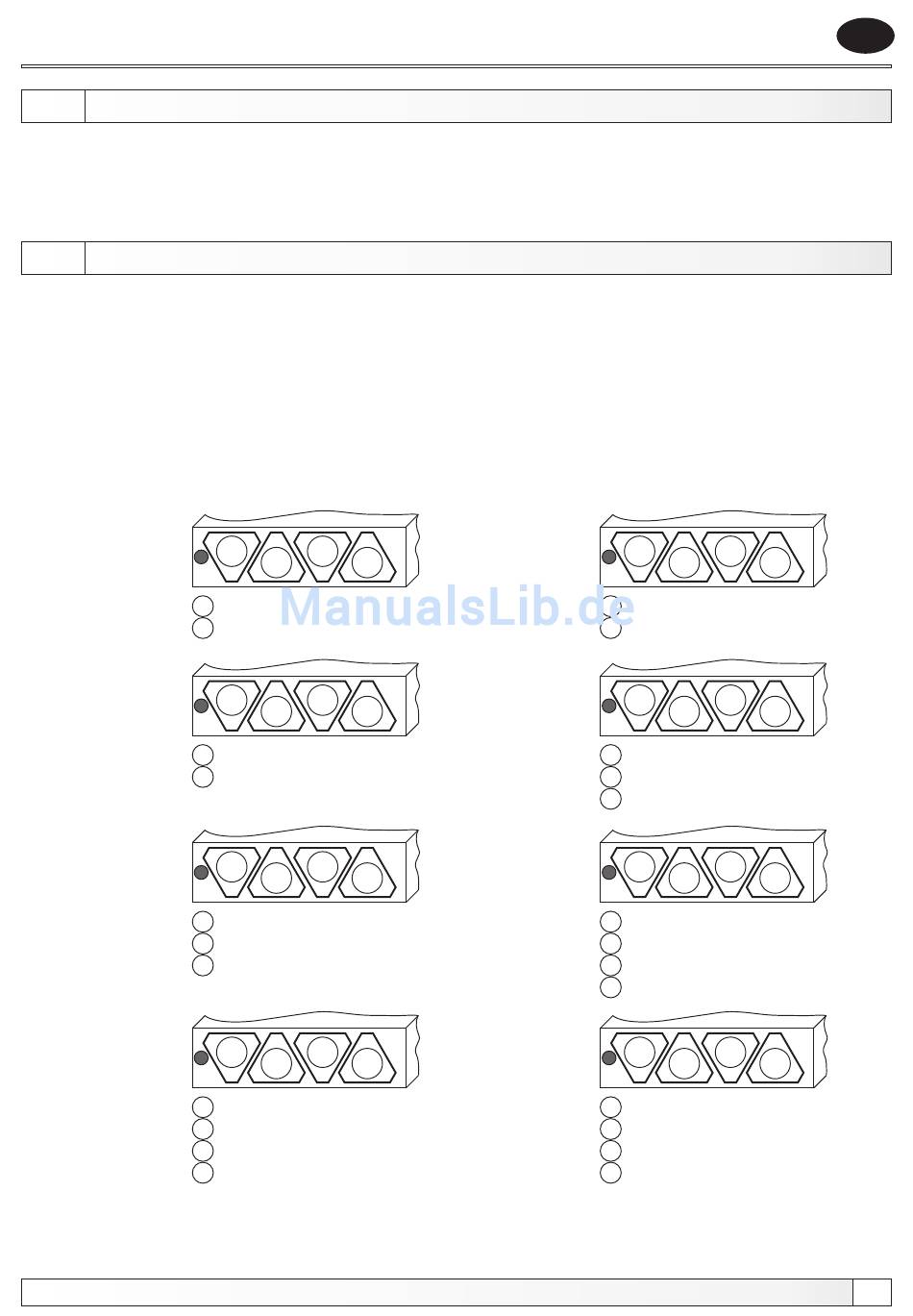

Position of electrical heaters on the bottom side of boiler.
6 kW
12 kW
18 kW
24 kW
Technical manual El-Cm Compact Technical manual El-Cm Compact
1
2
1 = 3 x 1.000 W
2 = 3 x 1.000 W
1
2
1 = 3 x 2.000 W
2 = 3 x 2.000 W
1 3
2
1 = 3 x 2.000 W
2 = 3 x 2.000 W
3 = 3 x 2.000 W
1 3 4
2
1 = 3 x 2.000 W
2 = 3 x 2.000 W
3 = 3 x 2.000 W
4 = 3 x 2.000 W
9 kW
1
1 = 3 x 1.000 W
2 = 3 x 2.000 W
15 kW
1
1 = 3 x 1.000 W
2 = 3 x 2.000 W
3 = 3 x 2.000 W
21 kW
1
1 = 3 x 1.000 W
2 = 3 x 2.000 W
3 = 3 x 2.000 W
4 = 3 x 2.000 W
27 kW
1
1 = 3 x 2.250 W
2 = 3 x 2.250 W
3 = 3 x 2.250 W
4 = 3 x 2.250 W
EN
2
3
2
3 4
2
3 4
2
