Installation of electric boiler
4.0. INSTALLATION OF ELECTRIC BOILER
The El-Cm Compact electric boiler is aimed to be hanged on the wall. For the easier setting on the
wall, there is a hanging console on its back part which is to be hanged on wall metal dowels of M10
type or even stronger. Electric boiler has to be hanged on the height of min. 0,6 m from the floor,
because of the eventual electric heater exchange. The distance of the side wall has to be min 0,3
m, in order to easier the approach to the boiler. The electric boiler has to be positioned on the
lowest point of the whole installation. If there is a lack of space and therefore the electric boiler has
to be installed on the highest point, an airvent vessel has to be connected on its exit point with a
minimum of water content (cca. 1 lit.). This vessel has to be connected with an airvent pot. We
suggest the connection to be executed by the authorized person.

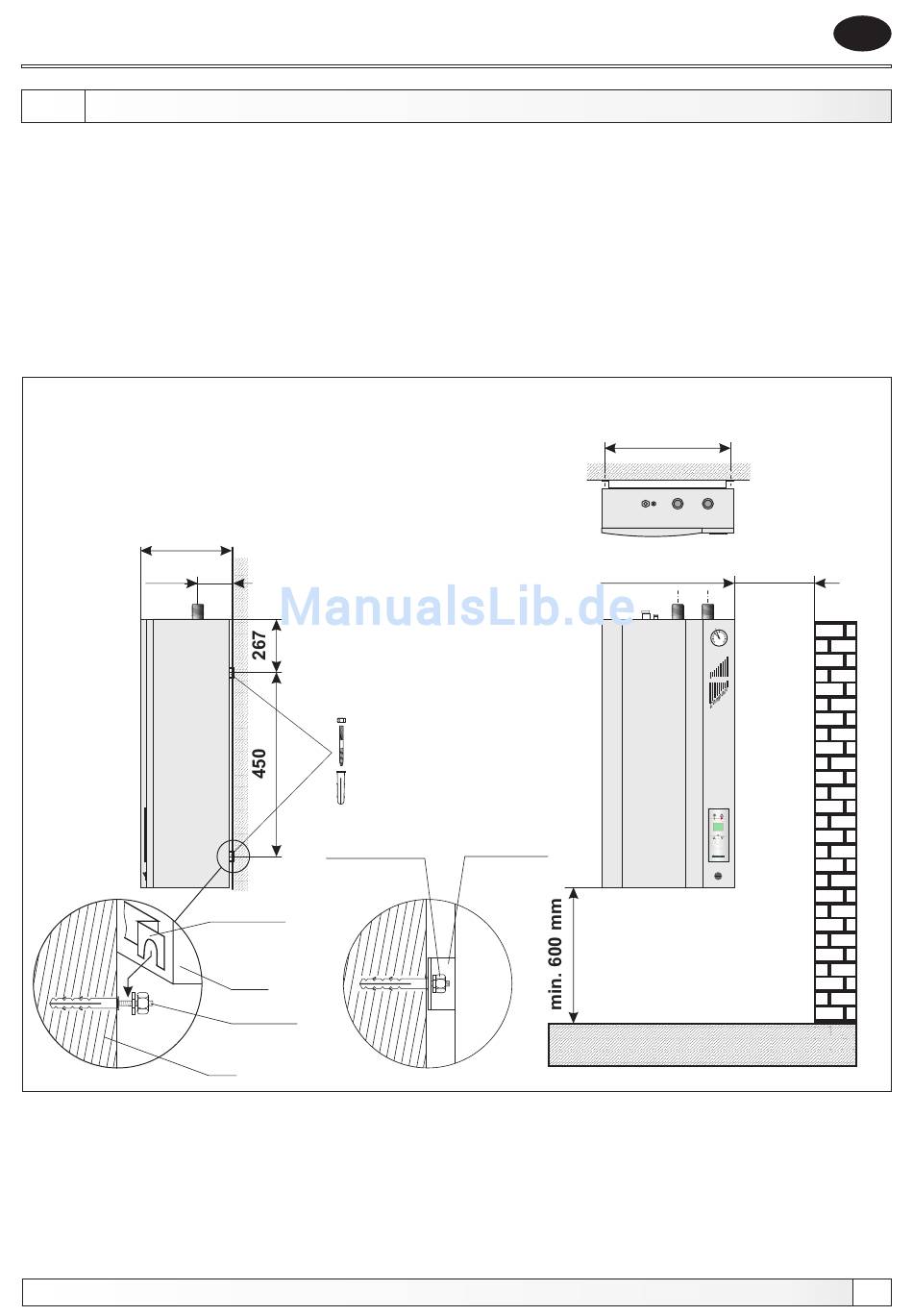

Picture 3. - Installation of the electric boiler El-Cm Compact on the wall
290
100
Technical manual El-Cm Compact
After putting the
electric boiler on
the porters,
fasten the
Boiler porter
nuts
(on the back
side of the
boiler)
Boiler
Screw M8
Wall
min. 300 mm
Boiler porter
(on the back
side of the
boiler)
388
2
1 3
0 4
bar
El-Cm
64
P
TEHNIKA GRIJANJA
1
0
EN
