EX-41016-2

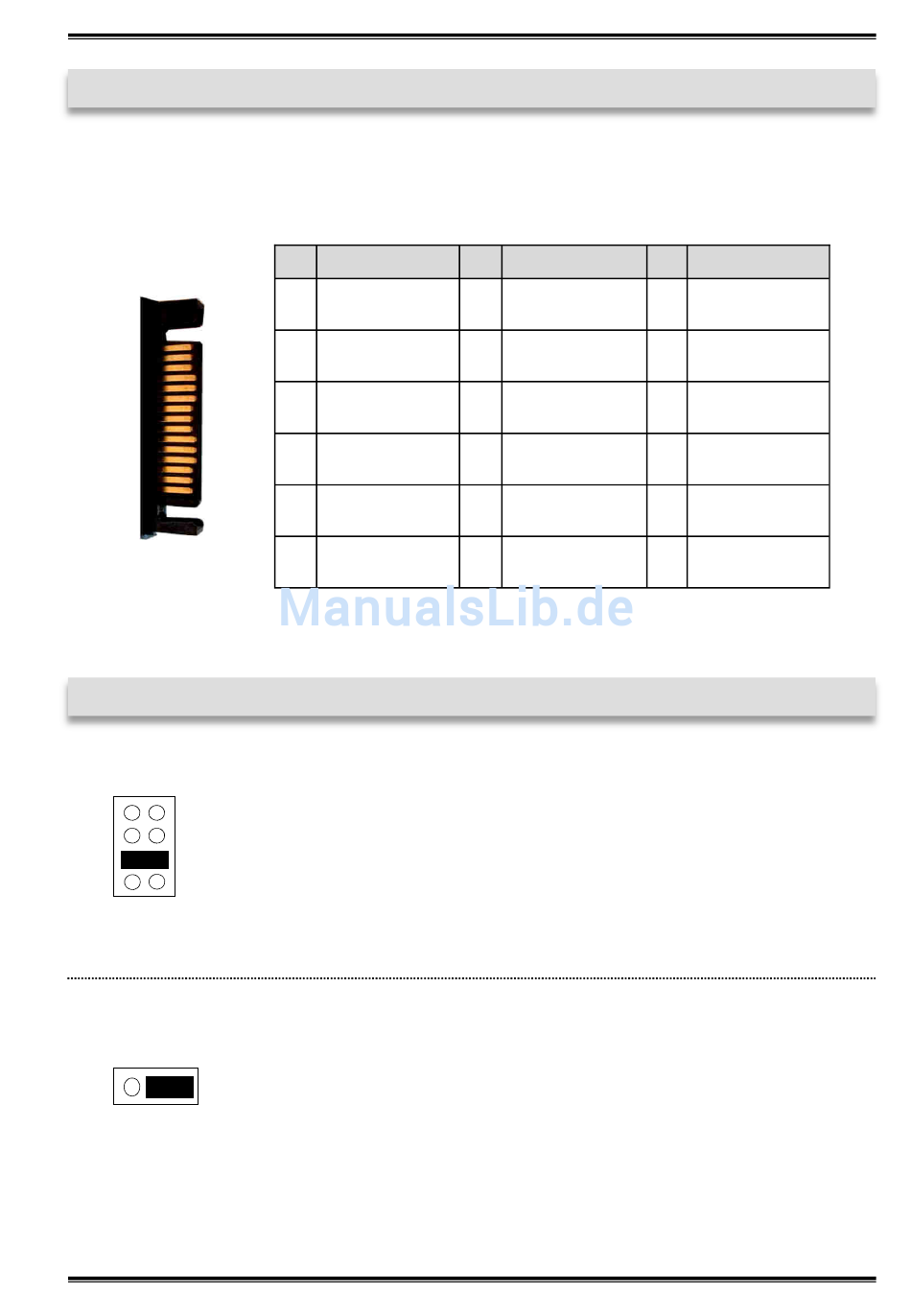

3. Layout and Connections
3.2 Connections
J3:
4. Jumper Settings
JP1:
X5
X12
I12
I5
JP4:
5V 3.3V
Pin
Assignment
1
3.3 Volt
(Orange)
2
3.3 Volt
(Orange)
3
3.3 Volt
(pre-charge)
4
Ground
(Black)
5
Ground
(Black)
6
Ground
(Black)
There are two different voltage sources (Mainboard & Power Supply).
(If the jumper JP1 set to X5 / X12 then the power connector J3 must be
connected with the PC power supply)
X5
= 5Volt from Power Supply
X12
= 12Volt from Power Supply
I12
= 12Volt from Mainboard (Factory Setting)
I5
= 5Volt from Mainboard
3.3V
= The voltage level is set to 3.3V (Factory Setting)
5V
= The voltage level is set to 5V
If your device need a higher voltage level, then set the jumper to the
position 5V.
Pin
Assignment
7
5 Volt
(pre-charge)
8
5 Volt
(Red)
9
5 Volt
(Red)
10
Ground
(Black)
11
Reserved
12
Ground
(Black)
11
English
Pin
Assignment
13
12 Volt
(pre-charge)
14
12 Volt
(Yellow)
15
12 Volt
(Yellow)
