Exsys EX-41051 Bedienungsanleitung

EX- EX - 41051 41051
EX - 41051
JUMPER SETTING & CONNECTORS:
DB9M:
Serial 9 Pin D-SUB male connector (S1):
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer s reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer s cover and the mounting screws.
DRIVER INSTALLATION :
Windows 9x/ME/2000/XP & Vista:
After starting Windows it recognizes a new PCI Controller and open the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\NETMOS\98XX" and then the directory of your oper-
ating system WIN95 WIN98 WIN98 WINME
WINXP_64 Vista32 or Vista64 into the box for the Path/Source and click at
>next/continue<. Now Windows search for the drivers in the specified directory. Follow
the hardware assistant and finish the installation. If Windows recognizes other new
devices repeat the above described steps. Attention! Restart Windows in any case
after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter compmgmt.msc and click at >OK<. In the windows
that open select >Device Manager<. Under Ports (COM and LPT) you should find
one more new PCI Ports as sample (COM3). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
Windows Server 2000/2003:
After starting Windows it recognizes a new PCI Controller and open the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\NETMOS\98XX" and then the directory of your oper-
ating system for Server 2000: WIN2000 and for Server 2003:
WINXP_64 into the box for the Path/Source and click at >next/continue<. Now
Windows search for the drivers in the specified directory. Follow the hardware assistant
and finish the installation. If Windows recognizes other new devices repeat the above
described steps. Attention! Restart Windows in any case after installing the drivers.
5
English English EX EX- - 41051 41051
English EX - 41051
DRIVER INSTALLATION :
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter compmgmt.msc and click at >OK<. In the windows
Signal Pin Signal
that open select >Device Manager<. Under Ports (COM and LPT) you should find
one more new PCI Ports as sample (COM3). If you see this or similar entries the
DTR 7 RTS
card is installed correctly.
8 CTS
CHANGE PORT NUMBER:
DSR 9 RI
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<.
Windows NT 4.0:
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter
then click >OK<. Windows NT will now start the setup program and install the driver.
Please Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click to >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< after you click to >Resource< >IRQ<. By this windows you can see >10
NmSer 0
Port<. Here you see two setting E400-E406 NmSer 0 PCI and D800-D806 NmSer 0
PCI for the serial ports and DC00-DC06 NmPar 0 PCI for the parallel port. The I/O
addresses can be change, that depends which system configuration you have. If you see
this information, the card is installed correctly.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
MS-DOS:
WIN2000 WINXP
Copy the DOS driver file from the CD (D:\IO\NETMOS\98XX\DOS\NmDosln.exe) to the
root directory on your hard disk (C:\). Modify the AUTOEXEC.BAT with the following line:
C:\NmDosln -a -r
After you reboot DOS , you can see the EX-41051 with COM3. The IRQ its set from Sys-
tem-BIOS and can t be changed.
WINXP or
D:\IO\NETMOS\98XX\WinNTMultiioDrivers.exe"
PCI <. For the parallel port don t have IRQ information. You click to >I/O-
6
English English
English

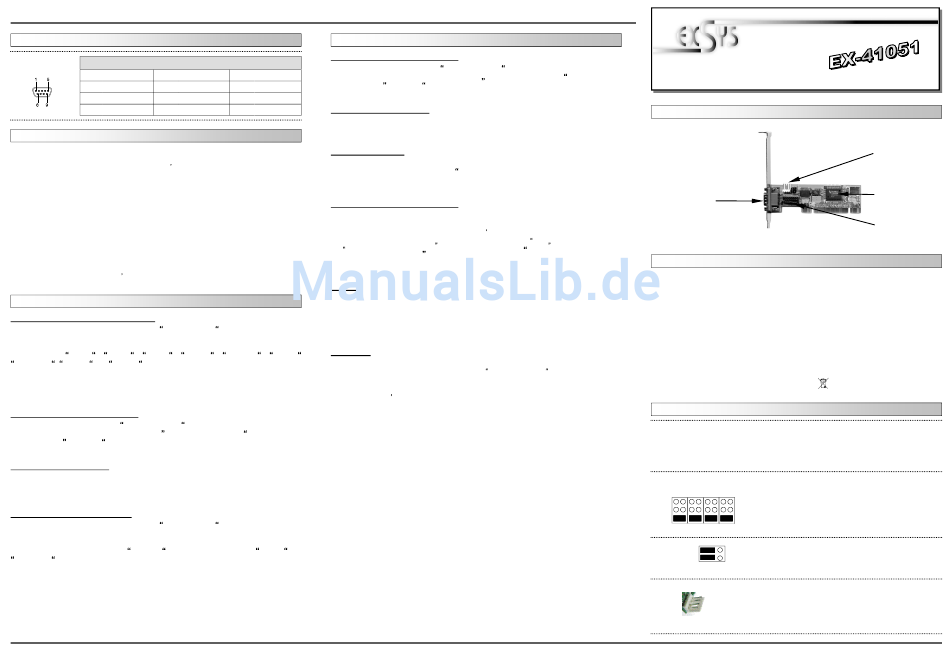

Bedienungsanleitung Bedienungsanleitung
Vers. 1.0 / 26.06.07
AUFBAU :
S1
9 Pin Buchse
Seriell Anschluss
BESCHREIBUNG & TECHNISCHE DATEN :
Die EX-41051 ist eine 32-Bit PCI Seriell RS-232 Karte mit einem seriellen FIFO
16C550 Port, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten
(z.B. Modem, Plotter usw.). Sie unterstützt den 32 und 64-Bit PCI bzw. PCI-X Bus mit 5
Volt und 3,3 Volt. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzu-
stellen, da die Einstellungen der Karte vom System (BIOS) und beim Installieren des
Betriebssystems automatisch vorgenommen werden. Es besteht bei Bedarf die Mög-
lichkeit, +5V- oder +12V auf einen von vier Pins der beiden Stecker zu legen (POS System).
Kompatibilität: PCI & PCI-X 3,3Volt & 5Volt bei 33Mhz
Betriebs Systeme: DOS/WIN 9x/ME/NT4.0/2000/XP/Server2003/Vista/(Linux v. OS)
Anschlüsse: 1 x 9 Pin Seriell D-SUB Stecker
Lieferumfang: EX-41051, Treiber CD, Deutsche Anleitung
CE
Zertifikate: / FCC / RoHS / WEEE
JUMPER EINSTELLUNG & ANSCHLÜSSE:
Mit der EX-41051 haben Sie die Möglichkeit +5V- oder +12V auf einen der folgenden vier Pins,
der Stecker S1 zu konfigurieren :
Achtung !! Nur konfigurieren wenn für das Peripheriegerät auch +5Volt oder +12Volt
gebraucht wird. Für normale Anwendungen, Jumper nicht verändern!
JP3: Achtung!! Es darf pro Pin immer nur eine Spannung einge-
(S1) stellt werden!
+5V
+5V: +5V auf den jeweiligen Pin des Anschlusses
+12V
+12V: +12V auf den jeweiligen Pin des Anschlusses
Dis
DIS: Kein Strom auf den Anschlüssen (Standard)
Pin 1 Pin 8 Pin 9 Pin 4
+5V
JP2:
JP2 gesetzt auf PCI = +5 oder +12V kommt vom PCI BUS
+12V
JP2 gesetzt auf AUX = +5 oder +12V kommt vom PC Netzteil
PCI AUX
J2: Wenn JP2 auf AUX gestellt ist muss J2 mit dem Stroman-
1 +5V
schluss vom PC Netzteil verbunden werden!
2 GND
Bitte auf die richtige Polarität achten!
3 GND
4 +12V Achtung! Stecker nie bei eingeschaltetem PC ein oder
ausstecken!
Anschluss vom
Netzteil für +5V oder
+12V Spannung
Seriell Chip 16C550
mit 16-Byte Buffer
und PCI-Bridge
+5V oder +12V
einstellbar auf den
9 Pin Stecker
DE97424562 / WHQL
